Medical device Co2 Laser HS-411
You are here: Home » Devices » Fractional Laser » Medical device Co2 Laser HS-411

Medical device Co2 Laser HS-411

Model: HS-411
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, CE0197, US FDA
Function: Skin resurfacing, wrinkles, pigmented nevus, scar repair, vaginal care
Operation system: ARM-A9(Android/OS)
Widely use: Hospitals, medical centers, dermatologists and plastic surgery center
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:

PRODUCT VEDIO




INTRODUCTION

APPLICATION

Skin resurfacing (Rough skin, coarse pores, dark skin, light damage…)

● Wrinkles (Crow's feet, head lines, frown line, Decree lines)

● Pigmented nevus, epidermal pigmentation (freckles, etc.), epidermis (all kinds of warts) cutting

● Scar Repair (acne scar, hypertrophic scar, burn scar, sunken scar, etc.)

● Other applications (syringoma, condyloma, seborrheic, etc.)

● Vaginal care (Vaginal wall tightening, collagen remodeling,

thicker and more resilient, labium whitening)


PRINCIPLE

Co2 laser system generate a 10,600nm wavelength, which is absorbed by water in the tissue. The laser energy heats up the water until it reaches a boiling point causing the evaporation of the affected tissue.

Some heat is absorbed by tissue adjacent to the ablated target area, causing tissue coagulation which induces hemostasis (the cessation of bleeding) as well as thermal stimulation of deep skin layers, which induces fibroblast stimulation and neocollagenesis (the formation of new collagen).


        fractional co2 laser principle


ADVANTAGE

The CO2 laser HS-411 is produced by Apolomed, which is China's top medical aesthetic laser manufacturer.   Operator can easily select the exact pulse energy,  density,  pulse width and scan area needed to get excellent treatments for ideal result.


                 fractional C02 laser


USA RF TUBE laser emitter ensures longer lifetime and best energy distribution. 635nm infrared red aimming beam supported Different fractional size selectable and drawing function supported.

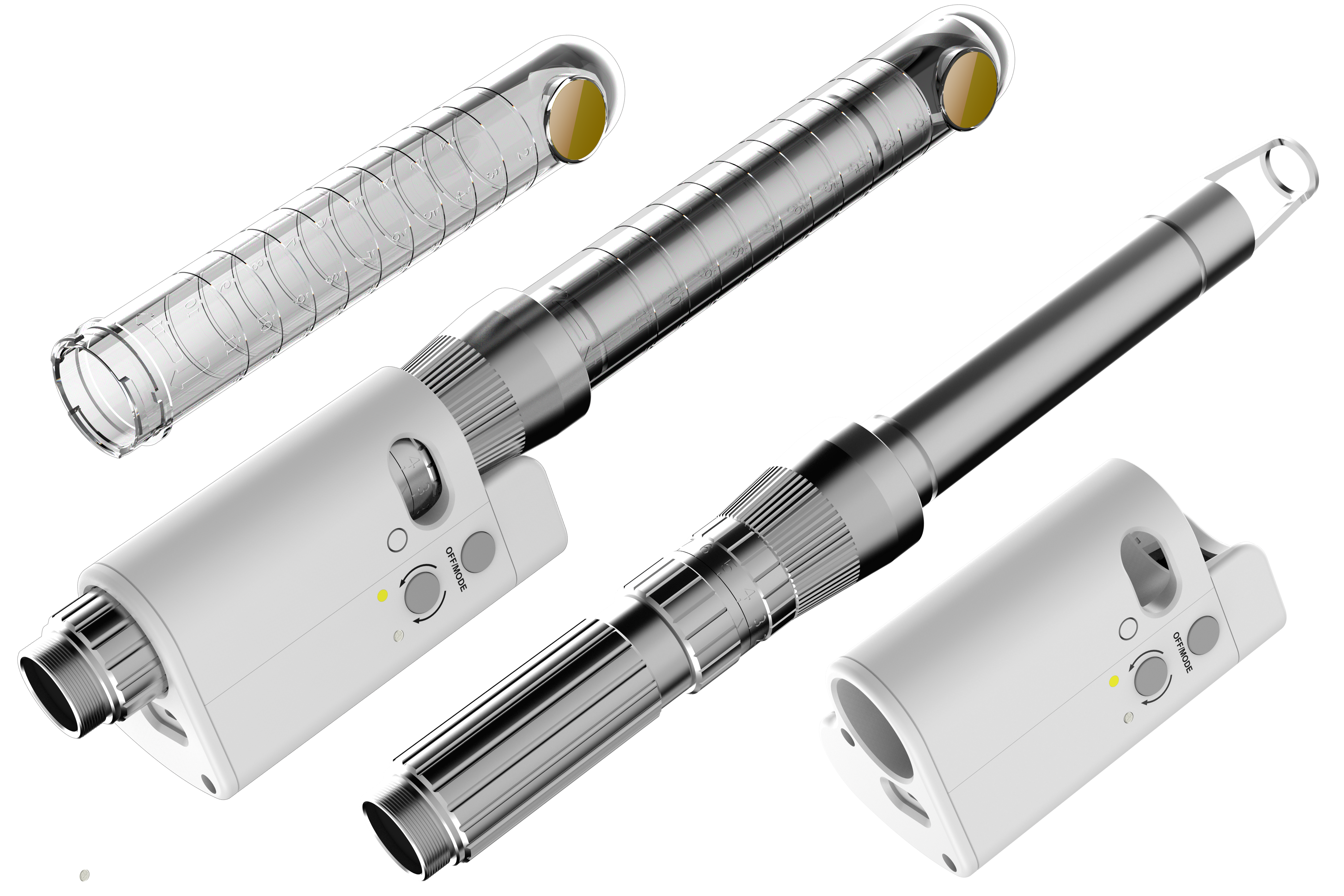

                fractional C02 laser handpiece


ULTRA SHORT PULSE duration makes safety & comfortable.


               c02 laser screen 3   C02 laser screen 2   C02 laser screen 1


SMART OPERATOR INTERFACE

Irregualr treatment areas can be treated precisely and easily by using interface fingertip contrl. uDrawing function for targeted area's intensive treatment.


                              C02 laser screen 4     C02 laser screen 5


SPECIFICATION


Wavelength

10600nm

Laser medium

RF sealed-off CO2 laser

Function mode

Fractional/vaginal care

Laser Power

35W

Energy

1~300mJ/dot

Density

25~3025 PPA/cm² (12 level)

Scan area

20*20mm

Shape

Square,hexagon,triangular,circular,freehand

Pattern

Array,Random

Aiming beam

Diode 655nm(Red), adjustable brightness

Operate interface

8" True color touch screen

Cooling system

Advanced air cooling system

Power supply

AC 100~240V, 50/60Hz

Dimension

50*45*113cm(L*W*H)

Weight

55kgs
