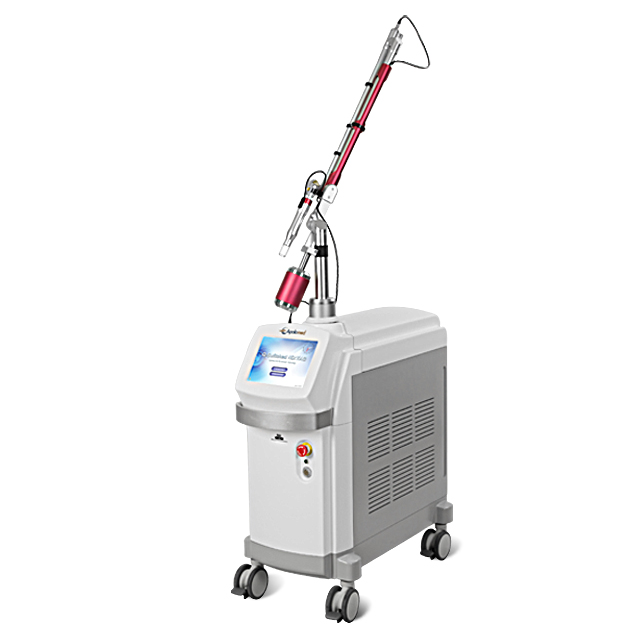

EO Q-switched Nd YAG laser HS-290, pulse width is only 6ns, 1064nm laser single pulse energy up to 2000mJ, instant emission of laser energy to break the color base of the pathological tissue, namely photoexplosion: the accumulated energy of the laser is emitted instantly, The laser with wavelength of 1064&532nm is applied to the target tissue instantaneously within a very short time (6ns), and the corresponding color base absorbs light energy and expands with heat and explodes and breaks up instantly. Part of the color base (epidermis) breaks down and is discharged from the epidermis, while part of the color base (in the tissue below the epidermis) breaks down into fine particles that can be phagocytosed by macrophages, which are digested by macrophages and then circulates through lymph Out of the body, the color base of the diseased tissue will gradually decrease to disappear, while the surrounding normal tissue does not absorb or rarely absorb the laser wavelength of 1064&532nm, so there is no need to rest after surgery. The electro-optical Q-switched laser is continuously adjustable due to its single pulse energy so that doctors can obtain arbitrary energy density (spot area is constant) for clinical use.

Application of EO Q-Switch Nd:YAG laser machine

Advantages of EO Q-Switch Nd:YAG laser machine

1.Max.2000mJ EO Q-Switch mode for yag laser tattoo removal treatment
2.Max.2800mJ free running mode for yag laser skin rejuvenation
3.Pulse width < 7ns
4.Repetition rate max.10HZ
5.Luxry 9.7" true color touch screen with multi-languages available
6.IC card and USB function supported
7.Copper radiator cooling system and water filter to protect the system
8.Modulariged design with metal chassis. Easy for maintenance.
9.Operations Safety: water flow and water level control system keeps laser machine in safe condition.
