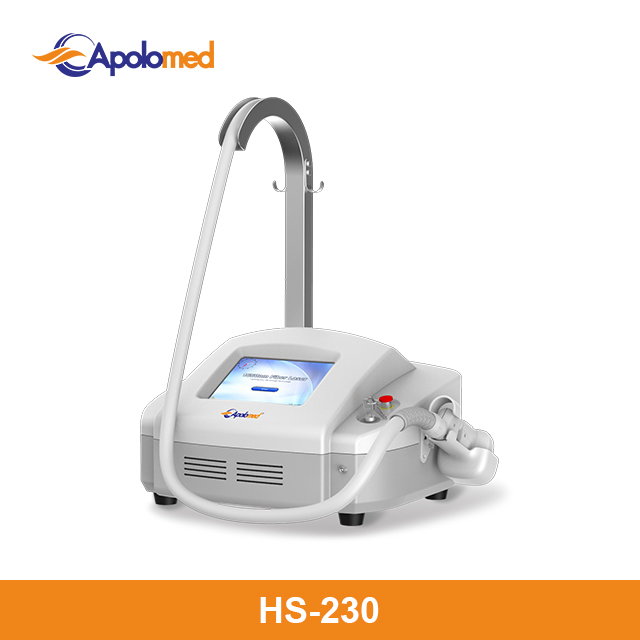

Erbium Fiber Laser HS-230
You are here: Home » Devices » Erbium Fiber Laser HS-230

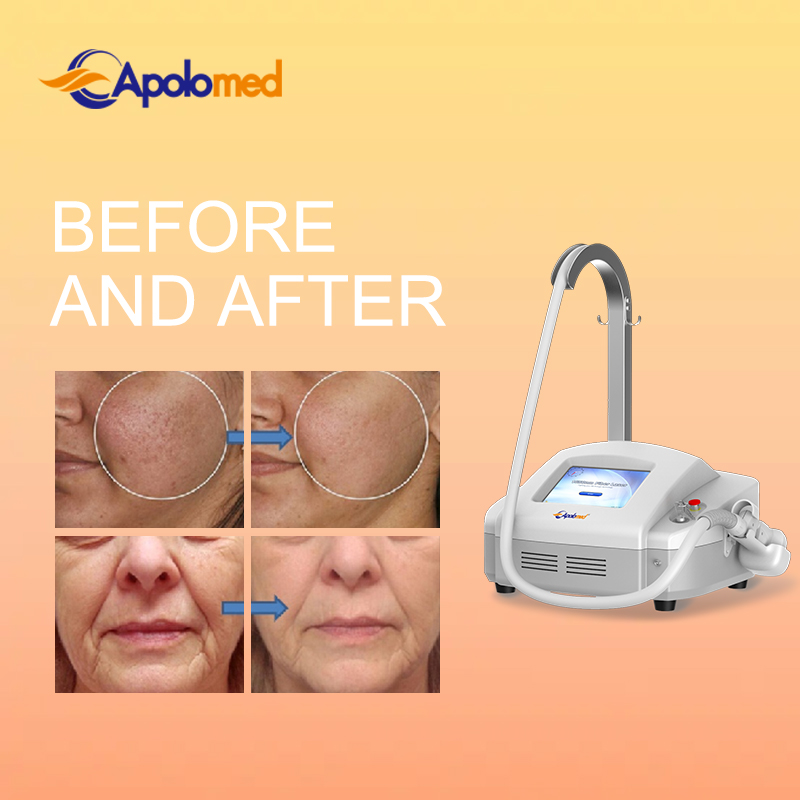

Erbium Fiber Laser HS-230

Model: HS-230
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, CE0197
Function: Skin rejuvenation, wrinkle removal, acne scar removal, skin resurfacing, stretch mark removal
Operation system: ARM-A9(Android/OS)
Widely use: Hospitals, medical centers, dermatologists and plastic surgery center
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:
  • HS-230

  • Apolomed

PRODUCT VEDIO




INTRODUCTION

APPLICATION

Skin rejuvenation

Skin toning

Wrinkle removal

Acne scar removal

Skin resurfacing

Stretch mark removal


PRINCIPLE

1550nm Erbium fiber laser is splitted into numbers of microscopic beams to the skin, known as microscopic thermal zone.

The fractionized beams not only trigger the healing process of the skin, but also keep the issues around the coagulation zone. The treatment removes old epidermal pigmented cells and penetrates deep into the dermis, remolding Collagen and get the skin regeneration. Dermis fiber thickens, micro wound heals quickly, skin restores smooth after several treatments.

 The heat of laser only passes deeply through the factional damaged area.  This allows the skin to heal much faster than if the whole area was treated. These driver the better clinical results and make less downtime and side effect.

         HS-411-2

ADVANTAGE

Apolomed HS-230 is latest 1550n non-ablative scanning for laser skin resurfacing and hypotrophic scar revision, including acne scars and striae. The introduction of a scanning fibre laser is a major innovation that has a number of advantages:

  • Larger treatment target area

  • More intense treatment with improved patient comfort

  • Finer control of treatment parameters

  • Much less risk of pigment changes

  • Precise and stable treatment

  • Wider parameter range without the need for expensive accessories


                       fractional laser

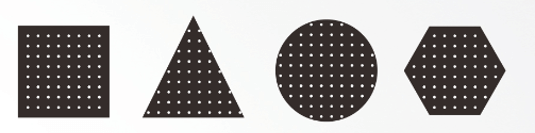

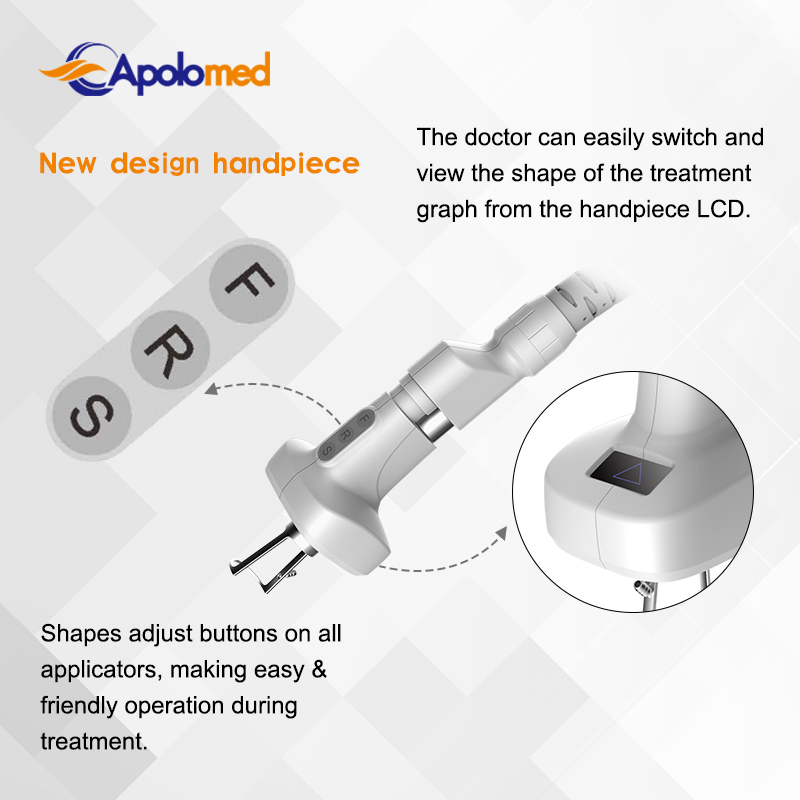

DIFFERENT SHAPES FOR TREATMENT

  • Total 4 different shapes for selction with each array can be adjusted in both X and Y axes independently to produce a virtually infinite range of shapes and sizes to choose from.

  • Each array can be adjusted in both X and Y axes independently to produce a virtually infinite range of shapes and sizes to choose from. The clever part is the array spacing remains constant and is independent of scan area shape and size.


           HS-411-3

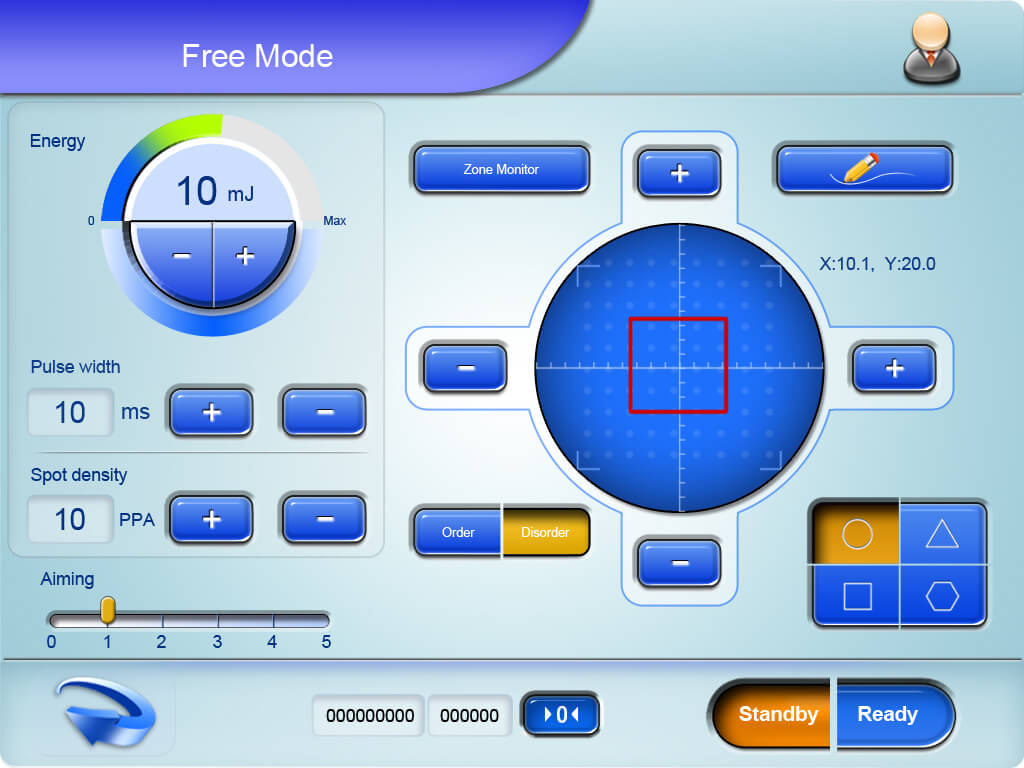

SCANNING SETS YOU FREE

  • Up to 120mJ/ dot

  • Max. 20 x 20mm scan area

  • 25 ~ 3025 microbeams/cm2 adjustable for accurate treatment

  •  Treat a full 20mm x 20mm square or 400 sq mm in a single scan.

  • Large Scan Area – By delivering one mtz at a time the power requirement is also reduced and combined with the reduction in bulk heating we are able to treat a much larger area in a single scan.  Most current generation machines are limited to about 1cm x 1cm or 100 sq mm.


           1-3C00GAI-1

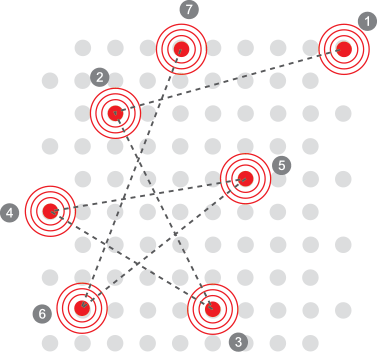

UNIQUE RANDOM OPERATE MODE

Laser micro-beam in alternative direction, it allows the treated micro zone to cool and delivers multiple clinical advantages with less pain and downtime, this help to avoid blistering, swelling and erythema. Most important, it will decrease risk of post-inflammatory pigmentation and other side effects that may occur after laser treatments.


                         laser-rsbs


ULTIMATE FLEXIBILITY WITH HAND DRAW FUNCTION

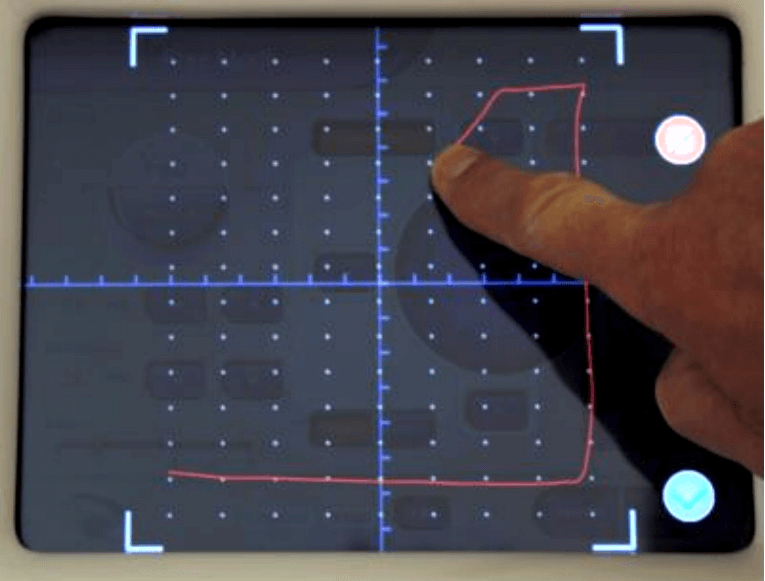

APolmed HS-230 is a fractional scanning fibre Laser. It is A9 Android operate system, which allows hand draw any shape you wish and translate to the target, making precise and effective treatment.

The freedom to draw any shape you wish and translate that to the target, sets a new standard in treatment precision.


               HS-411-4

SPECIFICATION

Wavelength

1550nm

Laser power

15W

Laser output

1~120 mJ/dot

Density

25~3025 PPA/cm2 (12level)

Scan area

20x20mm

Pulse width

1~20ms/dot

Operate mode

Array, Random

Operate interface

9.7" true color touch screen

Cooling System

Advanced air cooling system

Power supply

AC100V or 230V, 50/60HZ

Dimension

52x44x32cm (L*W*H)

Weight

20Kgs
