Principle

Follow the principle of photodynamics, treat inflammatory acne, repair aging skin and relieve sunburn skin, without any harm to the skin and discomfort. The treatment system illuminates the skin with high-purity, high-power densities of red, blue, green, and yellow light, using continuous or pulsed light to alter the cellular structure.

Red light 640nm:

The use of 640nm LED makes muscle and skin cells grow at 5 times the normal rate, promotes the cell growth process, enhances the growth of new collagen, thickens and reorganizes the dermal structure to form red, delicate, elastic skin, and promotes wound healing.

Blue light 415nm:

The LED with a wavelength of 415nm can activate the production of endogenous porphyrin in acne, generate toxic monomorphic oxygen, kill propionibacterium in acne, quickly eliminate acne pustula and treat acne skin.

Yellow light 630+520nm:

630+520nm LED is adopted, which has similar effect with red light, and can play the role of drainage and lymphatic clearing.

Green light 520nm:

Using 520nm LED, it can achieve whitening and lightening effect by penetrating into the base layer of skin.

Main function

Treatment of inflammatory acne

Beauty rejuvenation

Effect

Non-invasive, non-exfoliating, non-burning, the patient feels very comfortable during treatment;

Suitable for all skin types, safe and effective, no side effects;

Patients do not need special care after treatment;

The operation is very simple and fast, medical staff can be competent after simple training.

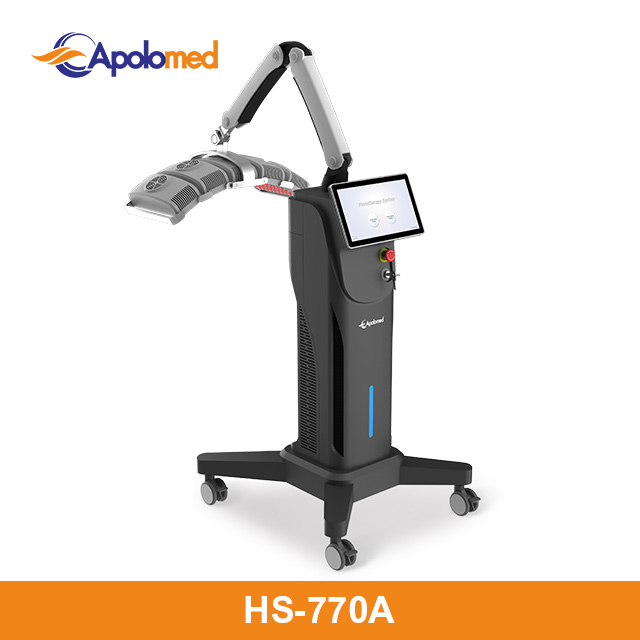

PDT LED therapy machine HS-770 characteristics

1. The 1.8 "color touch screen is available in professional mode and standard mode

2. Five panel are optional to meet the needs of face/body and other parts of the treatment

3. PDT photopower contains red light, green light, blue light, yellow light four basic light sources and infrared light, a wide range of treatment, suitable for any population, treatment area is large, short time, has a strong repair effect

4. Safe, painless, non-invasive, no obvious thermal effect, no burn risk, simple operation, no need for professional operation

5. No consumables, long service life, can work continuously for 24 hours, carry out more projects, with powerful practical 1functions

Apolomed HS-770 Photodynamic Therapy (PDT) system: LED combo with 4 wavelength in one (Red/Green/Blue/NIR) LED bubble; high power output with 3W of each wavelength for total 12W in each LED bubble.  The indication is covered anti-aging skin solution, body sculpture, accelerate blood and lymph circulation, wound healing and pain relief.

COMPUTER controlled automatically up and down articulated arm to adjust best treatment position

CHANAGE 5color on screen without change LED panel

 MOUNTED on a wheeled column

5 LEVEL ENERGY adjustable for best treatment experience

11.6'' TRUE COLOR one finger touch screen

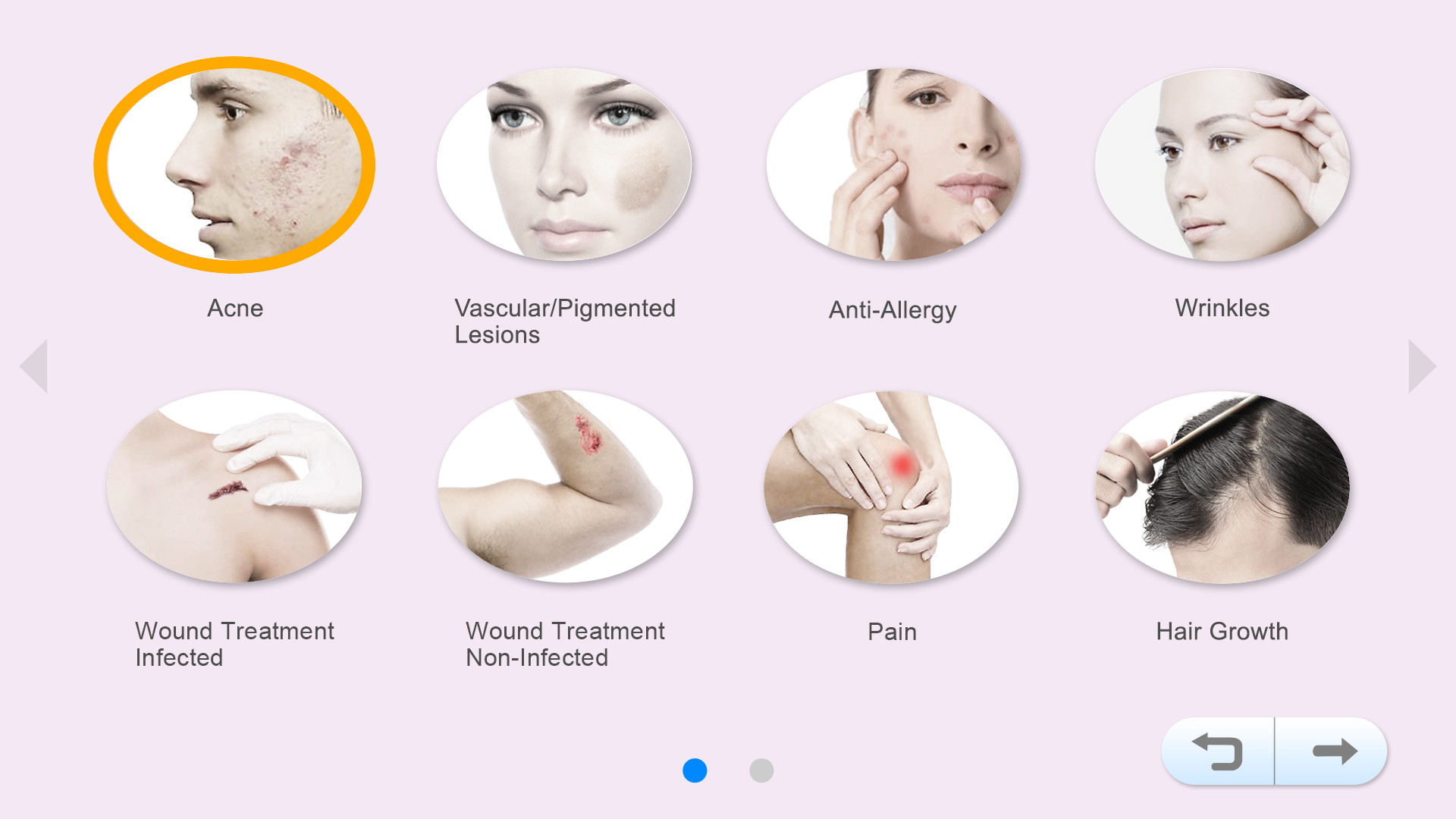

MULTI-FACIAL & BODY treatment program supported

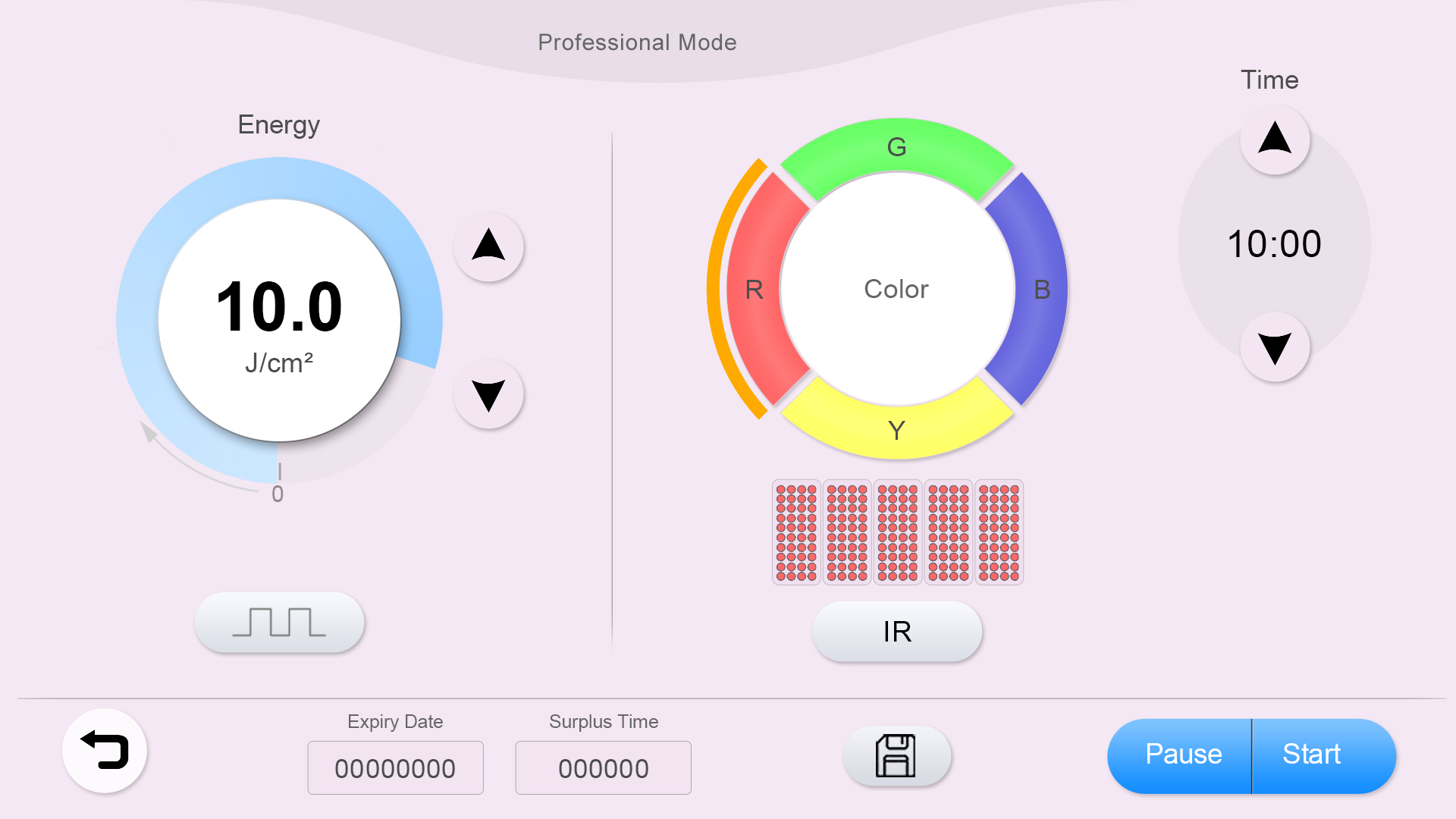

STANDARD MODE with preset treatment procedure and time settting;  professional mode enable treatment color and parameter adjust freely Treatment time set freely (about 20 minutes).

FEATURE OF OUR PDT LED EQUIPMENT

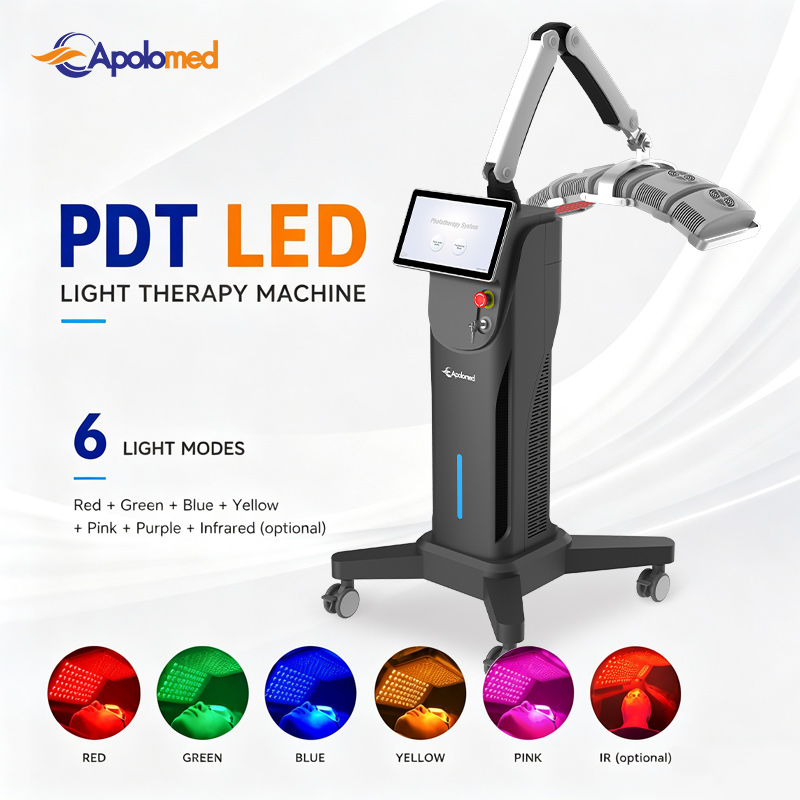

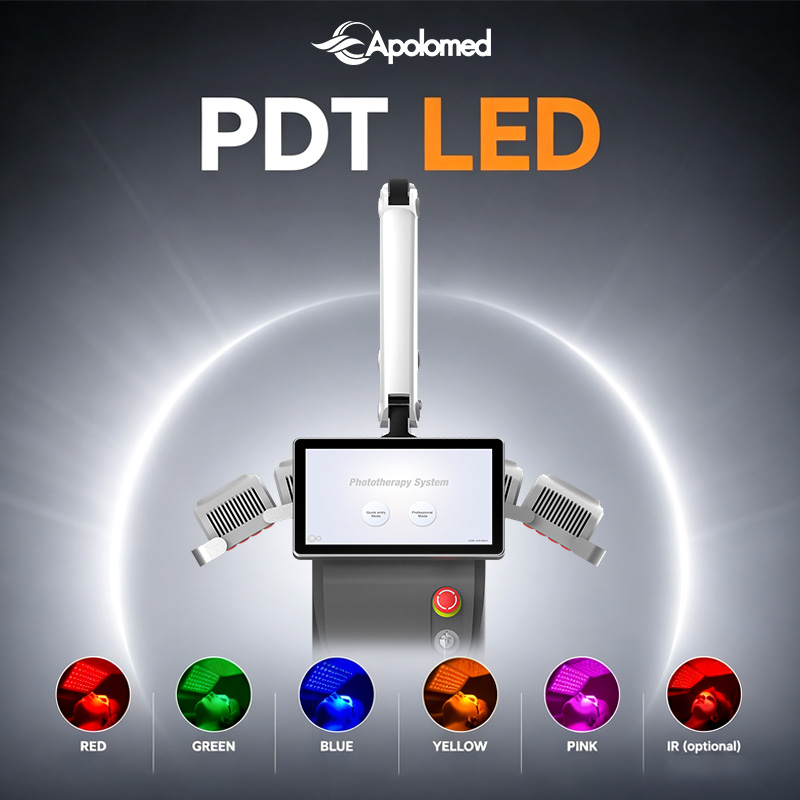

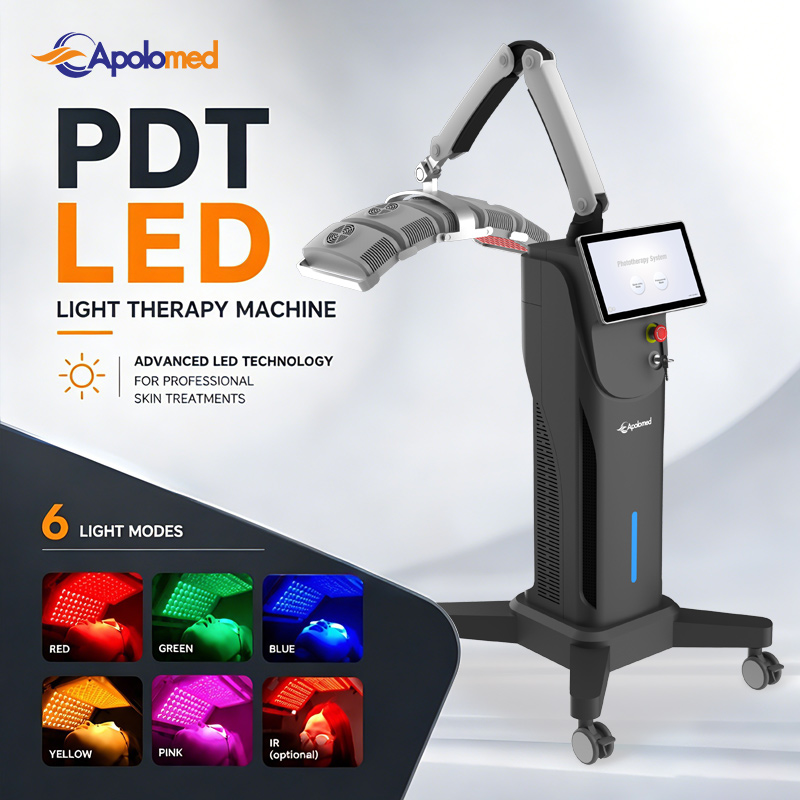

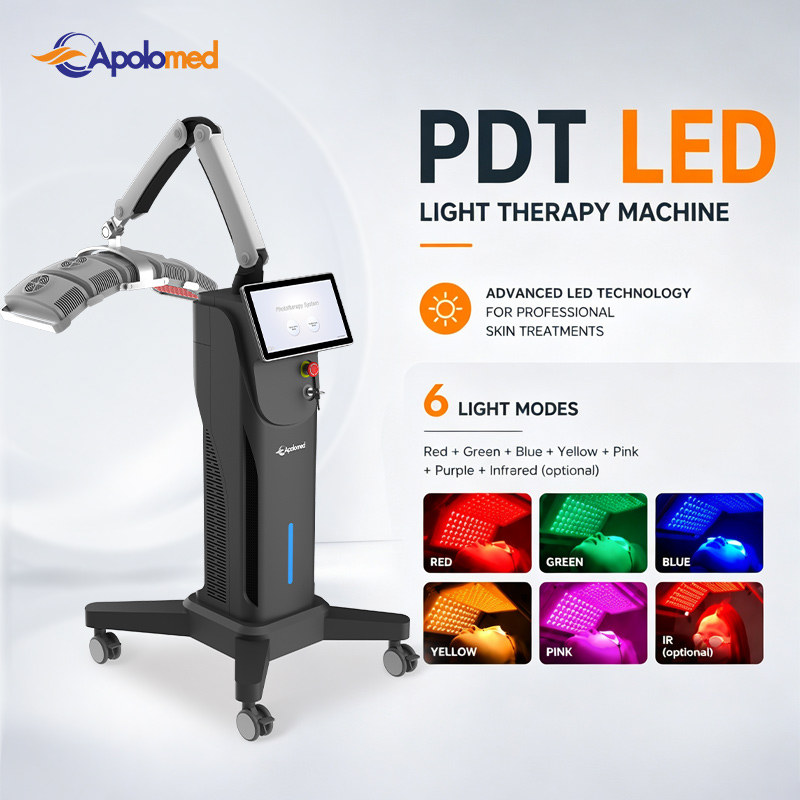

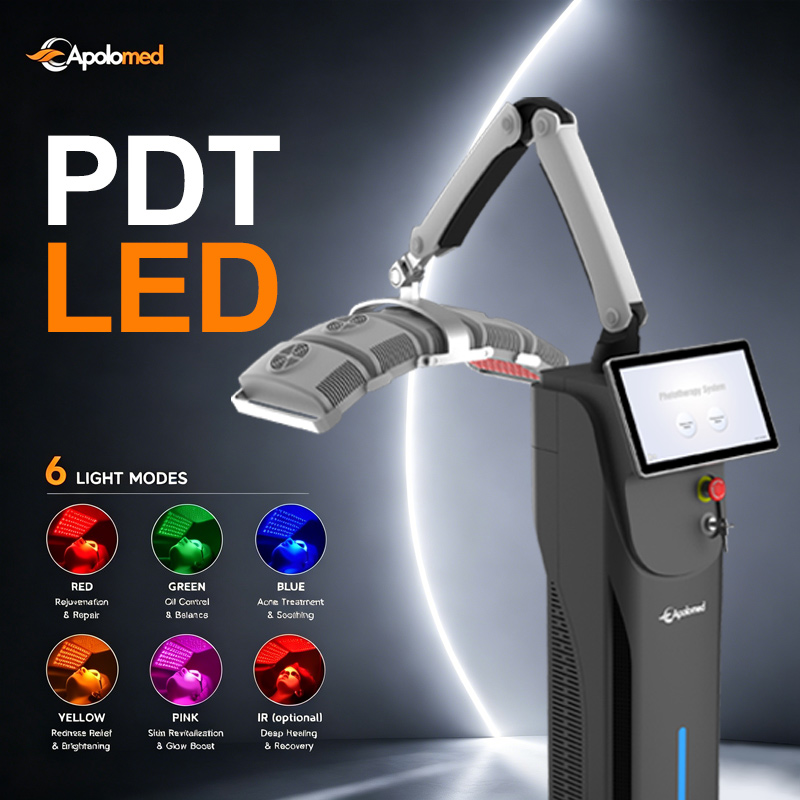

• Multiple light sources (five LED colors + IR) to meet various clinical needs.

• Telescopic cantilever system adjusts the lamp head's angle and height as needed.

• Precise targeting: photosensitizers preferentially accumulate in diseased tissue, minimizing damage to normal cells

• Fewer side effects: short-term redness, swelling, or scabbing are common and usually subside within 2-3 days.

• Provides continuous and pulse irradiation modes to meet different clinical requirements.

• 11.6" touch high-definition screen with a newly upgraded GUI design

Light source	PDT LED
Color	Red	Green	Blue	Yellow	Infrared
Wavelength (nm)	660	520	420	595	850
Output density (mW/cm2)	280	80	180	50	140
Lamp type	Multiple Lamp type(6 LED colors light /lamp)
Number of SLD	5 panels: 200pcs
Lamp power	3W per LED color light; 18W per lamp
Operate mode	Professional mode & Treatment mode
Operate interface	11.6'' True color touch screen
Power supply	AC 120~240V, 50/60Hz
Dimension	55*52*145cm (L*W*H)
Weight	62Kgs
