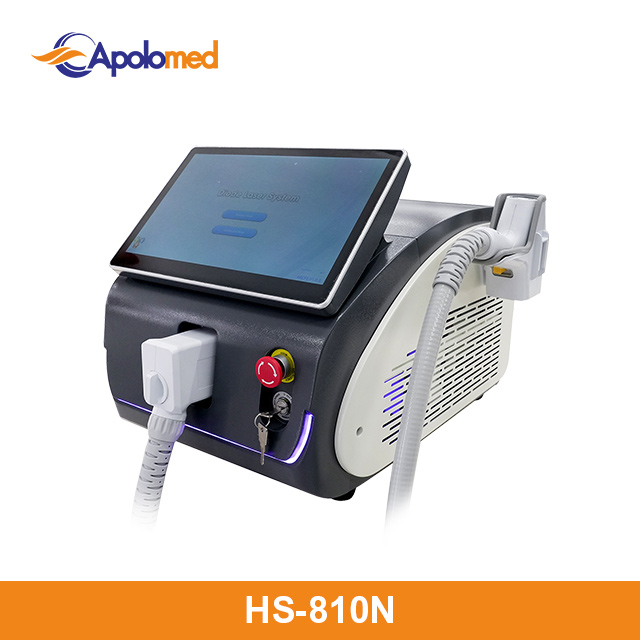

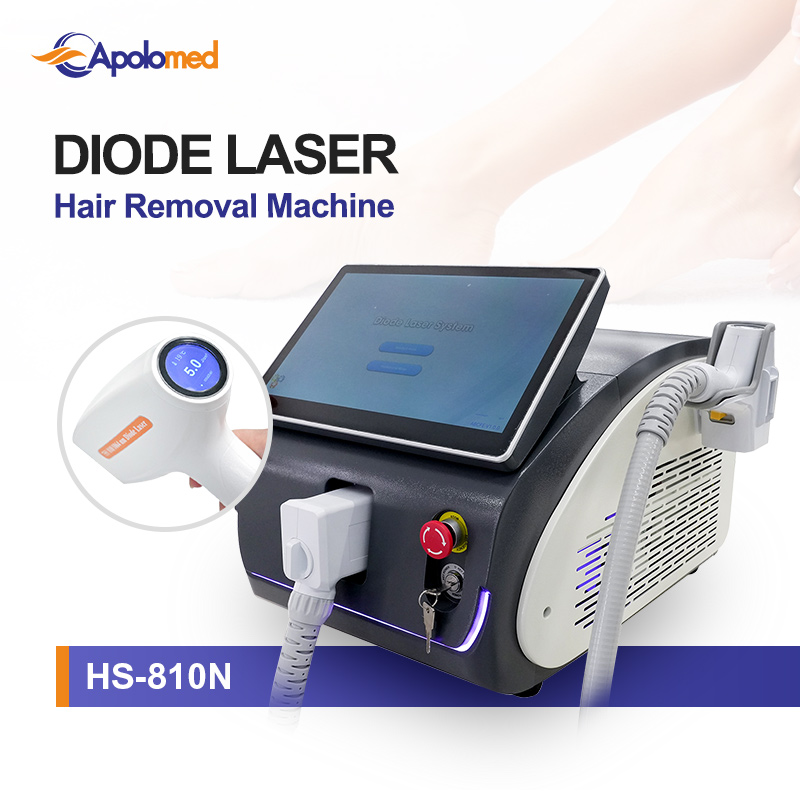

Portable diode laser hair removal Tuv medical CE & USA FDA approved

Diode Laser Hair Removal Technology & Mechanism

810nm Single Wavelength Option

The HS-810N diode laser system offers an 810nm wavelength configuration, a widely used wavelength for hair removal procedures. The 810nm light penetrates the dermis to target melanin in hair follicles, generating thermal energy that disrupts follicle function. This wavelength balances depth of penetration with melanin absorption for general hair removal applications.

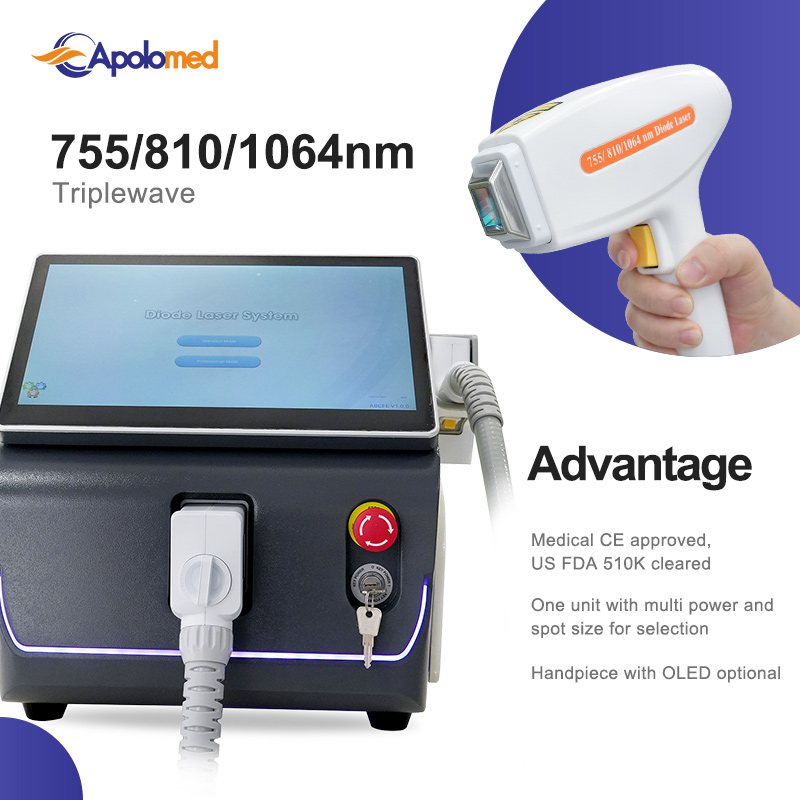

Dual & Triple Wavelength Configurations

The system is available in dual-wavelength (755nm + 810nm) and triple-wavelength (755nm + 810nm + 1064nm) configurations. The 755nm wavelength targets superficial and fine hair with higher melanin absorption at shallower depths. The 1064nm wavelength reaches deeper tissue layers and may be used on darker skin types due to lower epidermal melanin absorption. Combining wavelengths in a single handpiece allows practitioners to address a broader range of hair types and skin tones.

Selective Photothermolysis Principle

Diode laser hair removal operates on the principle of selective photothermolysis. Laser energy is preferentially absorbed by melanin in the hair follicle and bulb, converting light to heat. When sufficient thermal energy reaches the follicle, it impairs the hair growth cycle. The surrounding epidermis is protected through contact cooling, reducing the risk of adverse effects during treatment.

Clinical Applications for Aesthetic Businesses

Permanent Hair Reduction Across Skin Types

The diode laser system is designed for hair reduction treatments across multiple body areas including the face, underarms, chest, back, arms, legs, and bikini line. The multi-wavelength configurations enable practitioners to treat clients with varying hair colors, textures, and skin tones within the Fitzpatrick scale range supported by the device specifications.

Skin Rejuvenation Treatments

Beyond hair removal, the system supports skin rejuvenation procedures. The laser energy can stimulate dermal collagen production, contributing to improved skin texture and reduced appearance of fine lines. This dual-function capability allows commercial aesthetic practices to offer multiple service categories using a single platform.

System Performance & Operational Features

Power Output & Energy Density

The HS-810N is available in 1600W and 3000W power configurations. The 1600W version delivers energy density up to 72J/cm², while the 3000W version provides up to 50J/cm² with larger spot size options. Pulse width is adjustable from 1ms to 200ms, allowing practitioners to match pulse duration to hair thickness and treatment goals.

Spot Size Options & Repetition Rate

Multiple spot sizes are available depending on the power configuration: 12×14mm and 12×30mm for the 1600W model; 6mm, 12×12mm, 12×25mm, and 12×35mm for the 3000W model. The repetition rate ranges from 1Hz to 15Hz, supporting in-motion treatment techniques that cover large body areas efficiently for high-volume commercial operations.

Sapphire Contact Cooling System

The handpiece incorporates a sapphire contact cooling system with a temperature range of -4°C to 4°C. This cooling mechanism lowers epidermal temperature during treatment, protecting the skin surface while the laser energy targets deeper follicular structures. The cooling system supports continuous operation during extended treatment sessions.

Touchscreen Interface with Dual Operation Modes

The system features a 15.6-inch true color touchscreen interface with two operation modes: Simple mode with preset parameters for common treatment scenarios, and Professional mode with full parameter customization for experienced practitioners. The interface runs on an ARM-A9 platform with an Android-based operating system.

Regulatory Certifications & Quality Standards

Medical CE 0197 Certification

The HS-810N holds Medical CE certification under Notified Body 0197, demonstrating compliance with European medical device safety and performance requirements. This certification supports market access for commercial procurement across the European Economic Area.

US FDA 510(k) Clearance

The device has received US FDA 510(k) clearance, indicating that it has been determined to be substantially equivalent to a legally marketed predicate device. FDA 510(k) clearance (K200118) supports regulatory compliance for practices operating in the United States.

ISO 13485 Quality Management System

The manufacturing facility operates under ISO 13485 certification, an international quality management standard specific to medical devices. This certification covers design, development, production, and quality control processes throughout the product lifecycle.

Technical Specifications

FAQ

What wavelength configuration should I choose?

The optimal configuration depends on your client demographics. Single-wavelength 810nm suits practices primarily serving average skin and hair types. Dual or triple wavelength configurations serve a broader client base including finer hair, darker skin tones, and deeper follicles. Commercial operations with diverse client populations typically benefit from multi-wavelength systems.

How does the sapphire cooling system protect the epidermis?

The sapphire contact cooling plate maintains a temperature between -4°C and 4°C during treatment. It precools the skin surface before each laser pulse and maintains cooling during and after the pulse, reducing epidermal temperature rise. This mechanism lowers the risk of epidermal injury and may improve treatment comfort.

What is the expected service life of the laser handpiece?

The laser module is designed for extended service life under normal operating conditions. Actual handpiece longevity depends on treatment parameters, daily usage hours, cooling system maintenance, and environmental conditions. The manufacturer provides replacement handpieces and module servicing as part of after-sales support.

Is the device suitable for all skin types?

The triple-wavelength configuration supports treatment across a range of Fitzpatrick skin types. The 1064nm wavelength option provides lower melanin absorption at the epidermal level, which may be used for darker skin tones with appropriate parameter settings. Practitioners should always perform patch tests and follow treatment protocols for each skin type.

What after-sales support is included?

After-sales support includes technical assistance, replacement parts availability, maintenance guidance, and software updates. The standard warranty covers manufacturing defects in materials and workmanship. Extended service packages, training, and on-site support may be available as add-on options for commercial procurement contracts.
