INTRODUCTION
The effective penetration depth of 808nm wavelength can reach the target tissue (dermal papilla), and the appropriate pulse duration can ensure sufficient thermal damage to the target tissue while the surrounding tissue is almost unaffected, so as to make the hair fall off and lose the ability to regenerate, so as to achieve the purpose of permanent hair removal.
The diode laser selects the appropriate wavelength, energy density, and pulse width for hair removal based on the skin type and hair depth. Generally speaking, the skin color is darker, the energy density is lower, the pulse width is larger, the skin is whiter, the hair color is lighter, usually choose higher energy, because their hair contains less melanin.
Brief Description
• Multi languages supported, meets the requirements of global market
• User friendly touchable operate interface with standard mode and professional mode
• Interlock design ensures the safety treatment environment
• Modularized design for convenient maintenance
• IC card management design provides more business modes ( ie. member,rental.... )
ADVANTAGE
Medical TUV CE0197 approved
USA FDA 510k cleared
1. Simple and convenient user interface.
2. Meticulous treatment can be performed by setting various options.
3. Application of emergency switch, trigger mobile phone design.
4. The larger size of the laser transmitter, can be faster treatment.
5. Large spot size, increase the spot size to 12mm*30mm, shorten the processing time.
6. The chiller - tip contact cooling system improves the safety of the epidemic prevention layer, has a strong cooling capacity, can maintain a stable cooling temperature.
SPECIFICATION

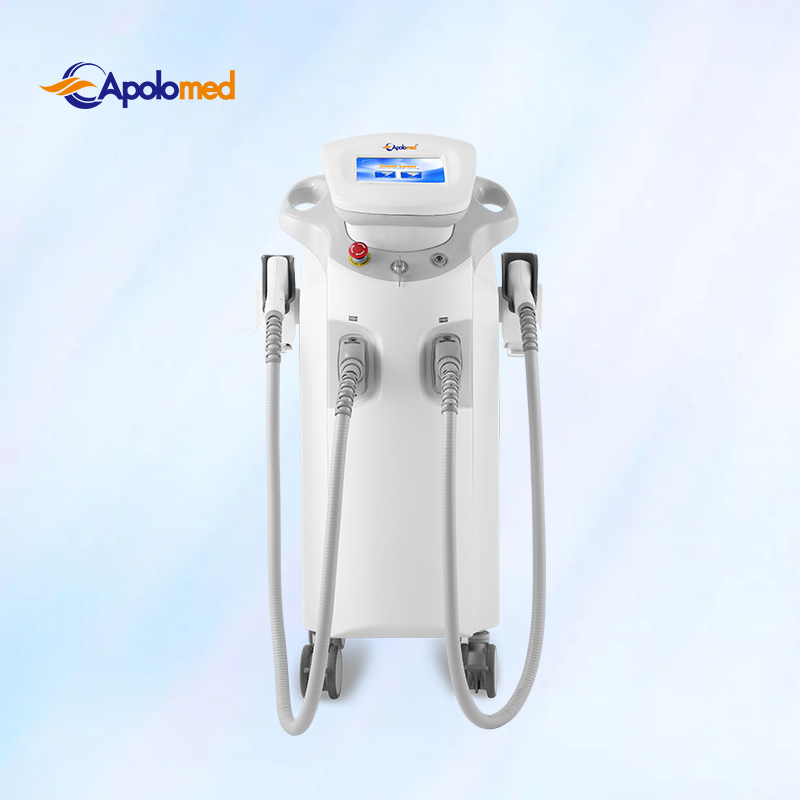

Technical specifications of 808 nm Diode Laser Beauty Machine for Hair Removal in Shanghai Apolo
Wavelength: | 808nm diode laser |
Hand-piece qty: | 1 pc |
Spot size: | 12*18mm;12*30mm |
Frequency: | 1~10Hz |
Energy Density: | 1~110J/cm2 |
Sapphire contact cooling: | -4~4°C |
Laser output power: | 800W/1200W |
Operate Interface: | 8” True color TFT touch screen |

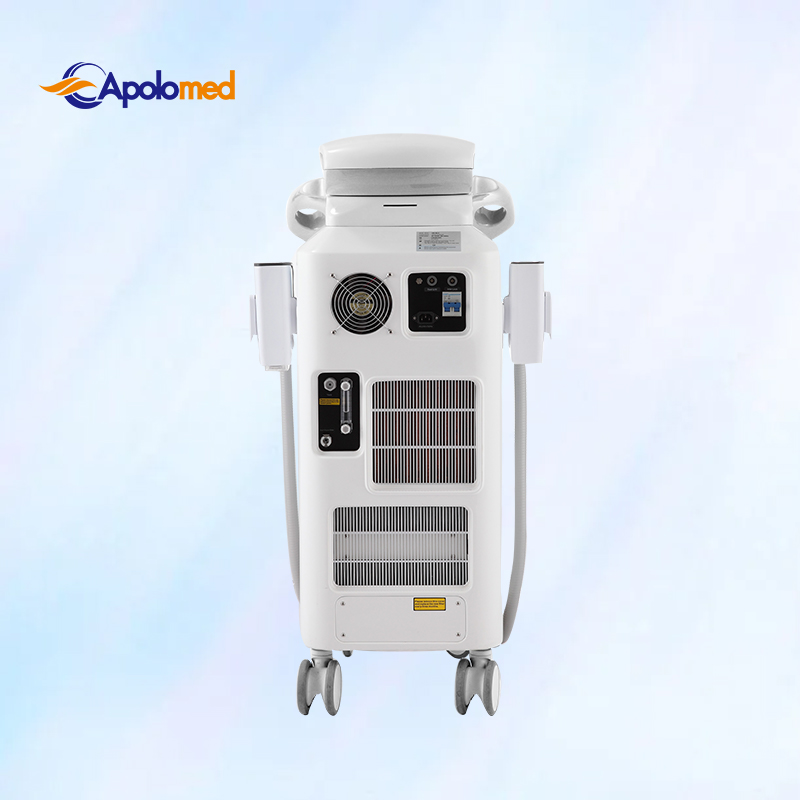

Cooling system: | Air & Close Water Circulation, TEC cooling |
Power Supply: | AC 110V or 230V, 50/60Hz |
Dimension: | 60*38*40cm (L*W*H) |
Weight: | 35kgs |
