Principle

Photodynamic therapy instrument is mainly used in acne (acne muscle) treatment and recovery, plus red light can penetrate into the skin dermis, promote skin repair, firming the skin.

In the process of use, the photodynamic therapy instrument does not produce photothermal effect on the skin, but regulates the activity of cells through light energy. Although the process may produce slight heat, it will not cause damage to the skin.

Main function

Treatment of inflammatory acne

Beauty rejuvenation

Effect

Non-invasive, non-exfoliating, non-burning, the patient feels very comfortable during treatment;

Suitable for all skin types, safe and effective, no side effects;

Patients do not need special care after treatment;

The operation is very simple and fast, medical staff can be competent after simple training.

PDT LED therapy machine HS-770 characteristics

1. The 1.8 "color touch screen is available in professional mode and standard mode

2. Three or four sets of lamp holders are optional to meet the needs of face/body and other parts of the treatment

3. PDT photopower contains red light, green light, blue light, yellow light four basic light sources and infrared light, a wide range of treatment, suitable for any population, treatment area is large, short time, has a strong repair effect

4. Safe, painless, non-invasive, no obvious thermal effect, no burn risk, simple operation, no need for professional operation

5. No consumables, long service life, can work continuously for 24 hours, carry out more projects, with powerful practical functions

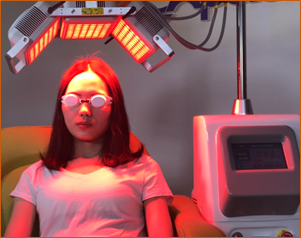

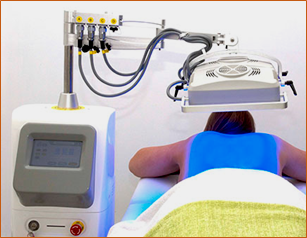

Apolomed HS-770 Photodynamic Therapy (PDT) system: LED combo with 4 wavelength in one (Red/Green/Blue/NIR) LED bubble; high power output with 3W of each wavelength for total 12W in each LED bubble.  The indication is covered anti-aging skin solution, body sculpture, accelerate blood and lymph circulation, wound healing and pain relief.

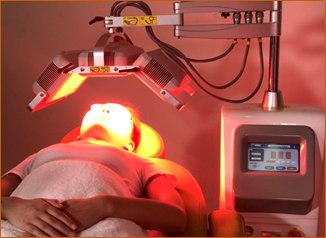

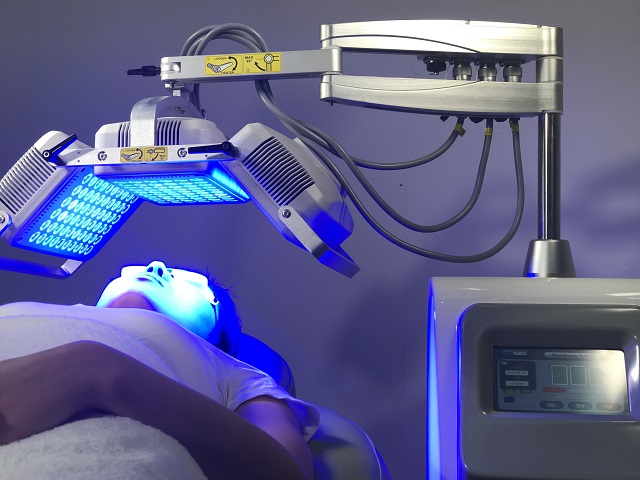

COMPUTER controlled automatically up and down articulated arm to adjust best treatment position

CHANAGE 5color on screen without change LED panel

 MOUNTED on a wheeled column

5 LEVEL ENERGY adjustable for best treatment experience

8'' TRUE COLOR one finger touch screen

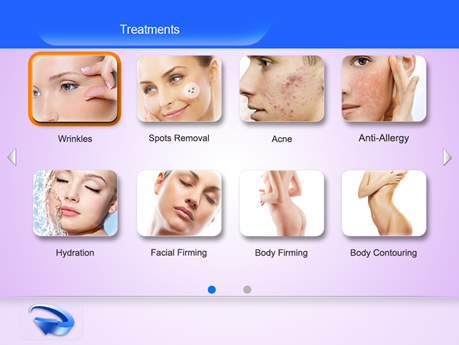

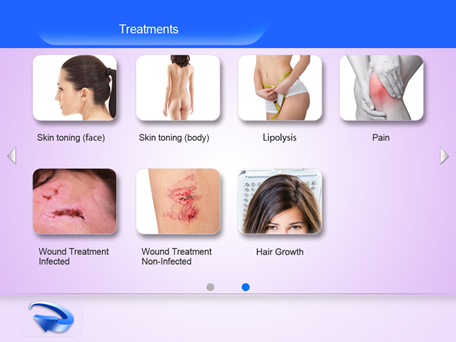

MULTI-FACIAL & BODY treatment program supported

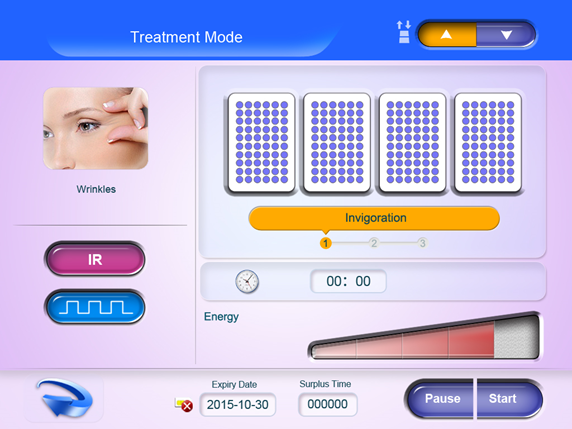

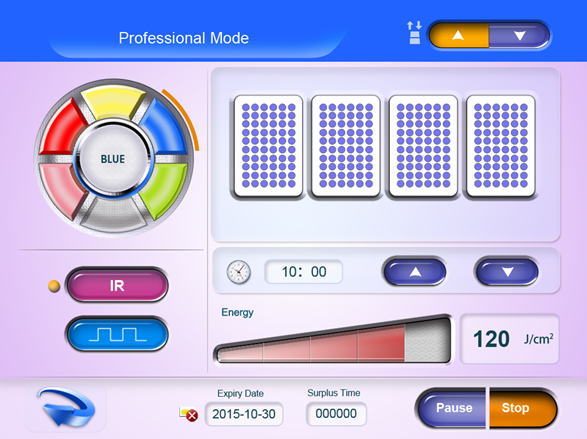

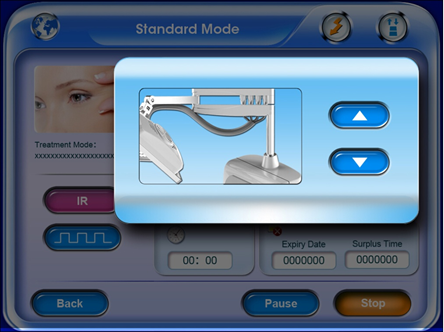

STANDARD MODE with preset treatment procedure and time settting;  professional mode enable treatment color and parameter adjust freely Treatment time set freely (about 20 minutes).

Different color for specific treatment

FEATURE OF OUR PDT LED EQUIPMENT
A total of 180 or 240 durable, hi-quality LED

5 colors and infrared light combined in one single unit

Flexible panels and easily adjusted arm

User-friendly touch-screen with preset treatment protocols

Multi-languages supported to meet global market requirements

Light source	PDT LED
Color	Red	Green	Blue	Yellow	Pink	Infrared
Wavelength (nm)	630	520	415	630+520	630+415	830
Output density (mW/cm2)	140	80	180	80	110	140
Lamp type	Multiple Lamp type (4 SLD colors light / lamp)
Number of SLD	3 panels: 720pcs; 4 panels: 960pcs
Lamp power	3W per SLD color light; 12W per lamp
Treatment area	3P: 20*45cm=900cm², 4P: 20*60cm=1200cm²
Operate mode	Professional mode & Treatment mode
Operate interface	8'' True color touch screen
Power supply	AC 120~240V, 50/60Hz
Dimension	50*50*135cm (L*W*H)
Weight	50Kgs
