Vertical Efficient Tattoo Removal Picosecond Nd Yag Laser
You are here: Home » Devices » Hot Sale » Vertical Efficient Tattoo Removal Picosecond Nd Yag Laser

Vertical Efficient Tattoo Removal Picosecond Nd Yag Laser

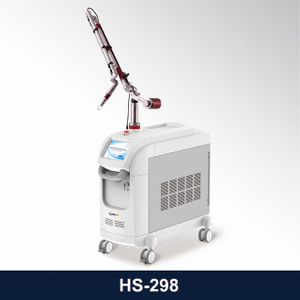

Model: HS-298
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, CE 0197, US FDA
Widely use: Hospitals, medical centers, plastic surgery centers and beauty salons
Operator interface: Simple mode and professional mode
Operation system: ARM-A9 (Android/OS)
OEM/ ODM: Professional design team & rich manufaucture experience


How to remove a tattoo successfully with medical lasers?

Trying to figure out how to remove a tattoo? Unwanted dark and multi-colored tattoos can be safely and effectively eliminated with Apolo's variety of tattoo removal treatments. Picosecond laser is being introduced as the first safe and effective aesthetic laser specifically designed to treat  tattoos and pigmented lesions.

Principle of Picosecond Nd YAG laser

Successful multi-color tattoo removal requires a high powered laser that can deliver enough energy within the absorption spectrum of a wide range of colors. The high power Q-Switched Nd:YAG 1064nm laser is ideal for treating darker ink colors (black, blue and green), while the 532nm wavelength is effective for brighter ink colors (red, orange and yellow). The treatment mechanically breaks down ink particles without causing thermal damage. In time, the body’s lymphatic system disposes of the ink fragments. This natural healing process causes the tattoo to fade with minimal risk of scarring or discoloration.


● Tattoo removal

● Vascular lesion removal

● Skin Rejuvenation

● Epidermal and dermal pigmented lesions: Nevus of Ota,Sun damage, Melasma

● Skin Resurfacing: Wrinkle reduction,Acne scar reduction,Skin toning


● Flat-top beam profile ensure the energy is distributed evenly

● 2 wavelength (1064nm/532nm) & 20X Array lens to meet   various treatment needs

● 2-10mm spot size adjustable with automatic energy density  conversion

● Delivery high peak power and ultra short picosecond pulse  duration, less discomfort during treatment, safe and effective

● Imported 7 jointed, 360° adjustable of articulated imported   arm adjustable for easy operation

● RF ID management control design

● Apply Android operation system

Details of HS-298 Picosecond laser machine

Imported 7 jointed articulated arm with adjustable spot size
Beauty Instrument Weight Loss Tattoo Removal Machine with Low Price
Beauty Instrument Weight Loss Tattoo Removal Machine with Low Price
Intelligent software created by Android operation system
Spot size from 1~10mm adjustable
Beauty Instrument Weight Loss Tattoo Removal Machine with Low Price


Picosecond Nd:YAG laser specifications

Model NameHS-298
Laser TypePicosecond Nd:YAG laser
Beam profileFlat-top mode
Pulse width300ps
Pulse energy500mJ: 1064nm
250mJ: 532nm
Energy calibrationExternal & self-restoration
Spot size2~10mm
Repetition rateMax.10HZ
Optical delivery7 jointed Articulated arm
Operate interface9.7" true color touch screen
Aiming beamDiode 655nm(red), brightness adjustable
Cooling systemAdvanced air & water cooling system
Power supplyAC100V or 230V, 50/60HZ
Dimension97*48*97cm (L*W*H)



Shanghai Apolo Medical Technology Co., Ltd is a leading designer and manufacturer of Intense Pulsed Light (IPL), Various technologies Laser (Pico Nd:YAG,CO2......), Platform Laser, HIFU, PDT LED, Body Slimming technologies for using in medical and aesthetic industries.
