INTRODUCTION
The HS-812N vertical diode laser hair removal machine with the proven efficacy of diode laser hair removal equipment, provides the optimal balance between high energy absorption of melanin chromophores and deep penetration into the skin, making it safe and effective for all skin types, including tanned skin.
It combines 3 wavelength(755+810+1064) / 2 wavelength (755+810) into a single handpiece, which simultaneously work in the different depth of hair follicle to achieve better efficacy and ensure the safest & comprehensive hair removal treatment.
Medical CE approved, US FDA 510K cleared
Big spot size 15*40mm to less time treatment
810nm/dualwave/triplewave for selection
1. Diode laser sapphire with contact cooling brings more comfort treatment

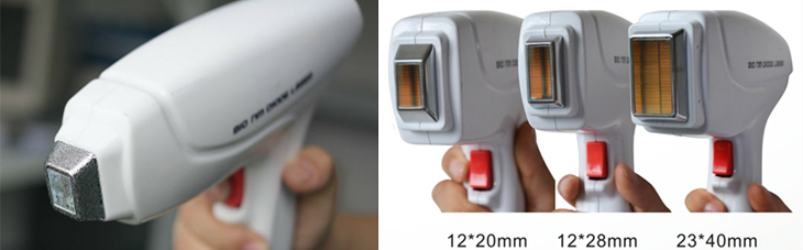

2. Different spot size with different output power for fast and painless hair removal

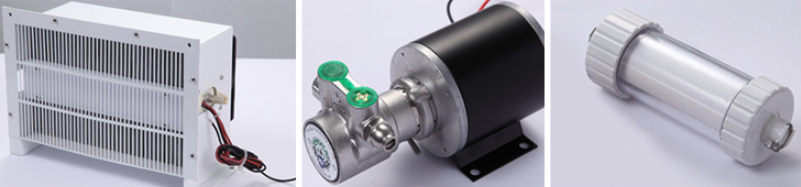

3. TEC and Italian high speed pump ensure the best cooling system
4. Water filter to protect system
5. Software interface of Apolomed
ADVANTAGE
● US original diode module to ensure powerful output energy

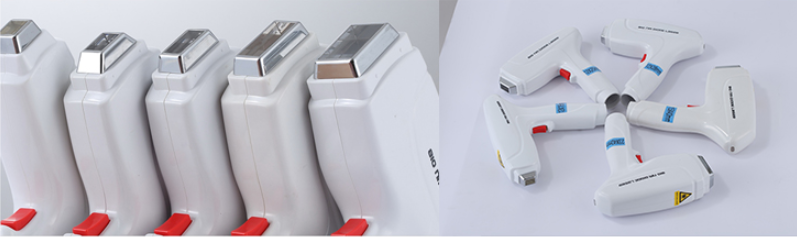

● Multi spot size optional for different area treatment
● Air compressor cooling system and cold sapphire window lead the light guide's temperature is reduced to
4℃ during system operation
● Multi-languages supported, meets the requirements of global market

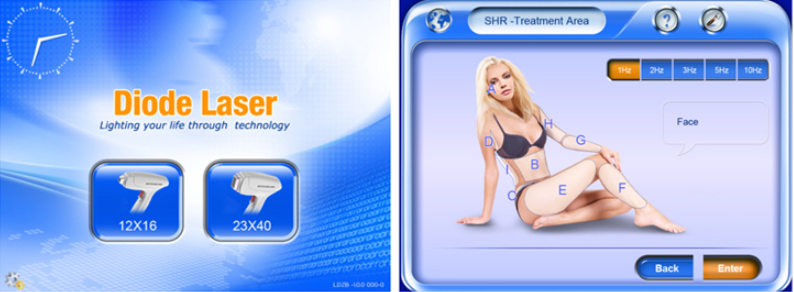

● User friendly touchable operate interface with standard mode and professional mode
● Interlock design ensures the safety treatment environment
● Modularized design for convenient maintenance
● IC management control design. Apply operation system (Android, RTL) .
SPECIFICATION
| Wavelength | 810nm/755+810nm/Triplewave | |
| Laser output | 800W | 1600W |
| Spot size | 12*20mm | 15*40mm |
| Energy density | 1~62J/cm² | 1~40J/cm² |
| Repetition rate | 1~15Hz | |
| Pulse width | 10~300ms/1~200ms | |
| Sapphire cooling | -4ºC~4ºC | |
| Operate interface | 8" True color touch screen | |
| Cooling system | Air cpmpressor cooling system | |
| Power supply | AC 100Vor230V, 50/60Hz | |
| Dimension | 56*38*110cm(L*W*H) | |
| Weight | 56Kgs | |
