Medical 1550 fiber laser equipment

Model: HS-230
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, CE0197
Function: Skin rejuvenation, wrinkle removal, acne scar removal, skin resurfacing, stretch mark removal
Operation system: ARM-A9(Android/OS)
Widely use: Hospitals, medical centers, dermatologists and plastic surgery center
OEM/ ODM: Professional design team & rich manufaucture experience

Availability:



Inquire Add to Basket

PRODUCT VEDIO

DESCRIPTION

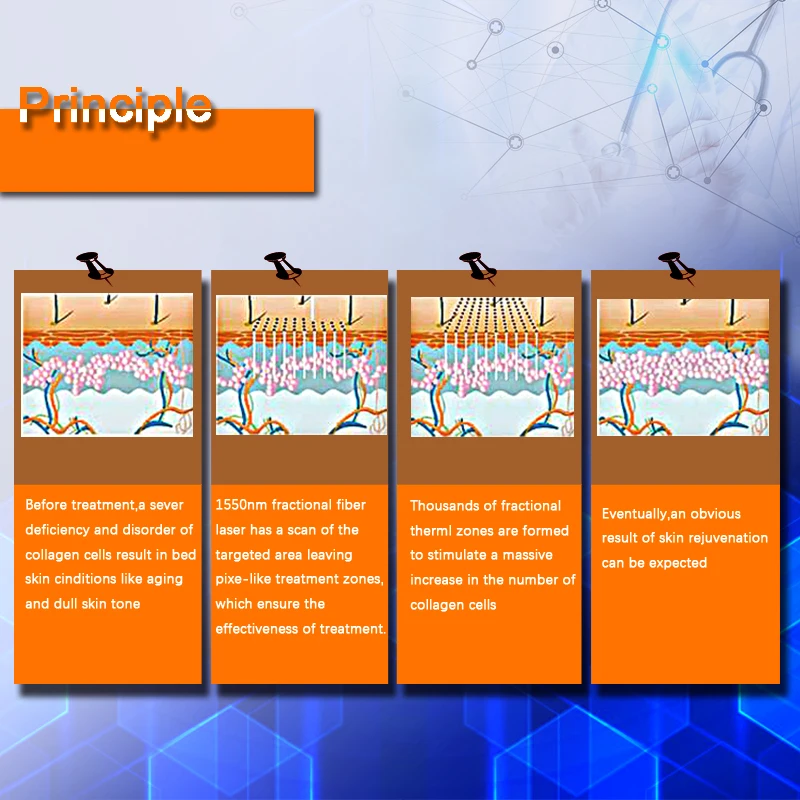

1550nm fractional fiber laser principle

1550nm Erbium fiber laser is splitted into numbers of microscopic beams to the skin, known as microscopic thermal zone. The fractionaized beams not only trigger the healing process of the skin, but also keep the tissues around the coagulation zone. The treatment removes old epidermal pigmented cells and penetreates deep into the dermis, remolding collagen and get the skin regeneration. Dermis fiber thickens, micro wound heals quickly, skin restroes smooth after several treatments. The heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the while area was treated. These driver the better clinical results and make less downtime and side effect. 1540nm erbium yag laser machine

SPECIFICATION

Wavelength	1550nm
Laser power	15W
Laser output	1~120 mJ/dot
Density	25~3025 PPA/cm2 (12level)
Scan area	20x20mm
Pulse width	1~20ms/dot
Operate mode	Array, Random
Operate interface	9.7" true color touch screen
Cooling System	Advanced air cooling system
Power supply	AC100V or 230V, 50/60HZ
Dimension	52x44x32cm (LWH)
Weight	20Kgs
