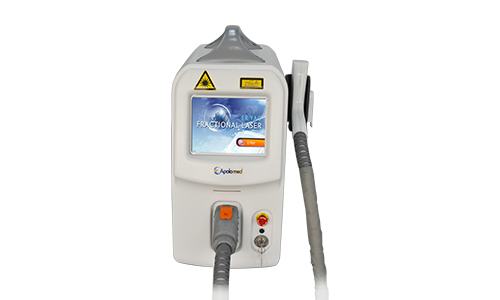

HS-282
Apolomed
Product Description
Cooperation Terms:
a. Dealer
b. Distributor
c. OEM/ODM
2940nm Er:YAG fractional laser Working principle:
The Erbium (Er) yag laser is a kind of solid laser with a wavelength of 2940nm. It is in the infrared area which is invisible .It has peak value of absorption to water.The cutaneous absorption of the Er:YAG laser energy by water is 10-fold more efficient than that of the carbon dioxide laser, allowing for more superficial tissue ablation and finer control.Pulsed laser energy causes controlled vaporization of the skin according to the principles of selective photothermolysis. The clinical manifestations of laser treatment depend on the ability of the skin to resurface itself. After lasing, the vaporized, atypical, disorganized epidermal cells are replaced with normal, well-organized keratinocytes from the follicular adnexa. The irregular, disorganized collagen and elastin of the upper papillary dermis are replaced with normal, compact collagen and elastin organized in parallel configurations.
Specification
| Wavelength | 2940nm |
| Energy | Fractional Φ10mm: 2-13mJ/MTZ |
| Beam expander: 150-800mJ | |
| Zoom lens: 150-800mJ | |
| Repetition rate | 1-6Hz |
| Pulse width | 300us |
| Operate intrface | 8’’ true color touch screen |
| Dimension | 55*26*58cm (L*W*H) |
| Weight | 15Kgs |
APPLICATIONS
1- Skin resurfacing
2- Surgical scar removal(more aggressive level)
3- Photo damage
4- Stretch marks removal
5- Melasma (dark skin patches)
6- wrinklesand fine lines
7- wart and nevus removal
8-Texture irregularity
Accidental scars removal by HS 820 erbium yag laser 2940nm
ADVANTAGE
1. US oriign laser rod with stable, reliable and powerful laser output
2. DE origin fractional lens with long life span
3. Water filter is double secured to ensure long life of the laser resonator and whole system
4. Multi-languages supported, meets the requirements of global market
5. Friendly touchable operate interface
6. Interlock design ensures the safety treatment enviroment
7. Modularized design for convenient maintenance
8. RF ID/ IC management control design for providing different business operations models (ie.: member card, Rental...)
9. Apply Linux/ Android operation system, is capable for more functions of saving customer database, developing applications and customize interface

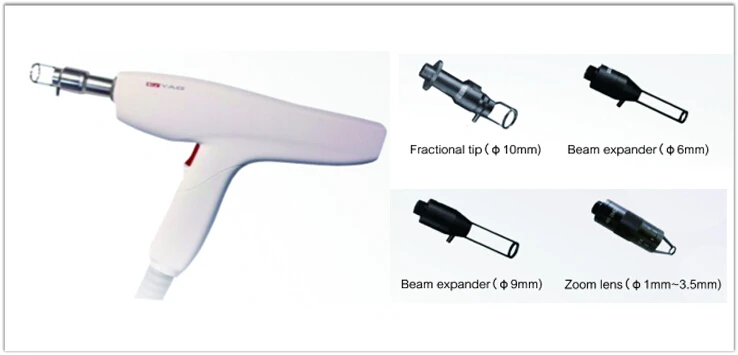

Laser ablation system hand piece:
