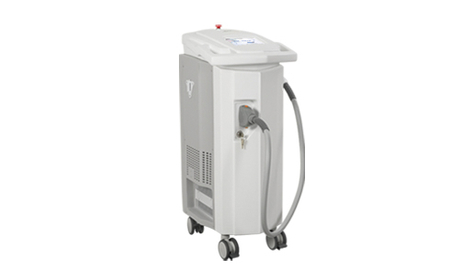

HS-900
Apolomed
INTRODUCTION
Apolo multi-function platform can be adapted different handpieces all in one machine. With interchangable technology, the system can distinguish the handpieces automatically. There is no need to worry about misoperation because only the right corresponding system turn to active with its handpiece. The client can have part of or all available handpieces based on their actually needs.
ADVANTAGE

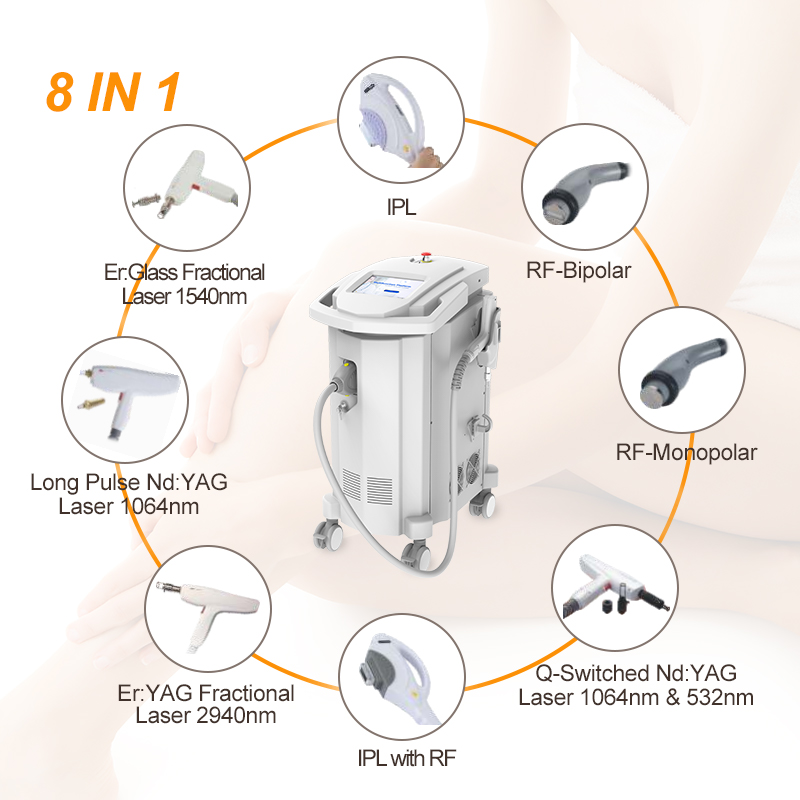

1. 8-in-1 multifunction system available,which combine different technoties in one basic unit.
2. Auto-detect interchangeable handpieces for option
3. Excellent cooling system with TEC water tank,Italy pump and high speed fans.
4. Multi-languages supported,meets requiremnets of global market.
5. Friendly touchable operate interface with standard mode and professional mode.
6. Interlock design ensure safety treatment environment.
7. Mudularized design for convenienet maintenance.
8. USB and IC card function supported.
SPECIFICATION
Handpiece | 2940nm Er:YAG fractional ablative laser | |
Spot Size | 10x10mm | |
Repetition Rate | 1-6Hz | |
Pulse Width | 0.2~0.4ms,1~3ms | |
Energy | Fractional(52 pixel):10*10mm,2~13mJ/MTZ | |
Handpiece | 1540nm Er:Glass fractional laser | |
Energy | 10×10 pixel:25~70mJ/MTZ | |
Pulse Width | 10ms,15ms | |
Handpiece | 1064nm Long Pluse Nd:YAG Laser | |
Pulse Width | 10~40ms | |
Repetition Rate | 1Hz | |
Delay time | 5~50ms | |
Energy density | ø9mm 10~100J/cm2 | |
Handpiece | 1064/532nm Q-Switch Nd:YAG Laser | |
Spot Size | 1-5mm | |
Pulse Width | <10ns (single pluse) | |
Repetition Rate | 1-10Hz | |
Max.Energy | 2400mJ(ø7),4700mJ(ø6+ø7) | |
Handpiece | IPL/EPL | |
Spot Size | 15*50mm | |
Wavelength | 420~1200nm | |
Filter | 420/510/560/610/640~1200nm,SHR | |
IPL/EPL Energy | 1~30J/cm2 (10~60 level) | |
Handpiece | RF Monopolar or RF Bipolar | |
Output | 200W | |
RF tip | ø18mm,ø28mm,ø37mm | |
Operate interface | 8'' True Color Touch Screen | |
Cooling | Advanced Air&TEC water cooling system | |
Power Supply | AC 110V~230V,50/60H | |
Dimension | 64*48*115cm(L*W*H) | |
Weight | 72Kgs | |
