Picosecond Laser Tattoo Removal Pigmentation Removal Machine
You are here: Home » Devices » Hot Sale » Picosecond Laser Tattoo Removal Pigmentation Removal Machine

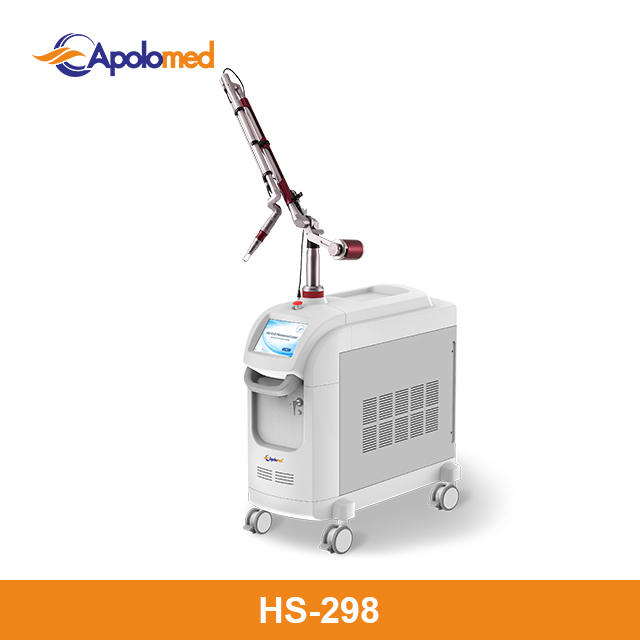

Picosecond Laser Tattoo Removal Pigmentation Removal Machine

Model: HS-298
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, TUV CE 0197, US FDA
Widely use: Hospitals, medical centers, plastic surgery centers and beauty salons
Operator interface: Simple mode and professional mode
Operation system: ARM-A9 (Android/OS)
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:

INTRODUCTION

HS-298

Application of  Picosecond Laser Tattoo Removal Pigmentation Removal Machine

● Tattoo removal

● Vascular lesion removal

● Skin Rejuvenation

● Epidermal and dermal pigmented lesions: Nevus of Ota,

 Sun damage, Melasma

● Skin Resurfacing: Wrinkle reduction, Acne scar reduction,

 Skin toning



3-功能选择1Principle of Picosecond Nd:YAG Laser Machine

Picosecond laser is mainly used to repel melanin and improve skin problems caused by pigment precipitation, such as uneven skin tone, black meat bottom, dull waxy yellow, red red, and so on.


picosecond laser principle



ADVANTAGE

The advantages of Picosecond laser

1. Remove tattoos, dark spots and dull acne scars


The effect of leather laser can be used mainly to repel melanin and treat spots, such as the precipitation of skin pigmentation such as sunburn, old spots, freckles, etc., or pigment acne scars caused by acne (acne). According to the same principle, using different laser waves can remove tattoos of different colors.


2. Treatment of wrinkles and improvement of skin condition


Through special lens, leather second laser can activate the collagen female cells under the dermis layer, stimulate collagen proliferation and reorganization, to improve the wrinkles and fine lines on the surface of the skin, and can improve the bottom of the muscles, make the skin thicker, healthy, touch the touch more Jia, make makeup are more comfortable.


Picxide laser can improve the skin texture of the surface layer.


3. Improve pores and dilute scars


The honeycomb lens is a small wound that is not easy to see in the skin. The skin will start the empty bubble effect of collagen, which will achieve the effect of repairing damaged skin and narrowing pores. It can also fade the concave scars and indirectly inhibit a small number of sebaceous glands out of oil.

Key Benefits of our Picosecond laser machine

1. Two wavelengths (1064nm/532nm) with Non-Fractional and Fractional optional.

2. Delivery high peak power and ultra short picosecond pulse duration, less iscomfort during treatment, safe and effective.

3. Short pulse duration 300ps~500ps greater variety of tattoo colors and skin types with minimal downtime.

4. Spot size adjustable from 1-10mm the energy density automatic conversion.

5. Imported 7 jointed, 360° adjustable of articulated imported arm adjustable for easy operation.

6. RF ID / IC management control design for providing different business operations models ( ie. member card, Rental.... )

7. Apply Android operation system, is capable for more functions of saving customer database, developing applications and customize interface.

2-模式4-标准模式P

SPECIFICATION

Model Name

HS-298 Pico laser

Laser Type

Picosecond Nd:YAG laser

Wavelength

1064/532nm

Beam profile

Flat-top mode

Pulse width

300~500ps

Pulse energy

500mJ @1064nm

250mJ @532nm

Energy calibration

External & self-restoration

Spot size

1~10mm

Repetition rate

Max.10HZ

Optical delivery

7 jointed Articulated arm

Operate interface

9.7" true color touch screen

Aiming beam

Diode 655nm(red), brightness adjustable

Cooling system

Advanced air & water cooling system

Power supply

AC100V or 230V, 50/60HZ

Dimension

97*48*97cm (L*W*H)

Wright

150KGs
