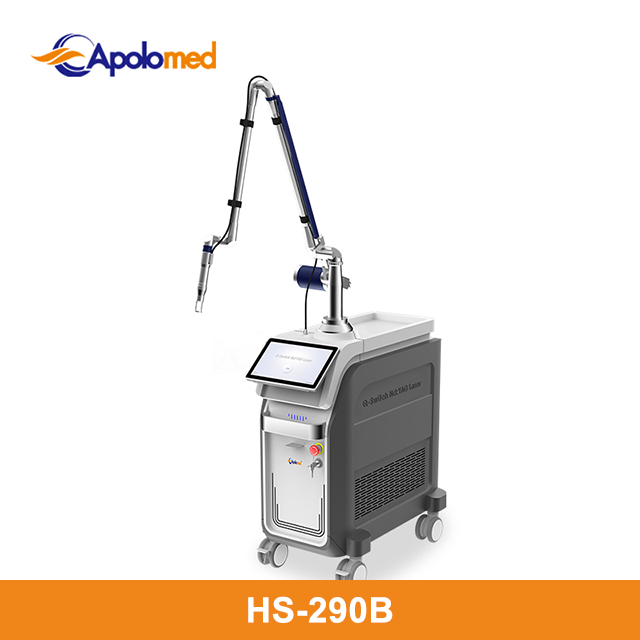

Q-Switched ND YAG Equipment Q-Switched Laser System Machine ND YAG Laser Tattoo Removal Machine

Model: HS-290B
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, CE0197, US FDA
Function: Tattoo removal,Skin resurfacing, Epidermal and dermal pigmented lesions
Operation system: ARM-A9 CPU(Android O/S4.1,HD screen)
Widely use: Hospitals, medical centers, dermatologists and plastic surgery center
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:
  • HS-290B

  • Apolomed

Describtion

Flat-top beam profile ensure the energy is distributed evenly


OUR SPECIAL DESIGNED HANDPIECE

The HS-290B handpieces can generate different flat-top spot shapes with special design for uniform beam profile are ideal for tattoo removal,  perfect for skin rejuvenation and resurfacing with very fast recovery time.


INTRODUCTION

Working principle:

The high peak power and short pulse duration delivers efficient destruction of the target chromophore such as tattoo ink, pigment or collagen. The electro-optic (EO) Q-Switch, acting as a high-speed shutter, stores energy between pulses enabling the laser to produce peak power output of 200MW in 6ns pulse width. It forces energy at a high rate, the target chromophores vibrate and shatter, without harming the surrounding skin on all skin.

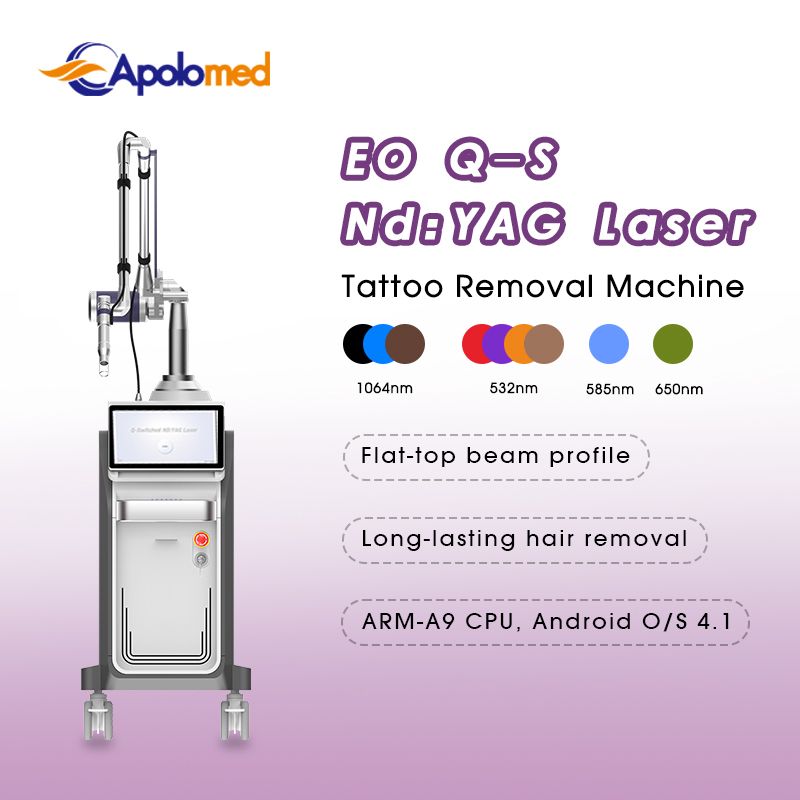

HS-290B_18




Our HS-290B Q-S Nd:YAG Laser is a tattoo removal machine specially offered to suit straight into any tattoo studio, clinic or salon. It is stand passive Q-Switched Nd:YAG Laser will help our customers  get idea removal of all different kinds of tattoos.

It is produced with four highly powered Q-Switched Nd:YAG Laser wavelengths to ensure removal of tattoo pigments.


ADVANTAGE

EO Q Switched Nd Yag Laser technical advantages:

  • Medical CE 0197 approved and USA FDA cleared

  • High-performance 4 wavelength (1064/532/585/650nm)

  • 532 nm clinically proven to be absorbed 5X greater by oxyhemoglobin than 595 nm

  • Spot sizes ranging from 2-10 mm

  • Imported 7 joint articulated arm with flat-top beam profile, making stable & even energy output


OUR SPECIAL DESIGNED HANDPIECE

The HS-290 handpieces can generate different flat-top spot shapes with special design for uniform beam profile are ideal for tattoo removal,  perfect for skin rejuvenation and resurfacing with very fast recovery time.

WITH 2 DIFFERENT operation mode of Professional Mode and Standard mode for frieindly easy operation.

1064nm/532nm Q-Switch Laser Eo Q-Switched ND YAG Laser Flat-Top Beam Tattoo Removal Machine HS-290 Apolo

- A9 FAST reaction with A9 Quard-core processor CPU

-USB FUNCTION for updating software simply and automatically.

- IC CARD FUNCTION To control shot number and expiry period to get derivative cooperation ways:

- RENTAL / INSTALLMENT / Control after service (Handpiece warranty period)


SPECIFICATION

EO Q Switched Nd Yag Laser technical specifications:

Model NameHS-290B
Laser TypeEO Q-Switch Nd:YAG laser
Wavelength1064/532,585/650nm(optional)
Operate modeQ-Switched mode,SPT mode,Long pulse hair removal mode
Beam profileFlat-top mode
Pulse width≤ 6ns (Q-Switched mode),300us(SPT mode)
5~30 ms (Hair removal mode)
Pulse energyQ-Switched (1064nm)Q-Switched (532nm)
SPT mode(1064nm)Long pulse hair removal(1064nm)
Max.1200mJMax.600mJ
Max.3000mJ
Max.60J/cm2
Repetition rateMax. 10HzMax. 8Hz
Max. 10Hz
Max. 1.5Hz
Spot size2~10mm2~10mm
2~10mm
6~18mm
Energy calibrationExternal & self-restoration
Operating mode1./2./3.pulse support
Optical deliveryArticulated arm
Operate interface11.6" true color touch screen
Aiming beamDiode 650nm(red), brightness adjustable
Cooling systemAdvanced air & water cooling system
TEC cooling system(optional)
Power supplyAC100V ~240V, 50/60HZ
Dimension79*43*88cm (L*W*H)
Wright72.5Kgs

Application

EO Q Switched Nd Yag Laser application:

Tattoo removal

Epidermal and dermal pigmented lesions:Nevus of Ota,Sun damage,Melasma

Vascular lesion removal

Skin Rejuvenation

Skin Resurfacing:Wrinkle reduction,Acne scar reduction,Skin toning

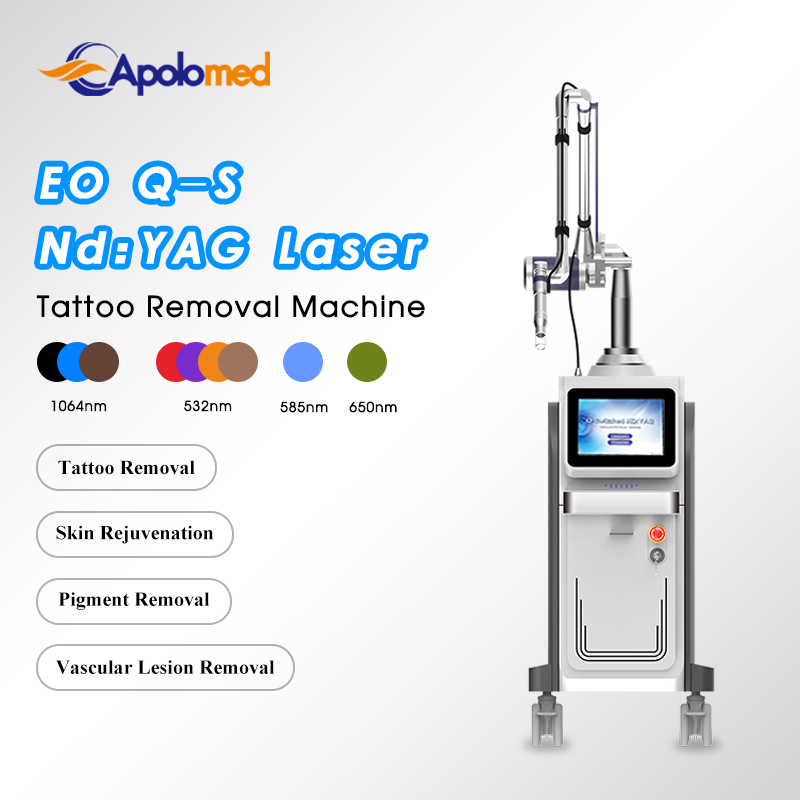

HS-290A_15
