EO Q-Switched Nd Yag Laser
You are here: Home » Devices » Q-Switched ND:YAG Laser » EO Q-Switched Nd Yag Laser

EO Q-Switched Nd Yag Laser

Model: HS-290E
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, CE 0197, US FDA
Widely use: Hospitals, medical centers, plastic surgery centers and beauty salons
Operator interface: Simple mode and professional mode
Operation system: ARM-A9(Android/OS)
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:

PRODUCT VEDIO



INTRODUCTION

APPLICATION

  • Tattoo removal

  • Vascular lesion removal

  • Skin Rejuvenation

  • Skin Resurfacing

  • Wrinkle reduction

  • Acne scar reduction

  • Skin toning

  • Epidermal and dermal pigmented lesions: Nevus of Ota, Sun damage, Melasma

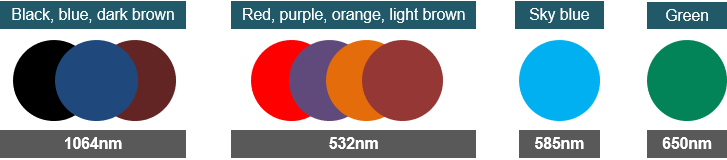

              EO QS laserr application



PRINCIPLE

The high peak power and short pulse duration delivers efficient destruction of the target chromophore such as tattoo ink, pigment or collagen. The electro-optic (EO) Q-Switch, acting as a high-speed shutter, stores energy between pulses enabling laser to produce peak power output of 200MW in 6ns pulse width.

It forces energy at a high rate, the target chromophores vibrate and shatter, without harming the surrounding skin on all skin.

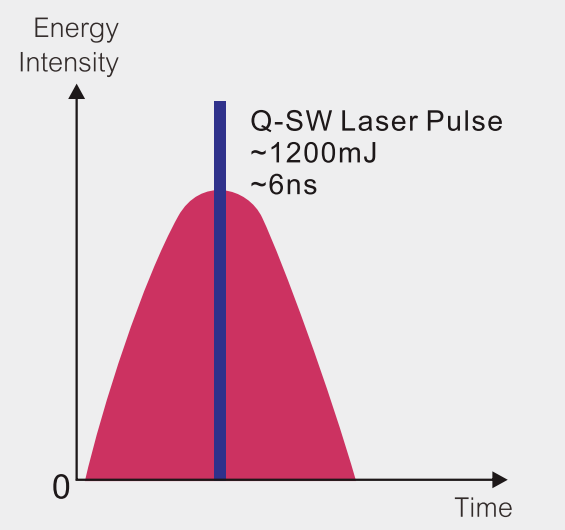

                                                        EO qs laser principle

ADVANTAGE

Our HS-290E is a tattoo removal machine specially offered to suit straight into any tattoo studio, clinic or salon. It is stand passive Q-Switched Nd:YAG Laser will help our customers  get idea removal of all different kinds of tattoos.

It is produced with four highly powered Q-Switched Nd:YAG Laser wavelengths to ensure removal of tattoo pigments.


                                  carbon peel equipment

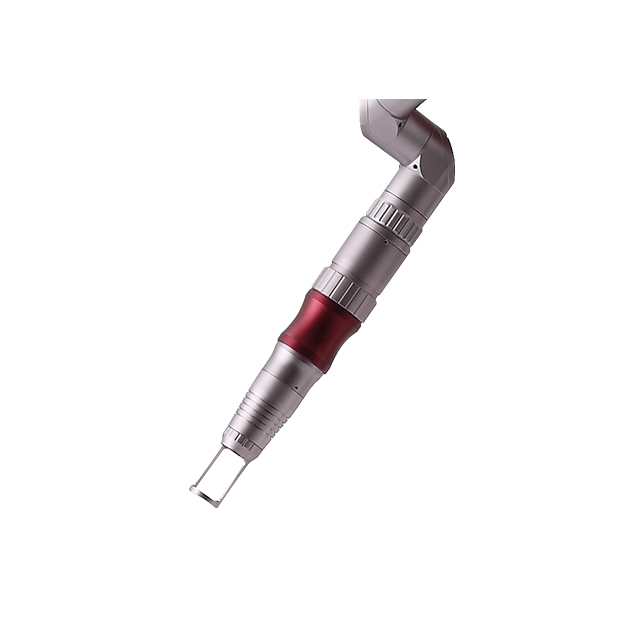

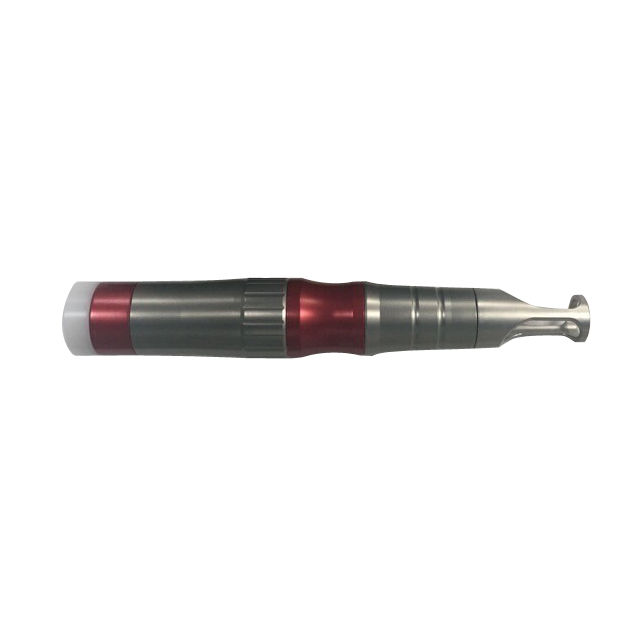

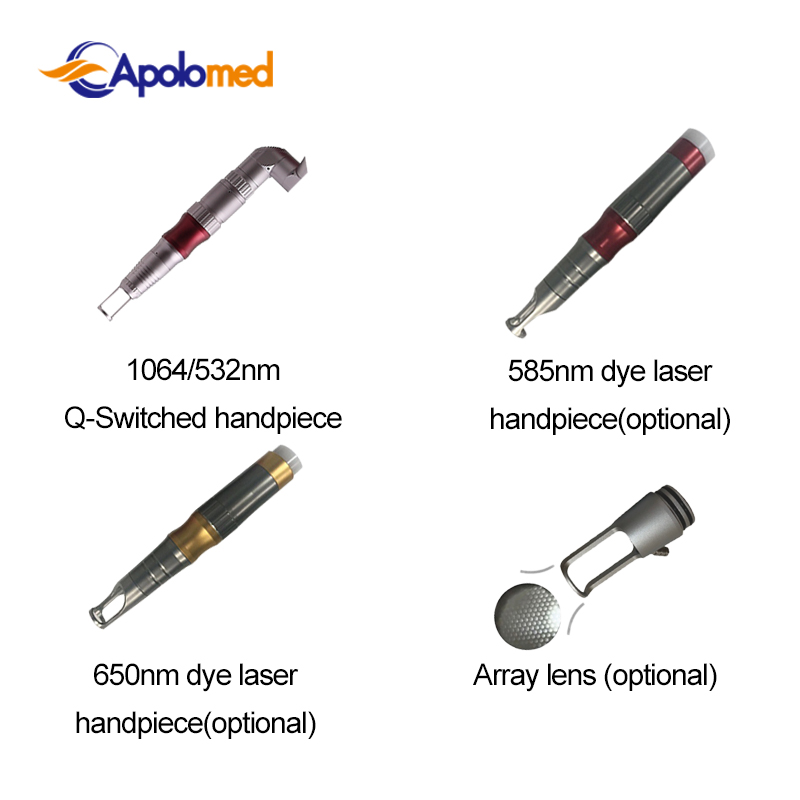

OUR SPECIAL DESIGNED HANDPIECE

The HS-290 handpieces can generate different flat-top spot shapes with special design for uniform beam profile are ideal for tattoo removal,  perfect for skin rejuvenation and resurfacing with very fast recovery time.


                                                                             nd yag laser

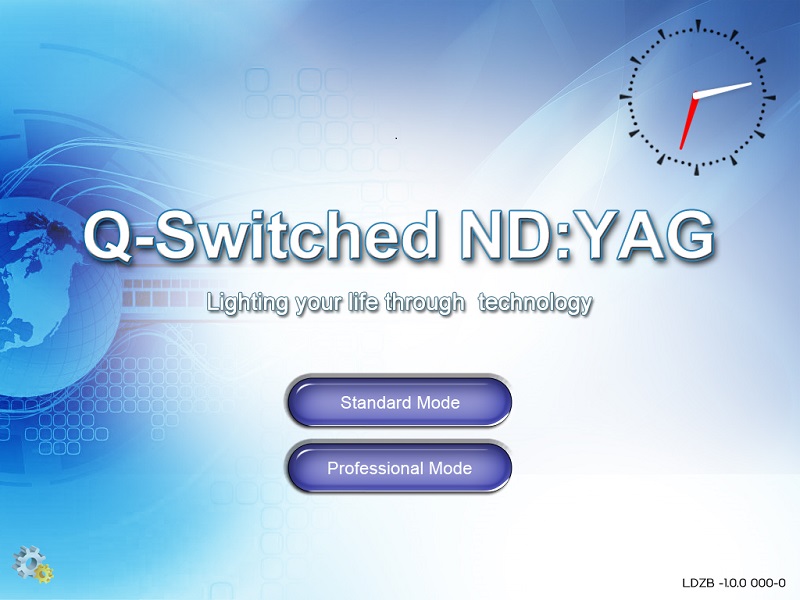

WITH 2 DIFFERENT operation mode of Professional Mode and Standard mode for frieindly easy operation.

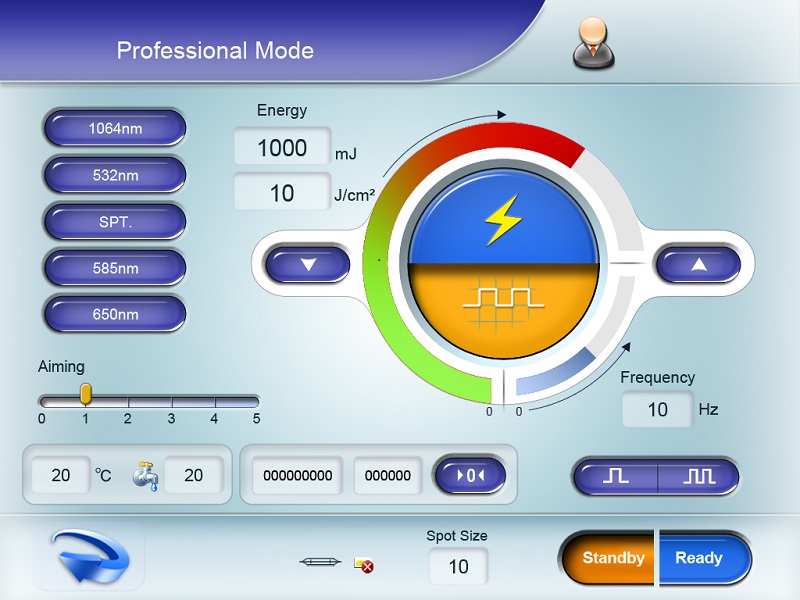

                 Eo qs laser screen     EO qs laser screen 2


- A9 FAST reaction with A9 Quard-core processor CPU

-USB FUNCTION for updating software simply and automatically.

- IC CARD FUNCTIONTo control shot number and expiry period to get derivative cooperation ways:

- RENTAL / INSTALLMENT/ Control after service (Handpiece warranty period)

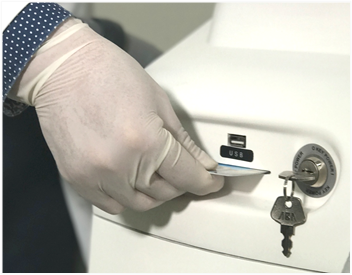

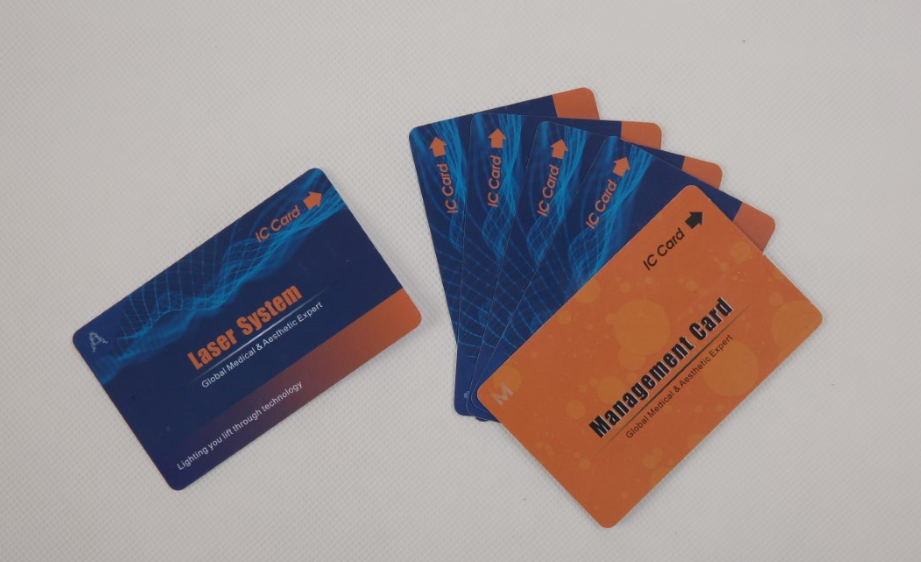

                   QS laser IC card function      qs laser IC card


APOLOMED FACTORY VIEW


                  EO qs laser machine



SPECIFICATION

Laser type

EO Q-switch Nd:YAG laser

Wavelength

1064/532/585/650nm

Operate mode

Q-switched mode & SPT mode

<6ns (Q-switched mode)

Pulse width

300 s (SPT mode)

Beam profile

Flat-top mode


Pulse energy

Q-switched 1064nm

Q-switched

532nm

SPT mode

1064nm long pulse

Max.500mJ

Max. 260mJ

Max.1000mJ

Energy calibration

External & self-restoration


Spot size

1~10mm

Repetition rate

Max. 10 Hz (1064nm, 532nm, SPT mode)

Optical delivery

Articulated arm

Operate interface

9.7" True color touch screen

Aiming beam

Diode 650nm(Red), brightness adjustable

Cooling system

Advanced Air & Water cooling system

Power supply

AC 110V or 230V, 50/60Hz

Dimension

HS-290E: 82*30*89cm (L*W*H)

Weight

80Kgs
