Availability: | |
---|---|

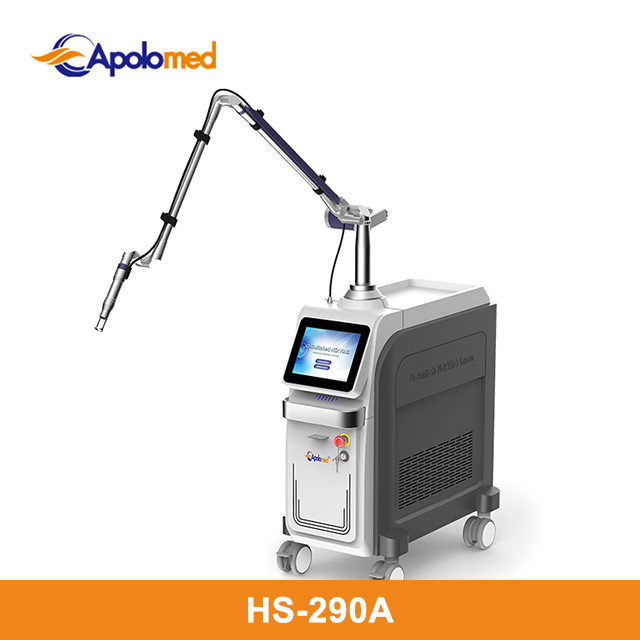

HS-290A
Apolomed
INTRODUCTION
The Q-switched laser therapy is based on the principle of photoburst. Through the ultra-pulse time of milliseconds and microseconds, the laser can penetrate the epidermis of the skin and reach the deep layer of the skin instantly. The pigment particles inside the skin are instantly crushed, and the crushed pigment particles are swallowed by human macrophages and then transported away slowly.
Our HS-290A Q-S Nd:YAG Laser is a tattoo removal machine specially offered to suit straight into any tattoo studio, clinic or salon. It is stand passive Q-Switched Nd:YAG Laser will help our customers get idea removal of all different kinds of tattoos.
It is produced with four highly powered Q-Switched Nd:YAG Laser wavelengths to ensure removal of tattoo pigments.
ADVANTAGE
Medical CE 0197 approved and USA FDA cleared
High-performance 4 wavelength (1064/532/585/650nm)
532 nm clinically proven to be absorbed 5X greater by oxyhemoglobin than 595 nm
Spot sizes ranging from 2-10 mm
Imported 7 joint articulated arm with flat-top beam profile, making stable & even energy output
The HS-290 handpieces can generate different flat-top spot shapes with special design for uniform beam profile are ideal for tattoo removal, perfect for skin rejuvenation and resurfacing with very fast recovery time.
WITH 2 DIFFERENT operation mode of Professional Mode and Standard mode for frieindly easy operation.
- A9 FAST reaction with A9 Quard-core processor CPU
-USB FUNCTION for updating software simply and automatically.
- IC CARD FUNCTION To control shot number and expiry period to get derivative cooperation ways:
- RENTAL / INSTALLMENT / Control after service (Handpiece warranty period)
SPECIFICATION
Laser Type | EO Q-Switch Nd:YAG laser |
Wavelength | 1064/532/585/650nm |
Operate mode | Q-Switched mode & SPT mode |
Beam profile | Flat-top mode |
Pulse width | ≤ 6ns (Q-Switched mode) |
300 us (SPT mode) | |
Pulse energy | Q-Switched 1064 mode: Max.1200mJ |
Q-Switched 532 mode: Max.500mJ | |
SPT mode (1064nm) long pluse: Max.1400mJ | |
Energy calibration | External & self-restoration |
Spot size | 1~10mm |
Repetition rate | Max.10HZ(1064nm,532nm,SPT mode) |
Optical delivery | Articulated arm |
Operate interface | 9.7" true color touch screen |
Aiming beam | Diode 650nm(red), brightness adjustable |
Cooling system | Advanced air & water cooling system |
Power supply | AC100V or 230V, 50/60HZ |
Dimension | 80*42*89cm (L*W*H) |
Wright | 83Kgs |
Application
Tattoo removal
Epidermal and dermal pigmented lesions:Nevus of Ota,Sun damage,Melasma
Vascular lesion removal
Skin Rejuvenation
Skin Resurfacing:Wrinkle reduction,Acne scar reduction,Skin toning
