INTRODUCTION
Also known as Nd-Yag lasers, Q-switched lasers use nanosecond pulses of laser beam energy to break down excessive pigmentation, while the crushed melanin is slowly cleared away by the body's immune system. The specific wavelength of Q-switched ND-YAG laser is 532nm and 1064nm, respectively, and can be absorbed by colored pigments such as freckles and age spots on the skin.
The high peak power and short pulse duration delivers efficient destruction of the target chromophore such as tattoo ink, pigment or collagen. The electro-optic (EO) Q-Switch, acting as a high-speed shutter, stores energy between pulses enabling the laser to produce peal power outpur of 200mW in 6ns pulse width. It forces energy at a high rate, the target chromophores vibrate and shatter, without harming the surrounding skin on all skin types.
Tattoo removal |
Vascular lession removal |
Skin rejuvenation |
Skin refurfacing: Wrinkle reduction, acne scar reduction, skin toning |
Epidermal and dermal pigmented lesions: Nevus of OTA, Sun damage, Melasma etc.. |
ADVANTAGE
1.Max.2000mJ EO Q-Switch mode for yag laser tattoo removal treatment
2.Max.2800mJ free running mode for yag laser skin rejuvenation
3.Pulse width < 7ns
4.Repetition rate max.10HZ
5.Luxry 9.7" true color touch screen with multi-languages available
6.IC card and USB function supported

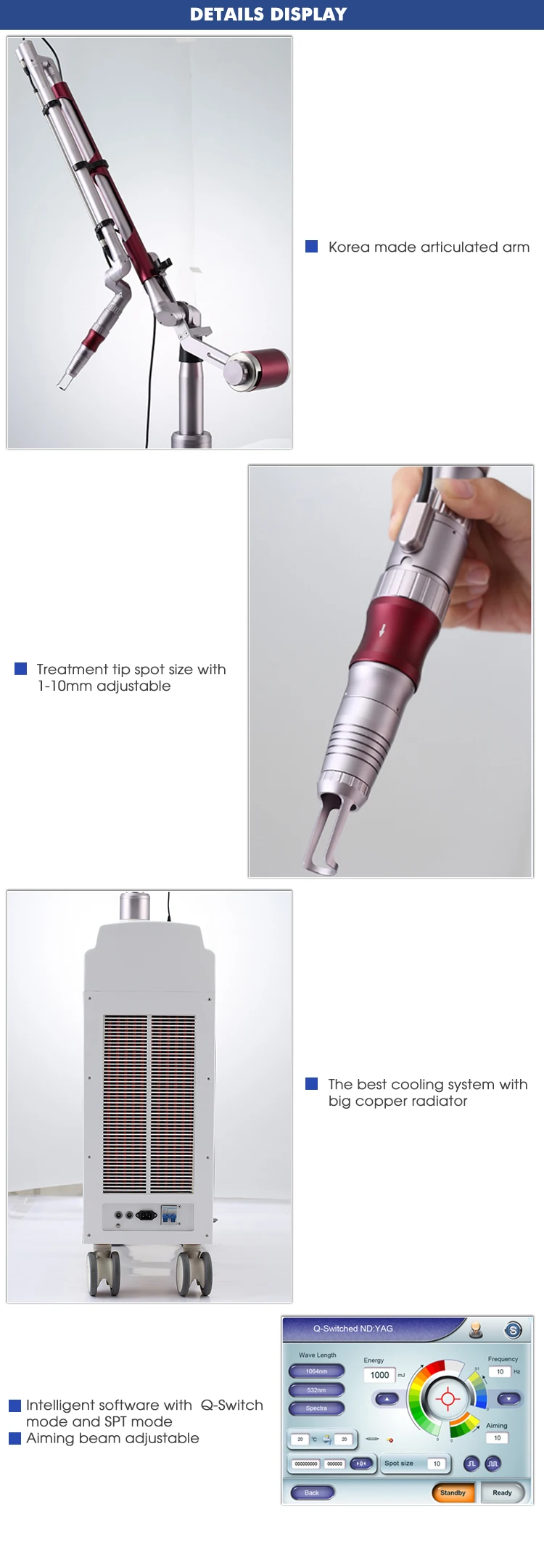

7.Copper radiator cooling system and water filter to protect the system
8.Modulariged design with metal chassis. Easy for maintenance.
9.Operations Safety: water flow and water level control system keeps laser machine in safe condition.

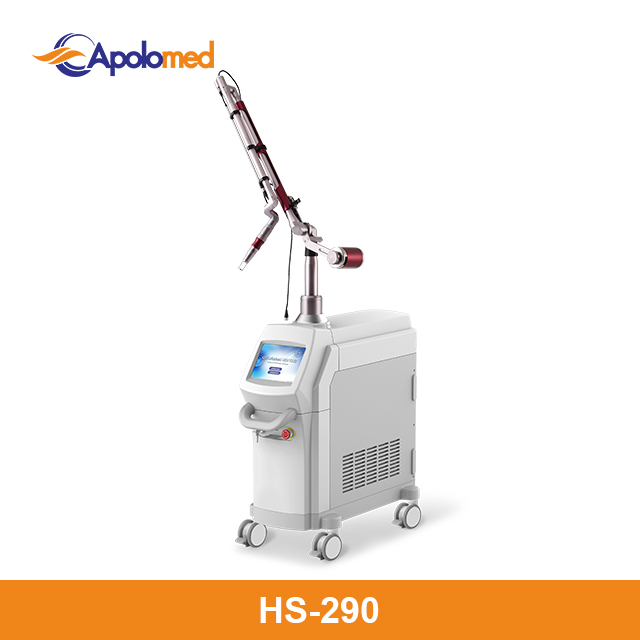

SPECIFICATION
Laser Type | EO Q-Switch Nd:YAG laser |
Wavelength | 1064/532/585/650nm |
Operate mode | Q-Switched mode & SPT mode |
Beam profile | Flat-top mode |
Pulse width | ≤ 6ns (Q-Switched mode) |
300 us (SPT mode) | |
Pulse energy | Q-Switched 1064 mode: Max.1200mJ |
Q-Switched 532 mode: Max.500mJ | |
SPT mode (1064nm) long pluse: Max.1400mJ | |
Energy calibration | External & self-restoration |
Spot size | 1~10mm |
Repetition rate | Max.10HZ(1064nm,532nm,SPT mode) |
Optical delivery | Articulated arm |
Operate interface | 9.7" true color touch screen |
Aiming beam | Diode 650nm(red), brightness adjustable |
Cooling system | Advanced air & water cooling system |
Power supply | AC100V or 230V, 50/60HZ |
Dimension | 80*42*89cm (L*W*H) |
Weight | 83Kgs |
