USA FDA Approved Triple Diode Laser System
You are here: Home » Devices » 需隐藏的分类 » USA FDA Approved Triple Diode Laser System

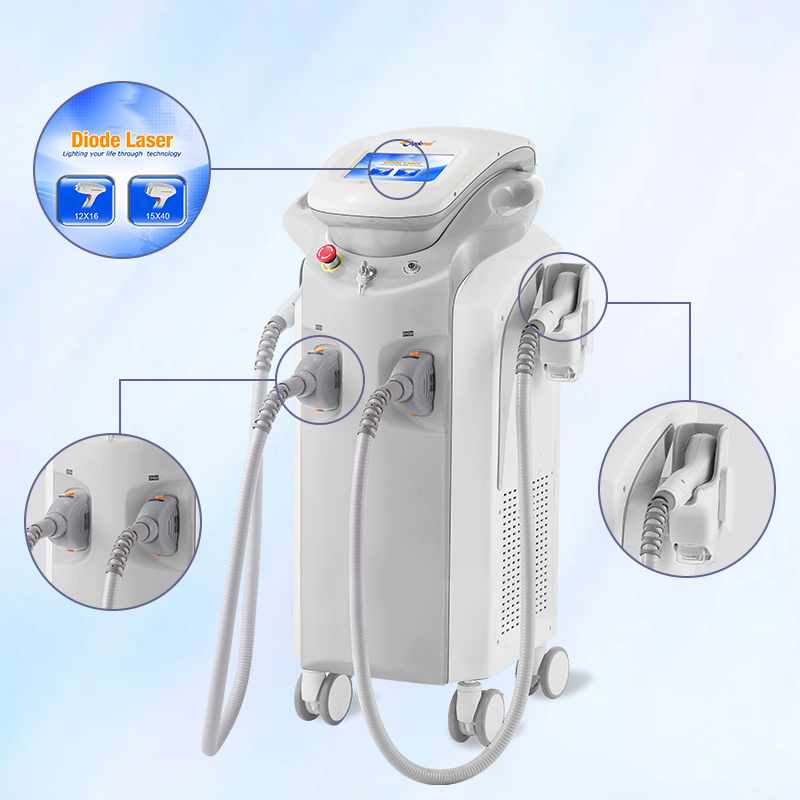

USA FDA Approved Triple Diode Laser System

  • TUV Medical CE and USA FDA 510K: K200118

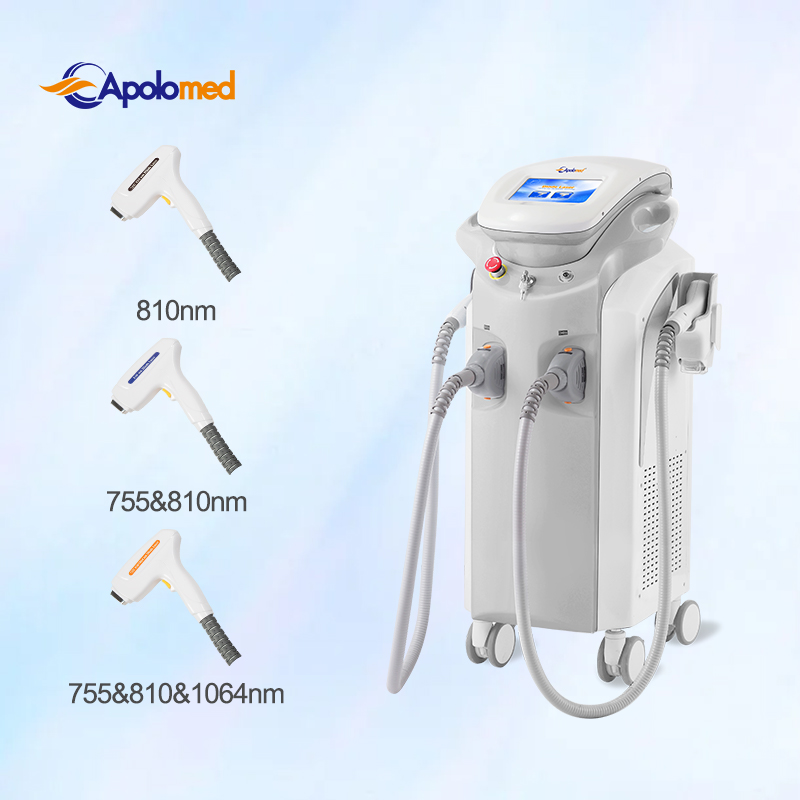

  • Different wavelength handles for option
  • Optimized refrigeration system for more stable energy output and longer machine life span
  • HS-812N
  • Apolomed

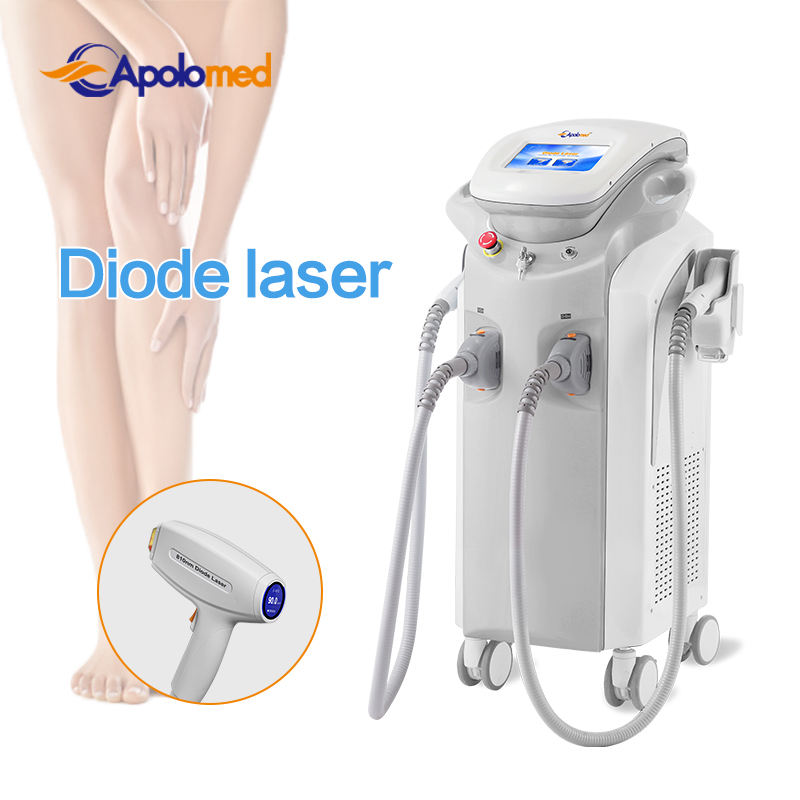

808nm diode laser hair removal equipment introduction:

The HS-812N is  specific designed for permanent hair removal and is designed to meet international safety and performance standards.

The Diode laser working principle is based on the photothermic theory. There is plenty of melanin in hair follicles and hair shafts. Melanin scatters among hair bulbs and hair shaft structure (like medullary substance, cortex and cuticula pili). The HS-810/811 Diode laser targets on melanin and treat selectively in a precise way. Melanin could absorb the energy from the laser, which would result in temperature rapid increase, to destroy surrounding hair follicles, and finally remove hair.

How Does A Diode Laser Work ?

Diode lasers (a light beam with narrow spectrum) use the principle of selective photothermolysis (abbreviated SPTL) to target specific chromophores in skin, usually melanin or blood.  The lasers damage the chromophores by selectively heating them while leaving surrounding tissue unharmed.  When treating unwanted hair, for example, the melanin in the hair follicles is targeted and damaged which results in the disruption of hair growth and regeneration.

A diode laser can be complemented by cooling technology, or other pain reducing methods which improve treatment efficacy and patient comfort. These unique characteristics make the diode laser the most suitable technology for laser hair removal, enabling safe and effective treatment of all skin and hair types, in all body areas.

810nm diode laser principle


808nm diode laser hair removal equipment introduction:

Wavelength810nm / 755+810nm / Triplewave
Laser output800W1600W
Spot size12*20mm15*40mm
Energy density1~62J/cm21~40J/cm2
Pulse width10~300ms1~200ms
Repetition rate1~15Hz
Sapphire cooling-4~4℃
Operate interface8’’ True color touch screen
Cooling systemAir compressor cooling system
Power supplyAC110V or 230V, 50/60Hz
Dimension56*38*110cm (L*W*H)


808nm diode laser hair removal equipment Advantages:

1 US origin Diode module with output energy of 800W and 1600W.

2 High power density, short pulse width.

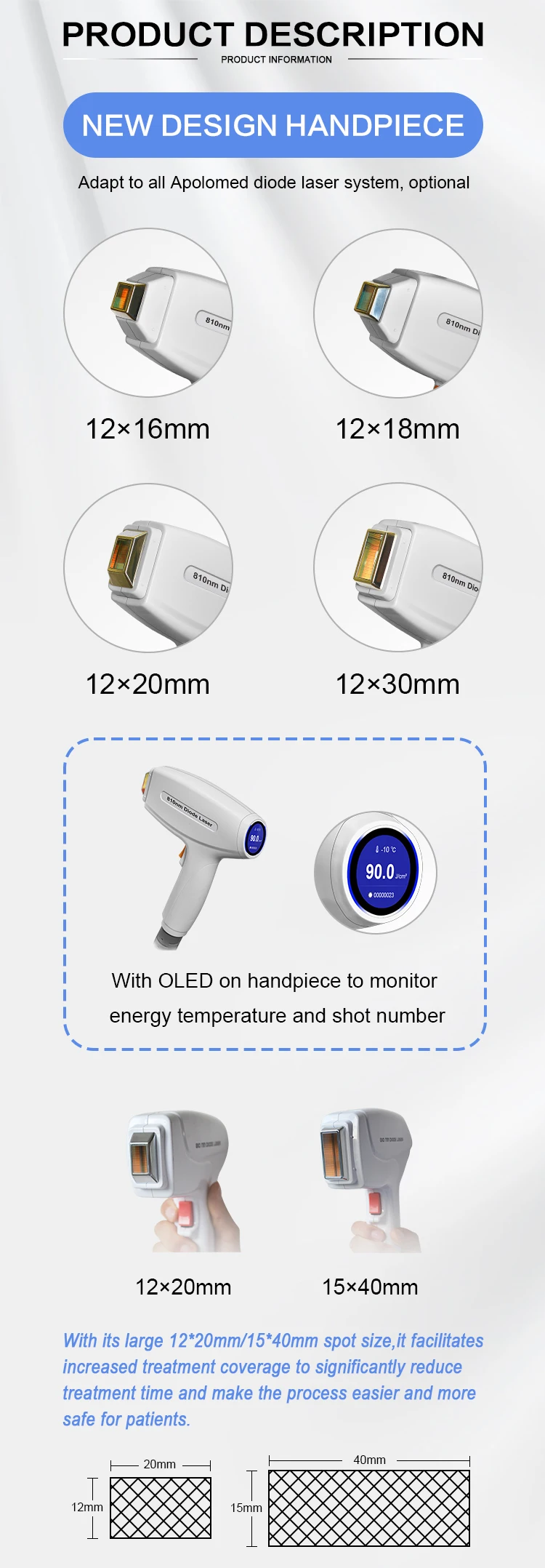

3 Two spot size optional for different area treatment: 12x20mm and 15x40mm.

4 Modularized design for convenient maintenance.

5 Air compressor cooling system and cold sapphire window lead the light guide’s temperature is reduced to 4℃ during system operation.

6 Apply operation system (Android, RTL) is capable for more functions of saving customer database, developing applications and customize interface.

User friendly touchable operate interface with standard mode and professional mode

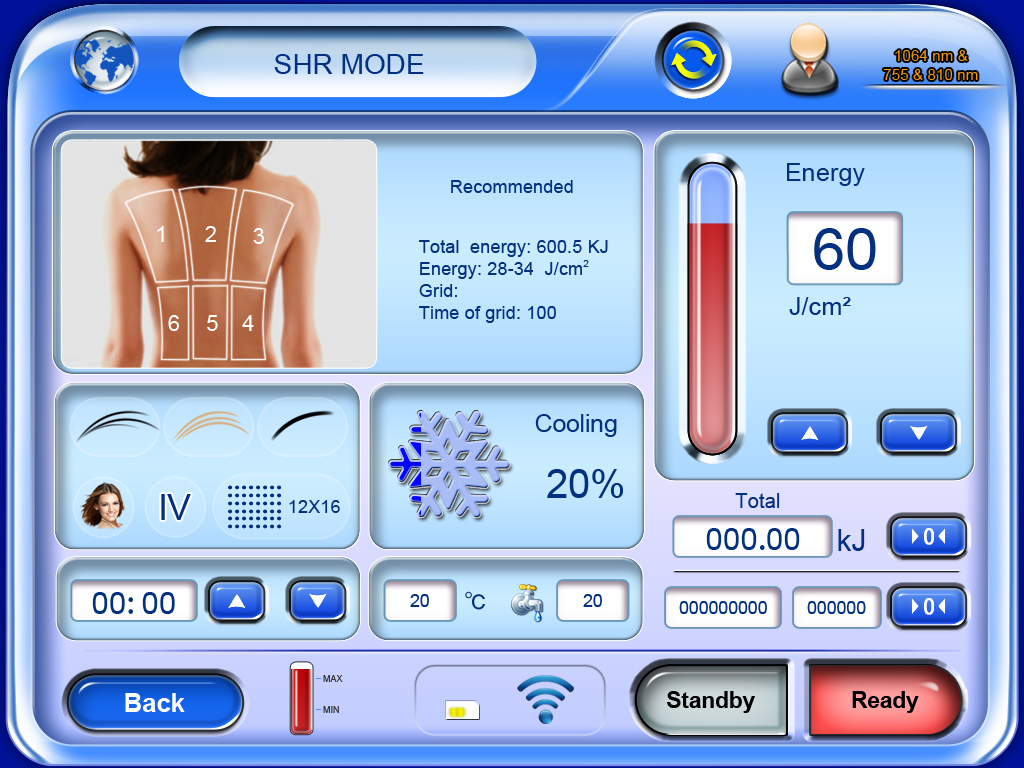

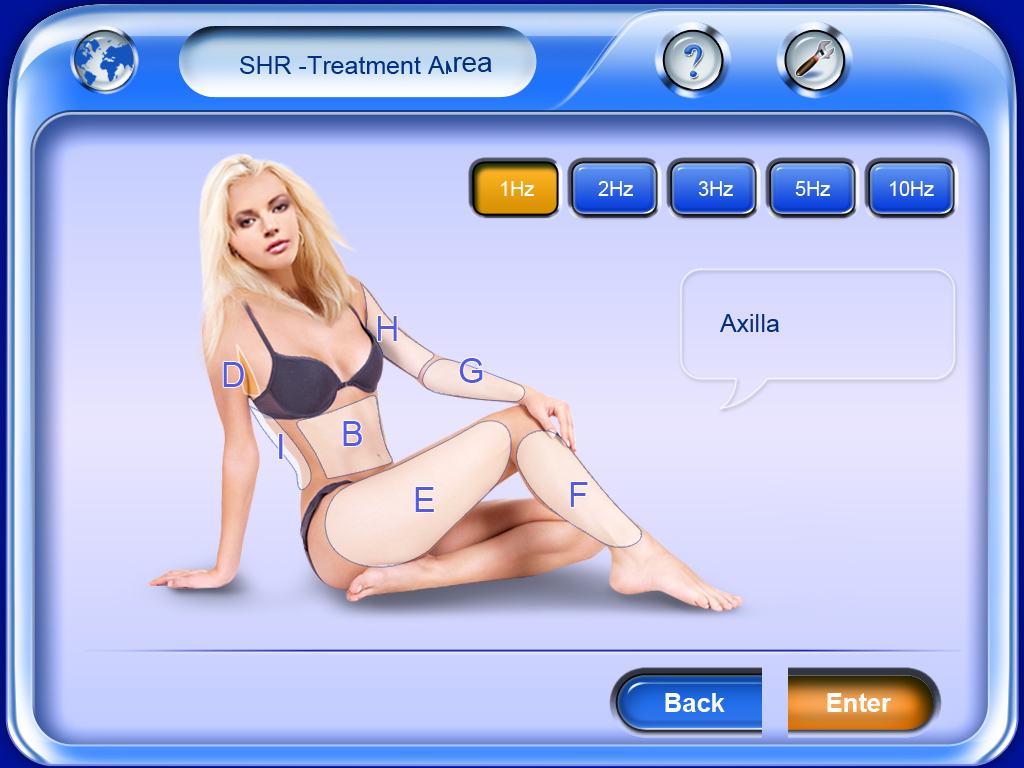

                            810nm diode laser operator interface      810nm diode laser interface

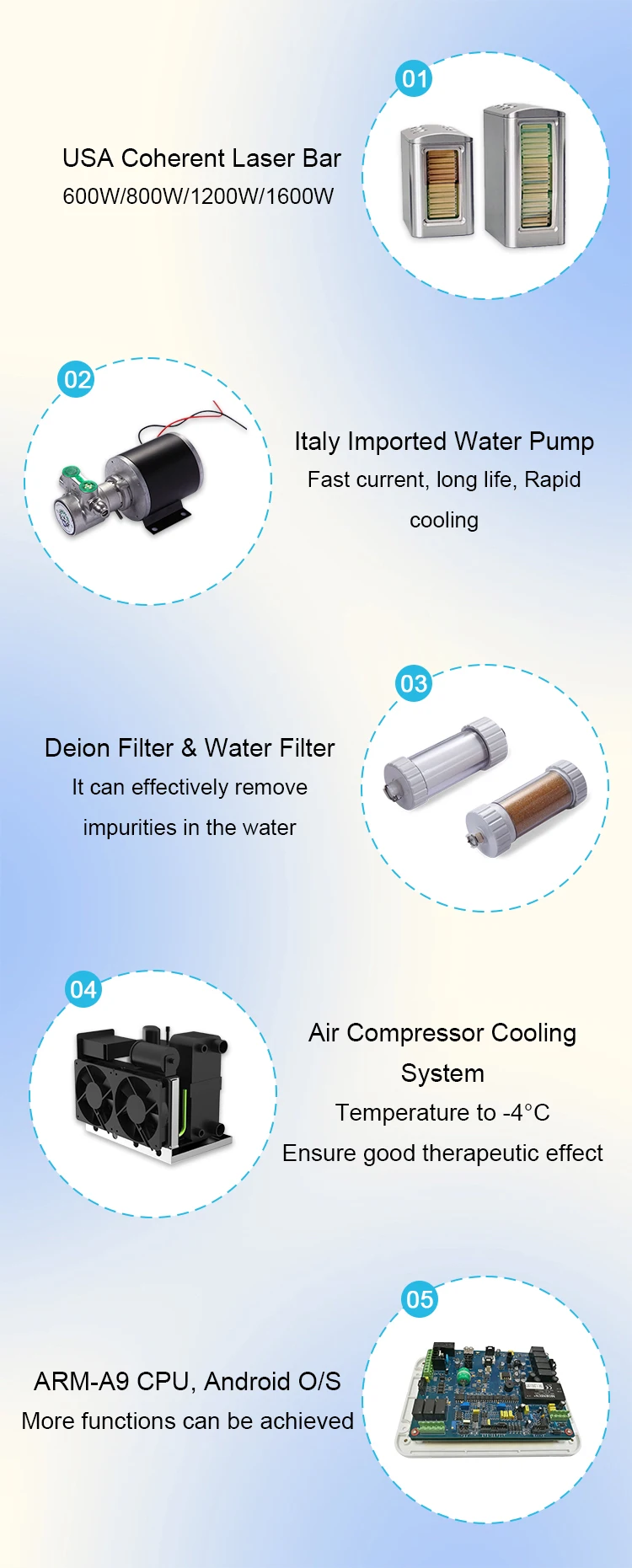

Excellent cooling system
1 Super cooling:  with 450W compressor which ensure device with amazing cooling result and enables continuous 24 hours working.
2 Air Circulation: high speed air fun with temperature sensor,  twirling speed of  fun is automatically adjusted according to temperature.
3 Semi-conductor cooling for handpiece: andpiece can quickly cool in one minute for comfortable treatment.
4  Water filter system designing makes sure the running water inside machine is clean, which can protect handpiece diode array and prolong lifesapn.

                810nm diode laser air compressor cooling        810nm diode laser water filter

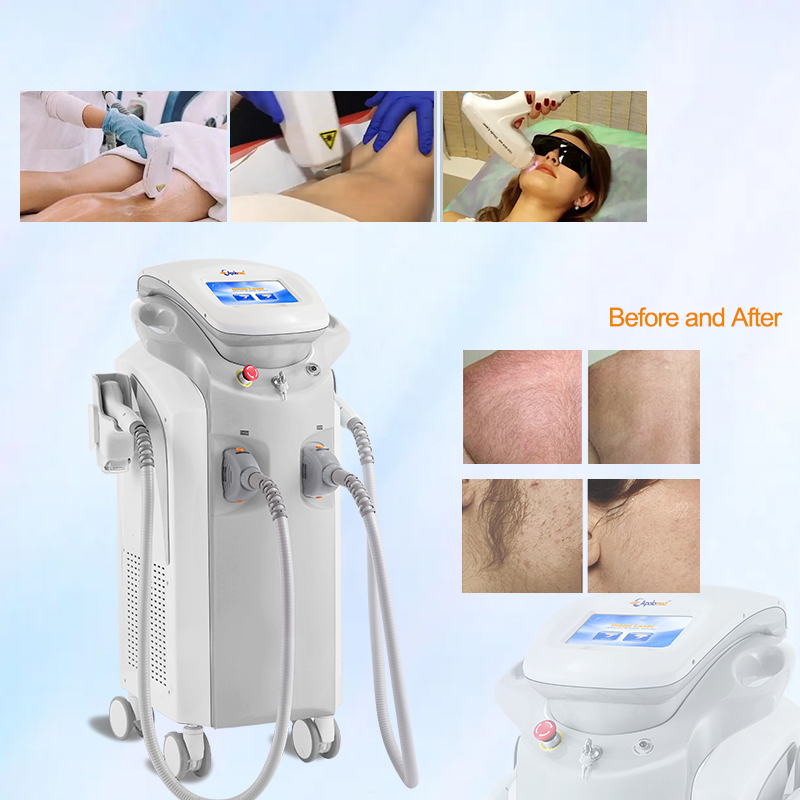

Before / After

808nm diode laser hair removal equipment Advantages:
