TUV Medical CE High Energy Density Diode Laser
You are here: Home » Devices » 需隐藏的分类 » TUV Medical CE High Energy Density Diode Laser

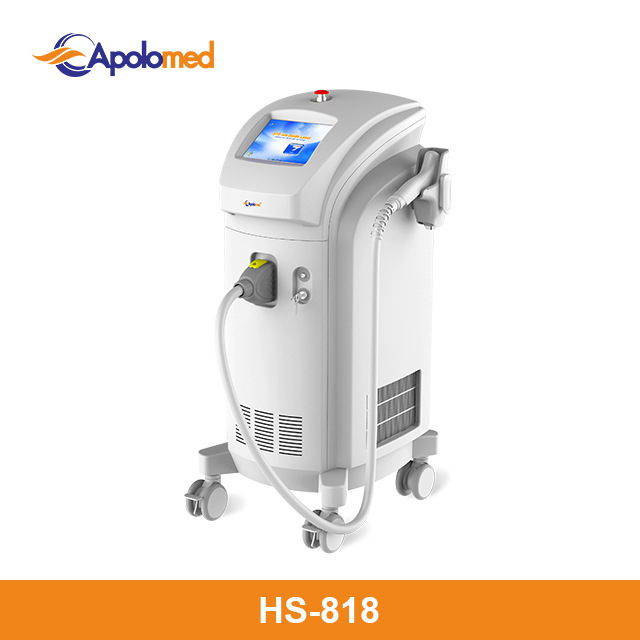

TUV Medical CE High Energy Density Diode Laser

  • TUV medical CE and USA FDA 510K: K200118
  • High intensity diode with 1600W power
  • Optimized refrigeration system for more stable energy output and longer machine life span
Availability:
  • HS-818
  • Apolomed

Introduction

High  density diode laser Introduction:

The HS-818 is excelent high energy density hair removal machine.  The key to get pain- free hair removal is to get sufficient  energy (heat)  into hair follicle before it has had time to escape and then stop.  The HS-818 can do this because  it can supply an incredible 60J/cm2 in 40ms and keep on supplying this level of power throughout the working day due  to its excellent cooling system.

The HS-818 2 is an excellent diode hair laser well suited to hospital, clinic and med-spa use.

High Density Hair Reduction Lasers can:

Treat all kinds of hair

Especially treat  finer, grayer, lighter hair

Produce less patient discomfort
Treat a wider range of skin types with less risk

How high energy didoe laser works?

The HS-818 output are high density lasers which means that they concentrate the light energy and can delivery for instance 30J/cm2
in 30ms.  This is a combination of high peak power and concentrated light energy. High Density Lasers – cause very rapid heating of the target so that far less energy is leaked to the surrounding tissue.

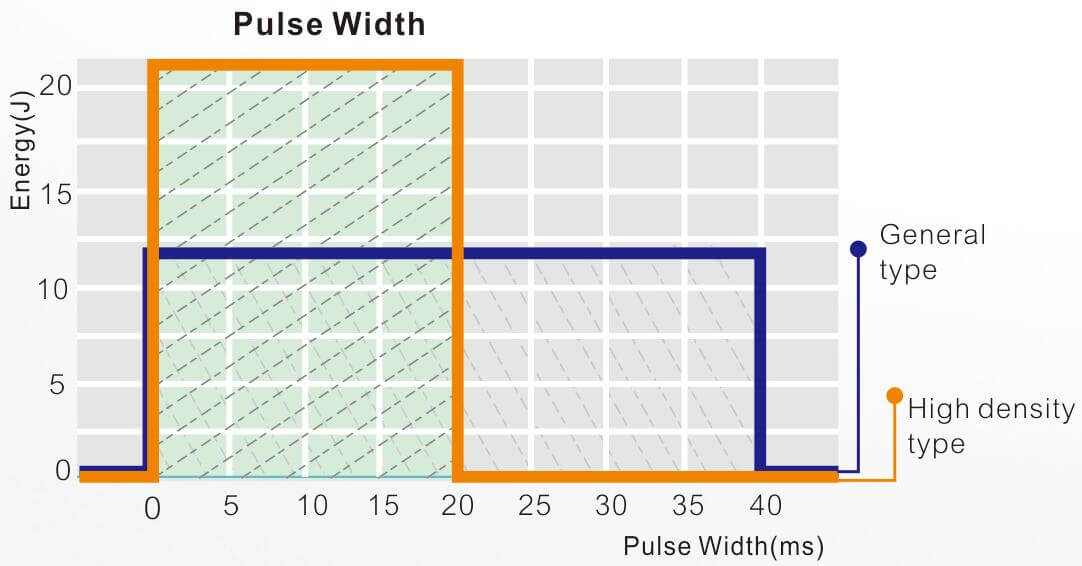

Diode Laser principle


Specification

High  density diode laser technical specifications:

Wavelength810nm/ 755+810nm / Triplewave
Laser output1200W 1600W
Spot size10*10mm12*14mm
Energy density1~60J/cm21~72J/cm2
Repetition rate1-15HZ
Pulse width10-400ms
Sapphire cooling-4~4℃
Operate interface9.7’ True color touch screen
Cooling systemAir compressor cooling system
Power supplyAC 110V or 230V, 50/60Hz
Dimension61*44*111cm (L*W*H)
Weight55Kgs


Advantages

High  density diode laser Advantages:

High quality diode stacks:

All of diode stacks are made to the same high quality imported from US original diode array module to ensure consistency and accuracy.  Experience has shown that this is the only way to ensure a long diode life and is part of APolomed laser premium product quality.


1600W 12x14mm big spot handpiece with high power to ensure enough energy for hair removal and less treatment session. While others are low level 300W/600W diode laser.

                 high energy diode laser handpiece         diode laser handpiece2



Unique Software:

User Friendly Operate interface with 4 treatment modes: Professional mode/ SHR mode/ Stack mode/ SSR mode

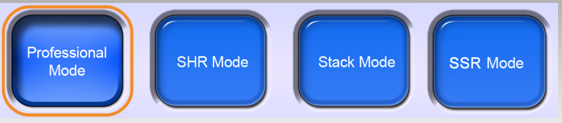

                          diode laser treatment mode


SHR mode / Standard mode: for operator without much experience, with preset recommended parameter, which can avoid unnecessary treatment mistake and ensure safe treatment. It is best choice for beauty salon and spa.

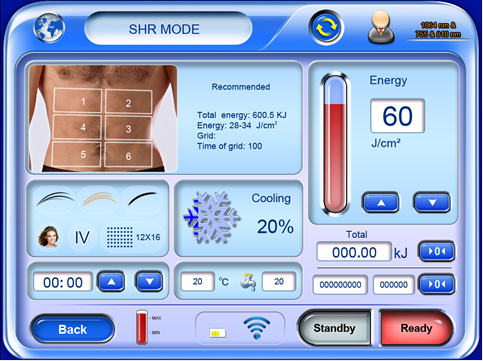

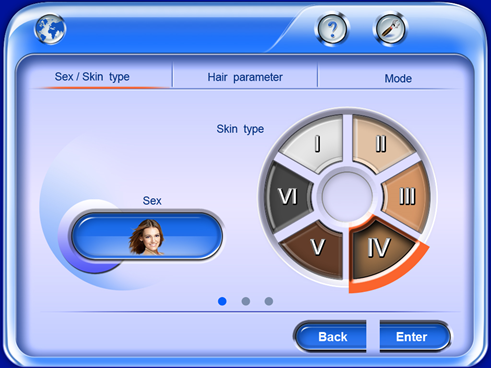

                  HS-818 diode laser operator interface      HS-818 diode laser operator interface 2



Good performance

2400W medical standard power supply, which can pass EMC with stable quality and high power output.

The water pump made in Italy with high speed fan, it can work with long lifetime and high flow 5 Liters water.


                 810nm diode laser power     810nm diode laser water pump


Easy for maintenance:

1 Metal frame : anti-rust galvanized material, all components be assembled and fixed firmly on the metal frame;

2 Detachable casing: the casing could be detached to pieces, it's convenient for maintenance;

2 Good ABS material: the casing is ABS material, very strong and solid. It's coated under Electromagnetic radiation lacquer.





Before / After

High  density diode laser before/ after:
