Product Description
Basic info.:

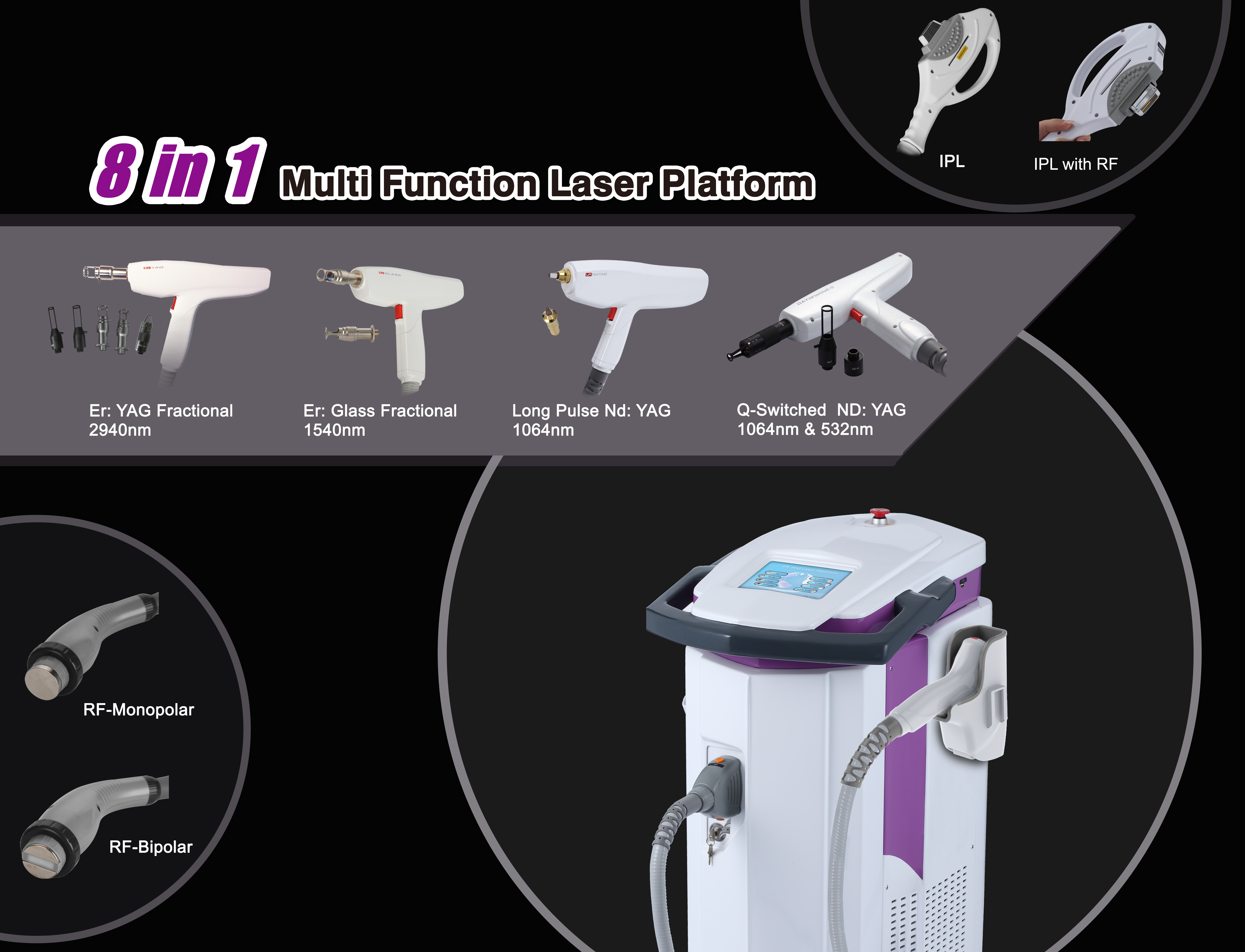

The multifunction beauty machine can support 8 different handpieces:
1. IPL: Permanent Hair Removal, Photorejuvenation, Remove Vascular, Pigment and Acne;
2. EPL: Combination IPL and bipolar RF;
3. RF monopolar: Skin Tightening, Weight lossing, Sculpture, Pore Cantracting;
4. RF bipolar: Skin Tightening, Sculpture, Wrinkle Removal, Pore Shrink
5. Q-Switched Nd:Yag laser: Tattoo and pigment removal;
6. 1064nm Long pulse Nd:Yag laser: Permanent Hair Removal for all skin types, Dispel Leg Veins and Vascular lesion;
7. 1540nm Fractional Er:Glass laser: Non-ablative Skin resurfacing, Remove deep winkles and scars;
8. 2940nm Er:Yag laser: Wart and Nevus removal, Skin Resurfacing, Wrinkles and Fine lines.
1. 8-in-1 multifunction system available,which combine different technoties in one basic unit.
2. Auto-detect interchangeable handpieces for option.
3. Excellent cooling system with TEC water tank,Italy pump and high speed fans.
4. Multi-languages supported,meets requiremnets of global market.
5. Friendly touchable operate interface with standard mode and professional mode.
6. Interlock design ensure safety treatment environment.
7. Mudularized design for convenienet maintenance.
8. USB and IC card function supported.
Technical specifcation:
| Er:YAG laser Handpiece | 2940nm Er:YAG Fractional ablative laser |
| Energy | 7x7 pixel:12~28mJ/microbeam |
| 9x9 pixel:4~20mJ/microbeam | |
| Beam expander:500~2000mJ | |
| Zoom lens:500~200mJ | |
| Pulse width | 1.5ms,2.0ms,2.5ms |
| Er:Glass laser Handpiece | 1540nm Er:glass fractional laser |
| Energy | 10x10 pixel:30~70mJ/Microbeeam |
| 18x18 pixel:5~25mJ/Microbeam | |
| Pulse width | 10ms,15ms |
| Long pulse laser Handpiece | 1064nm Long pulse Nd:yag laser |
| Pulse width | 10~40ms |
| Repetition rate | 0.5~1Hz |
| Energy density | φ9mm 1~110J/cm2 |
| φ6mm 60~260J/cm2 | |
| φ9mm 150~500J/cm2 |
| Q-Switch laser Handpiece | 1064/532nm Q-switch Nd:YAG laser |
| Spot size | 1~5mm |
| Pulse width | <10ns(single pulse) |
| Repetition rate | 1~10Hz |
| Max.Energy | 2400mJ(φ),4700mJ(φ6+φ7) |
| IPL/EPL Handpiece | IPL/EPL |
| Spot size | 15*50mm |
| Wavelength | 420~1200nm |
| Filter | 420/510/560/610/640~1200nm |
| 690~950nm for SHR | |
| IPL/EPL energy | 10~60level |
| RF Handpiece | RF Monopolar or RF Bipolar |
| Output power | 200W |
| RF tip | φ18mm,φ28mm,φ37mm |
| Operate interface | 8" true color touch screen |
| Cooling | Advanced Air&TEC water cooling system |
| Power supply | AC 100V or 230V, 50/60Hz |
| Dimension | 65*48*115cm(L*W*H) |
| Weight | 72Kgs |
