30W Portable Spider Vein Removal 980nm Diode Laser
You are here: Home » Devices » Devices » 30W Portable Spider Vein Removal 980nm Diode Laser

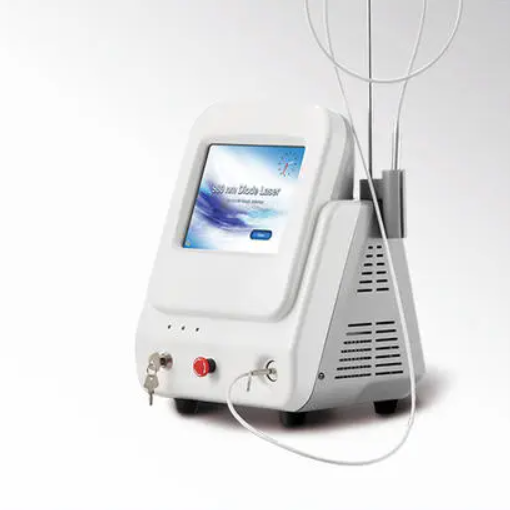

30W Portable Spider Vein Removal 980nm Diode Laser

Availability:
  • HS-890A

  • Apolomed

Product Description

Products Description
Specification
Vascular laser model
HS-890
Wavelength
Diode laser 980nm
Laser output power
15W or 30W
Output modes
CW, Single or Repeat pulses
Pulse width
5-400ms
Repetition rate
1~50HZ
Transmission system
Fiber of 300um with SMA 905 connector
Operate Interface
8 inch touch screen
Warranty
Technical support forever
Voltage
AC 100V or 230V, 50/60HZ
Demension
28*27*37cm (L*W*H)
Weight
8Kgs


Application

1. Vascular lesions
2. Proliferative lesion
3. Spider veins Liner
4. angitelectasis
5. Cherry angiomas


Working theory

Principle of 980nm diode laser: Based on theory of "selective laser photothermal", 980nm diode laser system uses specific 980nm wavelength to penetrate into skin for vasular treatment. The laser irradiation lesion, under laser irradiation, hemoglobin and red pigment capillaries to maximize absorption of laser energy, solidification occurs, blocking blood vessels, capillaries shrink, leading to intravascular coagulation, finally metabolic degradation. Due to the specific 980nm wavelength of the laser, it assures normal intact skin tissue architecture in the greatest degree during the vascular treatment and also ensures a good therapeutic effect without damaging superfacial skin.


Advantage

1. The advanced laser technology for red blood veins/vascular/spider veins removal in contrast with high frequency in the market.
2. 15 or 30W energy to satisfy different requirements.
3. Three modes: CW Pulse, Repeat Pulse and Single for optional.
4. Short time operation, no injury, no bleeding, no burning, redness or scar.
5. The obvious effectiveness: Only one or two treatments are required
6. Output power calibration at end of fiber
Treatment
Before & After
