980nm Diode Laser Vascular Removal
You are here: Home » Devices » 980nm Diode Laser » 980nm Diode Laser Vascular Removal

980nm Diode Laser Vascular Removal

Model: HS-890A
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, CE 0197, US FDA
Widely use: Hospitals, medical centers, plastic surgery centers, dermatologists
Operator interface: Simple mode and professional mode
Operation system: ARM-A9 (Android/OS)
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:

PRODUCT VEDIO



DESCRIPTION

APPLICATION

Vascular Lesions Therapy

Spider Veins

Cherry Angiomas

Proliferative Lesions

Linear anitelectasis

Pain relief

Physiotherapy


PRINCIPLE

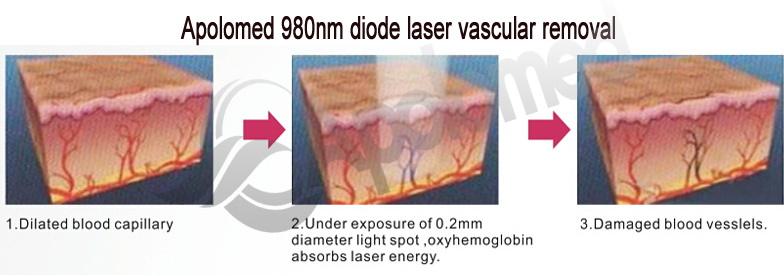

Based on theory of “selective laser photothermal”, 980nm diode laser system uses specific 980nm wavelength to penetrate into skin for vascular treatment. The laser irradiation lesion, under laser irradiation, hemoglobin and red pigment capillaries to maximize absorption of laser energy, solidification occurs, blocking blood vessels, capillaries shrink, leading to intravascular coagulation, finally metabolic degradation.

Due to the specific 980nm wavelength of the laser, it assures normal intact skin tissue architecture in the greatest degree during the vascular treatment and also ensures a good therapeutic effect without damaging superficial skin.

             980nm diode laser vascular


ADVANTAGE

Our HS-890A diode laser vascular device is medical TUV medical CE approved and USA FDA cleared.  it is 30W output power is precise and elegant solution to the removal of threat veins from the face and body.

  • Pulse widths adjustable from 5 – 400ms plus continuous mode

  • Repetition rate up to 50Hz

  • Portable design and weighs only 8kgs

  • True colour touch screen control

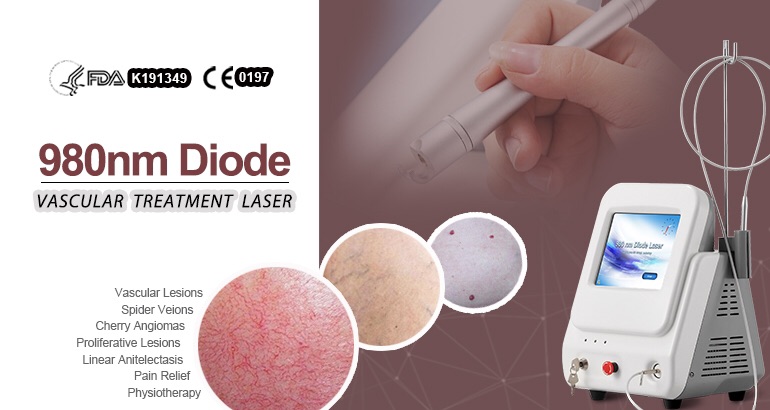

                     980nm diode laser vascular removal machine

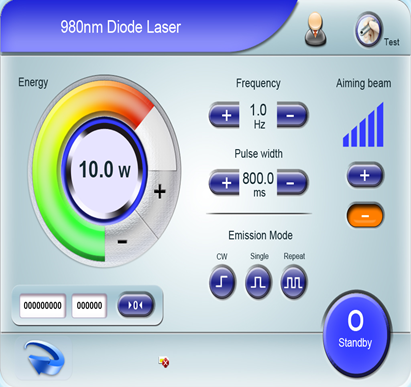

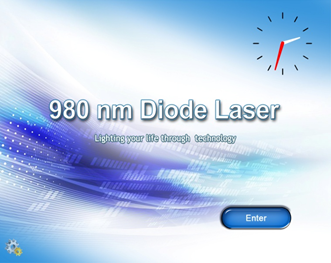

Our operating system is the Android based touch screen intuitive and easy to use,  is 8“ True color Touch screen.

 There are three mode constant Wave (CW), single pulse and continuous pulse.


                     980nm diode laser vascular 1   980nm vascular diode laser



It is latest solid state laser and fibre optical technology for optimum reliability and portability. Key benifit of  our 980nm diode Laser veins removal machine:

  • Different 980nm Diode laser fiber output power 15W/30W for different treatment

  • The intuitive, high-resolution display makes set-up quick and easy

  • Portable machine with small footprint, versatile, powerful

  • Golden Standard for Vascular Treatment

  • 30-45 minutes treatment procedure, no downtime

  •  Lightguide adjustable function make sure the exact treatment


BEFORE / AFTER PHOTO


                  Before after photo

SPECIFICATION

Wavelength

980nm

Laser output power

2~30W

Output modes

CW, Single or Repeat pulse

Pulse width

5, 10~400ms

Pulse Repetition Rate

1, 2, 3, 5, 10~50Hz

Single pulse Energy

0.1~12J

Repeat pulse Power

0.1~18W

Transmission system

Fibers of 300 m, with SMA 905 connector

Aiming beam

Diode 650nm(red),≤2mW

Cooling system

Air cooling

Control mode

Control mode

Power supply

AC 100~240V, 50/60Hz

Dimensions

28*27*37cm(L*W*H)

Weight

8Kgs
