CE Approved 980nm Diode Laser With Fiber
You are here: Home » Devices » 需隐藏的分类 » CE Approved 980nm Diode Laser With Fiber

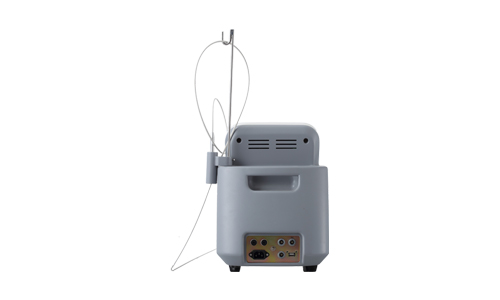

CE Approved 980nm Diode Laser With Fiber

Apolo 980 nm diode laser machine for physiotherapy and proliferative lesion veins removal
Availability:

Product Description

980nm diode laser vascular removal device


Apolo 980 nm diode laser machine for physiotherapy and proliferative lesion veins removal

980nm diode laser spider vein vascular lesions removal machine with 30W output power

Product details

Wavelength Diode laser 980nm
Laser output power 15W or 30W
Output modes CW, Single or Repeat pulses
Pulse width 0.1~800ms
Repetition rate 1~1000HZ
Transmission system Fiber of 300um with SMA 905 connector
Operate Interface 9.7 inch touch screen
Warranty Technical support forever
Voltage AC 100V or 230V, 50/60HZ
OEM/ODM Welcome

Principle of 980nm diode laser:

Based on theory of "selective laser photothermal", 980nm diode laser system uses specific 980nm wavelength to penetrate into skin for vasular treatment. The laser irradiation lesion, under laser irradiation, hemoglobin and red pigment capillaries to maximize absorption of laser energy, solidification occurs, blocking blood vessels, capillaries shrink, leading to intravascular coagulation, finally metabolic degradation. Due to the specific 980nm wavelength of the laser, it assures normal intact skin tissue architecture in the greatest degree during the vascular treatment and also ensures a good therapeutic effect without damaging superfacial skin.

Clinical applications


Vascular lesions
Proliferative lesion
Spider veins
Liner angitelectasis
Cherry angiomas


Advantages of 980nm diode laser machine:

1. The advanced laser technology for red blood veins/vascular/spider veins removal in contrast with high frequency in the market.
2. 15 or 30W energy to satisfy different requirements.
3. Three modes: CW Pulse, Repeat Pulse and Single for optional.
4. Short time operation, no injury, no bleeding, no burning, redness or scar.
5. The obvious effectiveness: Only one or two treatments are required
6. Output power calibration at end of fiber

980nm diode laser vascular removal device
