Endolaser with Fiber 980+1470nm Laser Vascular Therapy Face Lifting Lipolysis Machine
You are here: Home » Devices » Hot sale » Endolaser with Fiber 980+1470nm Laser Vascular Therapy Face Lifting Lipolysis Machine

Endolaser with Fiber 980+1470nm Laser Vascular Therapy Face Lifting Lipolysis Machine

Model: HS-895
Brand name: Apolomed
Certificate: ISO 13485, CE 0197, US FDA 510k191349
Widely use: Hospitals, medical centers, plastic surgery centers, dermatologists
Output modes: CW,Single or Repeat pulse
Operation system: ARM-A13 CPU,Android O/S 11,HD screen(2k:1920*1080)
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:
  • HS-895

  • Apolomed

Principle

980nm Laser for treating spider veins

The 980nm wavelength is excellent for treating spider veins because it penetrates to an effective depth,is optimally absorbed by blood(hemoglobin) and water,and has minimal melanin absorption.In fact,980nm light is absorbed by skin pigment about on-third as much as the 810nm wavelength,allowing it to target blood vessels while avoiding the skin's melanin.

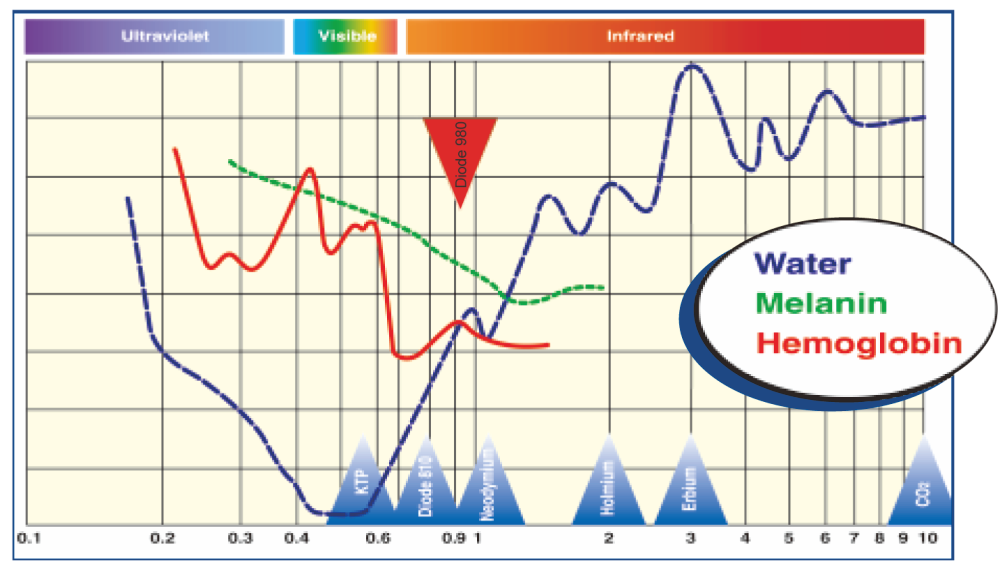

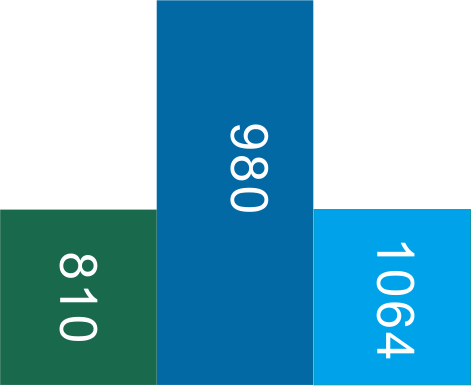

           wavelength         Hemoglobin absorption


1470nm Laser

The 1470nm diode laser is strongly absorbed by tissue but penetrates onlu 2-3mm deep,which means it delivers very concentrated effects and causes virtually no harm to the surrounding healthy tissue.


The 1470nm laser is highly efficient for surgical cutting because its energy is absorbed by both hemoglobin and water in the tissue,concentrating heat in a very small area.This results in rapid vaporization and breakdown of the target tissue,which is ideal for delicate work on small structures like nerves,blood vessels,or tiny skin lesions.Additionally,because the laser's energy acts directly on vessel walls,it can seal blood vessels completely and evenly,making procedures more thorough,safe,and minimally invasive.

Application

HS-895_13

Vascular veins removal

980nm laser is the optimum absorption spectrum of Porphyrin vascular cells.Vascular cells absorb the high-energy laser of 980nm wavelength,solidification occurs and finally dissipated.

The laser instantly breaks up the hemoglobin in the capillaries,converting it into small molecular clusters that are absorbed by the tissues,and the dilated capillaries instantly shrink and coagulate.The originally visible red blood streaks disappear immediately,and the treatment effect is immediate.

红血丝Varicose veins

Nails fungus removal

This laser system is also indicated to increase clear nail growth in patients with onychomycosis(for example,fungal nail infections caused by dermatophytes such as Trichophyton rubrum or T. mentagrophytes,and yeasts like Candida albicans)




Description



Physiotherapy

Analgesic effect,as laser physiotherapy greatly increases the pain threshold.

Anti-inflammatory effect.

The effect of accelerating healing.As a biostimulant,laser can accelerate the healing of injured tissues by increasing metabolism and lead to wound closure without surgical indications.

Relaxation effect,laser physiotherapy has a relaxing and relaxing effect on tissues due to the microthermal effect and increase in metabolism.

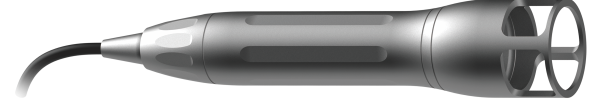

Physiotherapy


Laser Lipolysis

The disposable lipolytic fiber treatment needle accurately locates excuss fat in the body,directly hitting the fat cells in the target tissue,quickly dissolving and liquefying them.

Multiple specifications of optical fibers are available(200um,300um,400um,600um,800um,1000um),among which 200um and 300um micron fibers are very suitable for lipolysis treatment of body parts rich in tiny blood vessels,such as facial lipolysis.

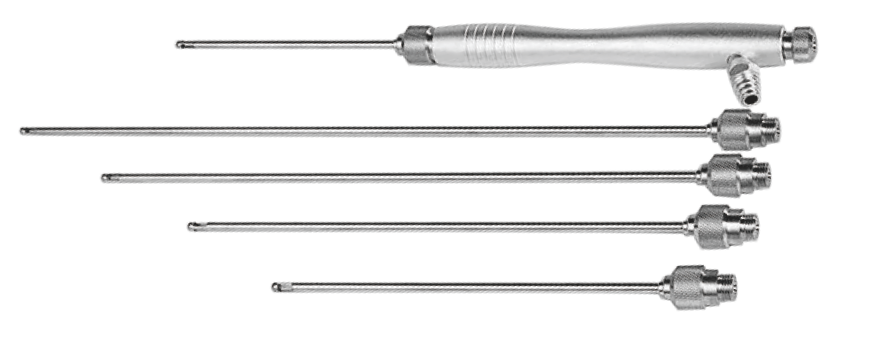

Laser LipolysisHandpiece (optional)



Specifications


Wavelength980nm1470nm
89515W15W
895A30W15W
Output modesCW, single or repeat pulse
Pulse width10~3000ms
Pulse Repetition Rate1, 2, 3, 5, 10~50Hz
Single pulse Energy0.1~12J0.1~6J
Repeat pulse Power 0.1~18W0.1~9W
Transmission systemFibers of 200,300, 400,600,800,1000um,with SMA 905 connector
Aiming beamDiode 650nm(red),≤2mW
Cooling systemAir cooling
Control mode11.6'' true color touch screen
Power supplyAC 100V ~240V, 50/60Hz
Dimension40*44*34cm(L*W*H)
Weight20.5Kgs

*ARM-A13 CPU,Android O/S 11,HD screen(2k:1920*1080)


Advantages

Medical CE approved

Max.30W energy output 980nm diode system

Multiple treatment heads to choose from,meet different treatement needs

ARM-A13 CPU,Android O/S 11,HD screen(2k:1920*1080)


Multiple Advantages

Golden Standard for Vascular Treatment
30-45 minutes treatment procedure, no downtime.

Minimally invasive technology,fast recovery,not easy to leave surgical scars.

It directly acts on the target tissue,and the effect is intuitive.

Temperature monitoring system to ensure instrument and patient safety.

Multiple therapeutic handpiece to meet different functional needs.

Independently designed integrated circuit with laser system,the quality is reliably guaranteed.
