IPL SHR HS-310C
You are here: Home » Devices » IPL SHR » IPL SHR HS-310C

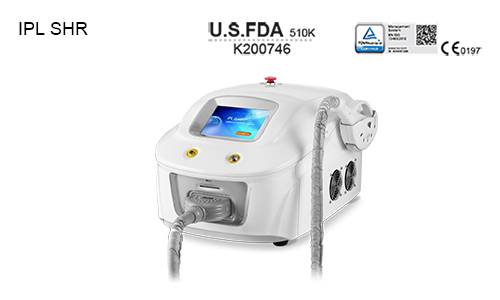

IPL SHR HS-310C

Model: HS-310C
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS, CE 0197, US FDA
Widely use: Hospitals, medical centers, plastic surgery centers and beauty salons
Operator interface: Simple mode and professional mode
Operation system: ARM-A9 (Android/OS)
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:

PRODUCT VEDIO



INTRODUCTION

APPLICATION

  • Permanent Hair removal

  •  Skin Rejuvenation

  • Acne removal

  • Skin Toning

  • Epidermal Pigment removal

  • Vascular treatment

  • Spots and Freckles removal

  • Skin firming and tightening

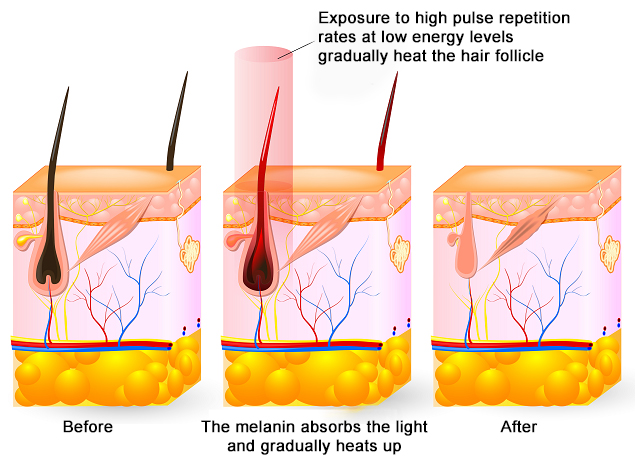

PRINCIPLE

Intense pulsed light (IPL) is a type of intensive, broadband, incoherent light source which has a wavelength spectrum of 420 nm ~1200 nm. The PL has a wide application in non-ablative therapies. IPL treatment is more effective, with no downtime and can make the patients get recovered more quickly.


                 ipl SHR principle

ADVANTAGE

Apolomed IPL SHR HS-310C is professional compact IPL with BBR function. It is medical TUV CE medial approved and USA FDA cleared. It's most popular device for beauty salon or studio because of its versatility:

  • Permanent hair removal

  • Acne treatment

  • Epidermal pigment removal

  • Spots and freckle removal

  • Skin rejuvenation

  • Skin toning

  •  Vascular treatment.


In-motion IPL SHR well favored by users because its fast and effective treatment in hair removal.  But actually, now we have In-motion BBR function added in IPL SHR device, which can for fast whole body rejuvenation & skin toning up, like back, arm and legs.


                              IPL SHR technology 310C 3.9

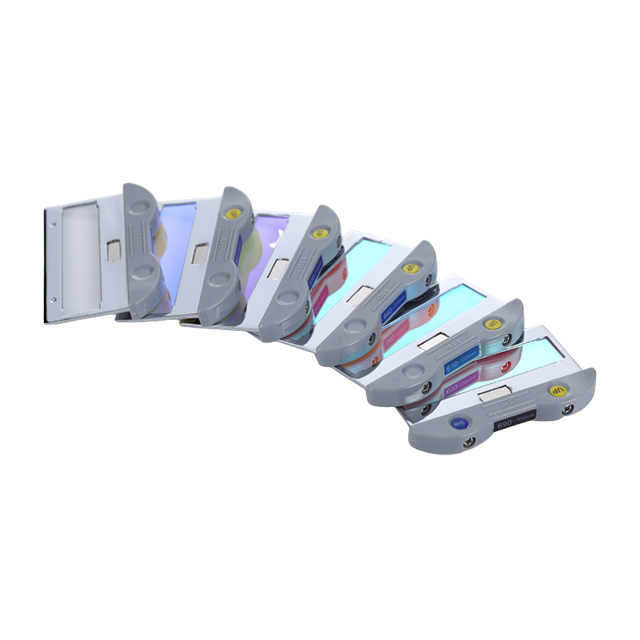

INTERCHANGEABLE FILTER

We have a complete range of changeable filters instead of fixed one which is easier of installation and cost-effective:   420/510/560/610/640~1200nm and 610~980nm for SHR.



                                                  ipl shr filter

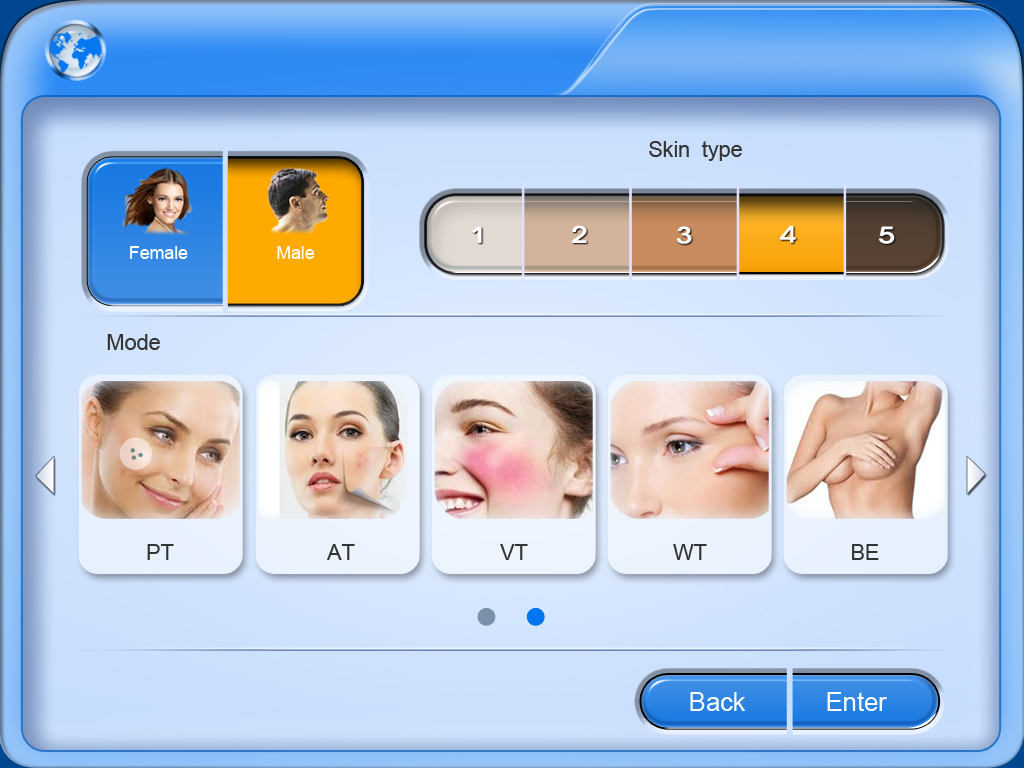

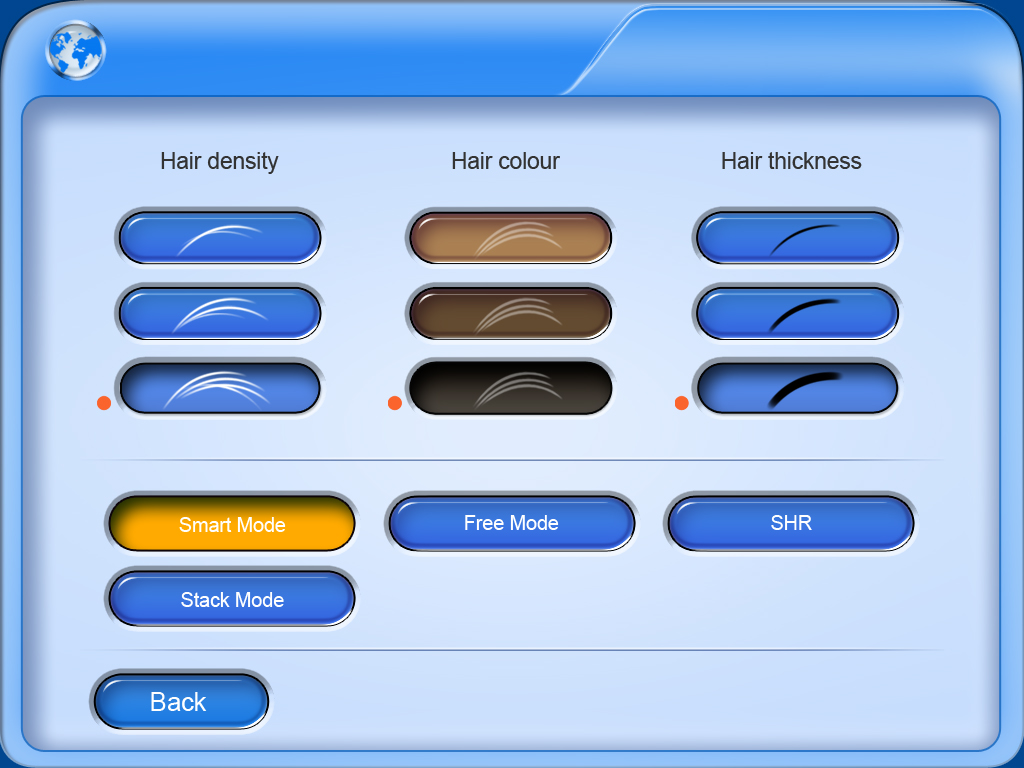

8'' TRUE COLOR TOUCH SCREEN

Arm-A9 9Android O/S with high resolution with standard mode(preset parameter setting) and professional mode.


        2-模式选择-单头时     3A-毛发属性选择+STACK     6-SHR



Arm-A9 (CONTROL BOARD)

With advanced Arm-A9 /OS Operate System, support Software develoment and upgrading/Database managemen/Powerful factory-setting/Multi-languages


USB FUNCTION

USB function you can update the software simply and automatically.


IC CARD FUNTION

 To control shot number and expiry period. You can set the expiry date and shots number to control valid time of system operation. Thus you can have derivative cooperation ways: rental/  Installment / Control the after service.

SPECIFICATION

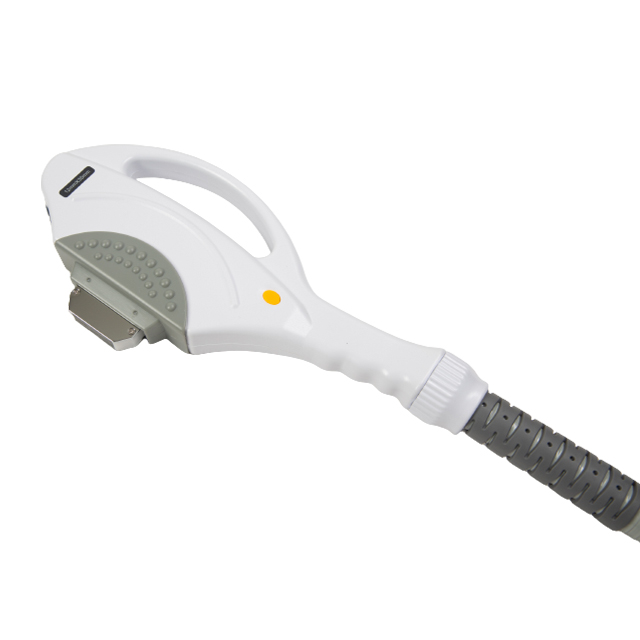

Handpiece

1*IPL SHR / EPL

Spot size

12*35mm, 15*50mm

Wavelength

420~1200nm

Filter

420/510/560/610/640~1200nm, 690~950nm, SHR

IPL energy

1~30J/cm² (10~60 level)

SHR repetition rate

1~5Hz

RF output power

200W (optional)

Operate interface

8" True color touch screen

Cooling system

Advanced Air & Water cooling system

Power supply

AC 110V or 230V, 50/60Hz

Dimension

63*46*42cm (L*W*H)

Weight

37Kgs
