Long Pulse Fractional Multiplatform Fractional Laser

Multi-application medical laser 8 in 1 platform machine IPL Q switch 2940 long pulse nd yag laser
Availability:

Product Description

HS-900 1


Basic info.:

Apolo multi-function platform can be adapted different handpieces all in one machine. With interchangable technology, the system can distinguish the handpieces automatically. There is no need to worry about misoperation because only the right corresponding system turn to active with its handpiece. The client can have part of or all available handpieces based on their actually needs.


Multi Function Laser Platform advantages:

1. 8-in-1 multifunction system available,which combine different technoties in one basic unit.
2. Auto-detect interchangeable handpieces for option
3. Excellent cooling system with TEC water tank,Italy pump and high speed fans.
4. Multi-languages supported,meets requiremnets of global market.
5. Friendly touchable operate interface with standard mode and professional mode.
6. Interlock design ensure safety treatment environment.
7. Mudularized design for convenienet maintenance.
8. USB and IC card function supported.


Technical specifcation:

Model HS-900
Power Supply 100/110V or 230/260V, 50~60HZ
Dimension 65cm *48cm *115cm( L*W*H)
Weight 65kgs
Operate Interface 8" Ture color touch screen TFT LCD
Cooling  system Air & Water & TEC cooling system
IPL Applications Permanent Hair Removal, Photorejuvenation, Vascular Lesions, Pigment Lesions, Acne
Spectrum 420-1200 nm
Filters 420/510/560/610/640nm (Standard); 480/585/690/755 (Optional)
Energy Density 10-60 Level ( Max. 60J/cm² )
Pulse Duration 2-20 ms
Pulse Delay 5-50 ms
Pulse Characteristic Multiple-Sequential Pulsing, Up to 15 Pulse
Repetition Rate 1-4s
Spot Size 12x35mm (Standard), 12x12mm, 12x50mm, 15x15mm, 15x35mm, 15x50mm(Optional)
E-light (IPL with RF) Applications Permanent Hair Removal, Photorejuvenation, Vascular Lesions, Pigment Lesions, Acne
Spectrum 420-1200 nm
Filters 420/510/560/610/640nm (Standard); 480/585/690/755 (Optional)
Energy Density 10-60 Level ( Max. 60J/cm² )
RF Output Power 200W
Pulse Duration 2-20 ms
Pulse Delay 5-50 ms
Pulse Characteristic Multiple-Sequential Pulsing, Up to 15 Pulse
Repetition Rate 1-4s
Spot Size 12x35mm (Standard), 12x12mm, 12x50mm, 15x15mm, 15x35mm, 15x50mm (Optional)
RF-Monopolar Applications Skin Tightening, Weight lossing, Sculpture, Pore Cantracting
RF Tip ¢18mm, ¢28mm, ¢37mm
RF Frequency 1MHz
RF Output Power 200W
RF-Bipolar Applications   Skin Tightening, Sculpture, Wrinkle Removal, Pore Shrink
RF Tip ¢18mm, ¢28mm, ¢37mm
RF Frequency 1MHz
RF Output Power 200W
Q-Switched ND:YAG Fractional Laser Applications Pigmented Nevus, Birthmark, Cholasma, Macula, Telangietasia, Skin Rejuvenation
Spectrum 1064nm /532nm
Energy 600-1500mJ
Pulse Width <10ns
YAG Bar ¢6mm+¢7mm
Pulse Characteristic Multiple-Sequential Pulsing
Repetition Rate Up to 10 Hz
Spot Size 1-8mm
2940nm Er:YAG Fractional Laser Applications Wart and Nevus removal, Skin Resurfacing, Wrinkles and Fine lines, Photodamge
Spectrum 2940nm
Energy 7x7 Pixel: 10-26mJ/microbeam;  9x9 Pixel: 5-15mJ/microbeam;
1540nm Er:Glass Fractional Laser Applications   Skin resurfacing, Srugical scars, Strech marks, Acne Scar, Melasma, Whrinkle
Spectrum 1540nm
Energy 10x10 Pixel: 30-70mJ/microbeam;  18x18 Pixel: 5-25mJ/microbeam;
Long Pulse ND:YAG 1064nm Applications Permanent Hair Removal for all skin types, Leg Veins, Vascular lesion
Spectrum 1064nm
Energy Density ¢3mm Tip: 10-500J/cm², ¢6mm Tip: 10-125J/cm², ¢9mm Tip: 10-55J/cm²
Pulse Duration 10-40ms
Pulse Characteristic Multiple-Sequential Pulsing,1-3 Pulse
Repetition Rate Up to 1Hz
Spot Size ¢3mm, ¢6mm, ¢9mm

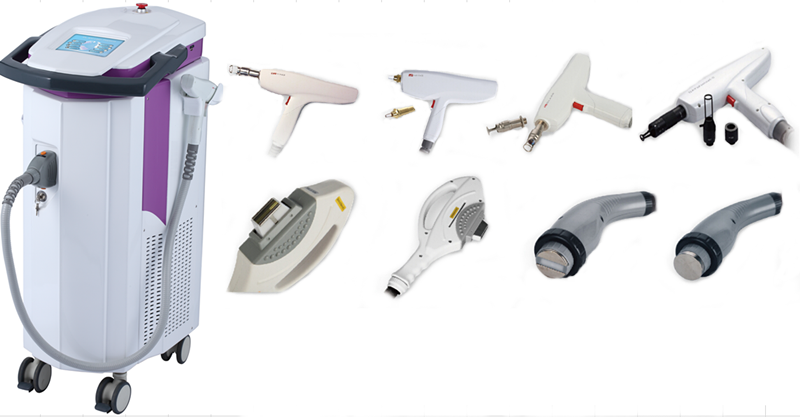

8 different handpiece could be distinguished automatically by the software:

HS-900 all you need all in one
