Multi-application medical laser 8 in 1 platform machine IPL Q switch 2940 long pulse nd yag laser
You are here: Home » Devices » Devices » Multi-application medical laser 8 in 1 platform machine IPL Q switch 2940 long pulse nd yag laser

Multi-application medical laser 8 in 1 platform machine IPL Q switch 2940 long pulse nd yag laser

Multi-application medical laser 8 in 1 platform machine IPL Q switch 2940 long pulse nd yag laser
Availability:

INTRODUCTION

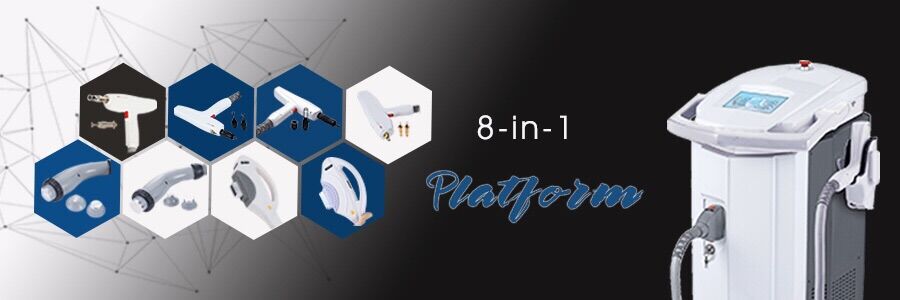

HS-900 8 in 1


Basic info:

Apolo multi-function platform can be adapted different handpieces all in one machine. With interchangable technology, the system can distinguish the handpieces automatically. There is no need to worry about misoperation because only the right corresponding system turn to active with its handpiece. The client can have part of or all available handpieces based on their actually needs.

ADVANTAGE

Multi Function Laser Platform advantages:

1. 8-in-1 multifunction system available,which combine different technoties in one basic unit.
2. Auto-detect interchangeable handpieces for option
3. Excellent cooling system with TEC water tank,Italy pump and high speed fans.
4. Multi-languages supported,meets requiremnets of global market.
5. Friendly touchable operate interface with standard mode and professional mode.
6. Interlock design ensure safety treatment environment.
7. Mudularized design for convenienet maintenance.
8. USB and IC card function supported.


2940


SPECIFICATION

Technical specifications of Apolomed multifunction beauty machine


Er:YAG laser Handpiece2940nm Er:YAG Fractional ablative laser
Energy7x7 pixel:12~28mJ/microbeam
9x9 pixel:4~20mJ/microbeam
Beam expander:500~2000mJ
Zoom lens:500~200mJ
Pulse width1.5ms,2.0ms,2.5ms
Er:Glass laser Handpiece1540nm Er:glass fractional laser
Energy10x10 pixel:30~70mJ/Microbeeam
18x18 pixel:5~25mJ/Microbeam
Pulse width10ms,15ms
Long pulse laser Handpiece1064nm Long pulse Nd:yag laser
Pulse width10~40ms
Repetition rate0.5~1Hz
Energy densityφ9mm 1~110J/cm2
φ6mm 60~260J/cm2
φ9mm 150~500J/cm2

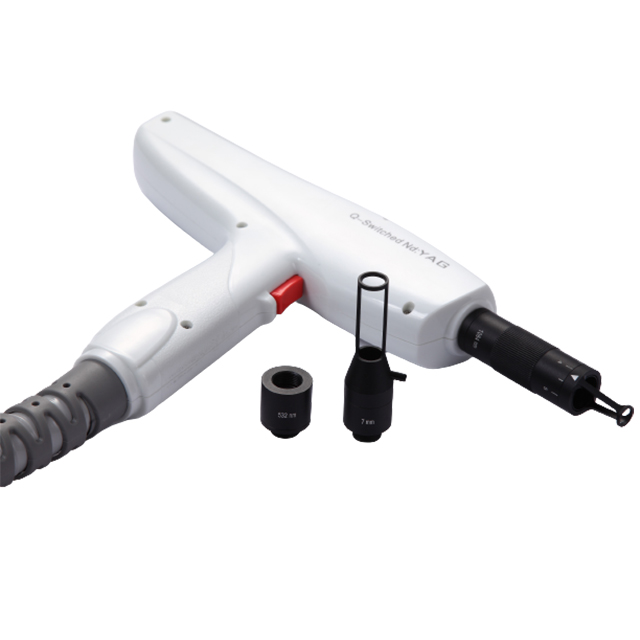

Q-Switch laser Handpiece1064/532nm Q-switch Nd:YAG laser
Spot size1~5mm
Pulse width<10ns(single pulse)
Repetition rate1~10Hz
Max.Energy2400mJ(φ),4700mJ(φ6+φ7)
IPL/EPL HandpieceIPL/EPL
Spot size15*50mm
Wavelength420~1200nm
Filter420/510/560/610/640~1200nm
690~950nm for SHR
IPL/EPL energy10~60level
RF HandpieceRF Monopolar or RF Bipolar
Output power200W
RF tipφ18mm,φ28mm,φ37mm
Operate interface8" true color touch screen
CoolingAdvanced Air&TEC water cooling system
Power supplyAC 100V or 230V, 50/60Hz
Dimension65*48*115cm(L*W*H)
Weight72Kgs
