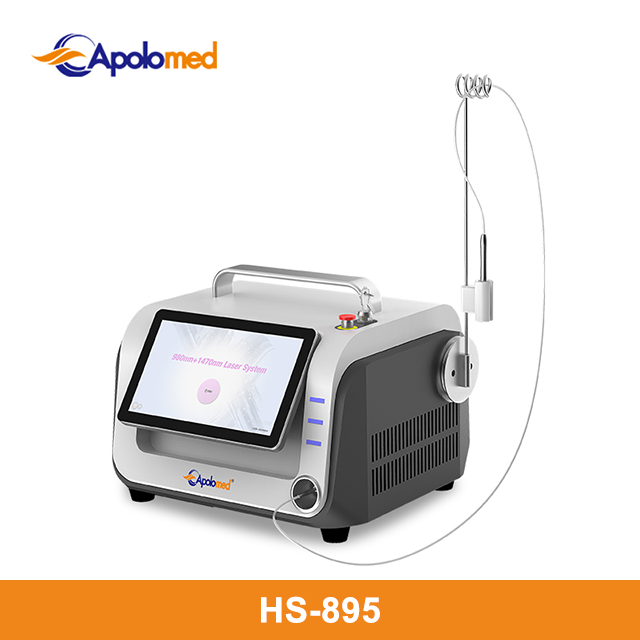

HS-895
Apolomed
Principle
Based on theory of "selective laser photothermal", 980nm diode laser system uses specific 980nm wavelength to penetrate into skin for vascular treatment. The laser irradiation lesion, under laser irradiation, hemoglobin and red pigment capillaries to maximize absorption of laser energy, solidification occurs, blocking blood vessels, capillaries shrink, leading to intravascular coagulation, finally metabolic degradation.
Clinical indication |
Application
APPLICATION
Description
SPECIFICATION
Wavelength | 980nm | 1470nm |
895 | 15W | 15W |
895A | 30W | 15W |
Output modes | CW, single or repeat pulse | |
Pulse width | 10~3000ms | |
Pulse Repetition Rate | 1, 2, 3, 5, 10~50Hz | |
Single pulse Energy | 0.1~12J | 0.1~6J |
Repeat pulse Power | 0.1~18W | 0.1~9W |
Transmission system | Fibers of 400,600,800um,with SMA 905 connector | |
Aiming beam | Diode 650nm(red),≤2mW | |
Cooling system | Air cooling | |
Control mode | 11.6'' true color touch screen | |
Power supply | AC 100V ~240V, 50/60Hz | |
Dimension | 40*44*34cm(L*W*H) | |
Weight | 20.5Kgs |
Advantage
Our endolaser(980+1470nm) vascular device. it is 30W output power is precise and elegant solution to the removal of threat veins from the face and body.
Pulse widths adjustable from 10 - 3000ms plus continuous mode
Repetition rate up to 50Hz
Portable design
True colour touch screen control
Our operating system is the Android based touch screen intuitive and easy to use, is 11.6" True color Touch screen.
There are three mode constant Wave (CW), single pulse and continuous pulse.
It is latest solid state laser and fibre optical technology for optimum reliability and portability. Key benifit of our 980nm diode Laser veins removal machine:
The intuitive, high-resolution display makes set-up quick and easy
Portable machine with small footprint, versatile, powerful
Golden Standard for Vascular Treatment
30-45 minutes treatment procedure, no downtime
Lightguide adjustable function make sure the exact treatment
Advantages for 980nm diode laser for vascular /veins / spider veins removal blood vessels removal machine
Different 980nm Diode laser fiber output power 15W/30W for different treatment.
The intuitive, high-resolution display makes set-up quick and easy
Portable machine with small footprint, Versatile, Powerful
Golden Standard for Vascular Treatment
30-45 minutes treatment procedure, no downtime
Lightguide adjustable function make sure the exact treatment
Apply Android operation system.
