2024 New Design 1060/532nm Picosecond Nd Yag Laser machine for tattoo removal
You are here: Home » Devices » Picosecond Laser » 2024 New Design 1060/532nm Picosecond Nd Yag Laser machine for tattoo removal

2024 New Design 1060/532nm Picosecond Nd Yag Laser machine for tattoo removal

Picosecond laser is being introduced as the first safe and effective aesthetic laser specifically designed to treat tattoos and pigmented lesions. This innovative laser delivers ultra short pulse bursts of energy to the skin in trillionths of a second. These pulse create a photomechamical effect, that target ink while avoiding unmarked tissue. The pulse shatters the ink into tiny, dust-like perticales which are easily eliminated by the body.
Availability:
  • HS-298N

  • Apolomed

Product Description

HS-298N Picosecond Nd:YAG laser Description:


Two pulse mode of picosecond & nanosecond in one unit with wide range of medical & surgical applications.

2.High peak power and ultra short pulse with Min. discomfort and faster recovery time.

3.Stimulate collagen to regenerate and repair scars,improve fine lines.

4.Short pulse duration - 300Ps greater variety of tattoo colors and skin types with minimal downtime.
5.Spot size adjustable from 2-10mm the energy density automatic conversion.
6.Imported 7 jointed, 360° adjustable of articulated imported arm adjustable for easy operation.
7.RF ID / IC management control design for providing different business operations models ( ie. member card, Rental.... )
8.Apply Android operation system, is capable for more functions of saving customer database, developing applications and customize interface.

9.ARM-A13 CPU,Android O/S.

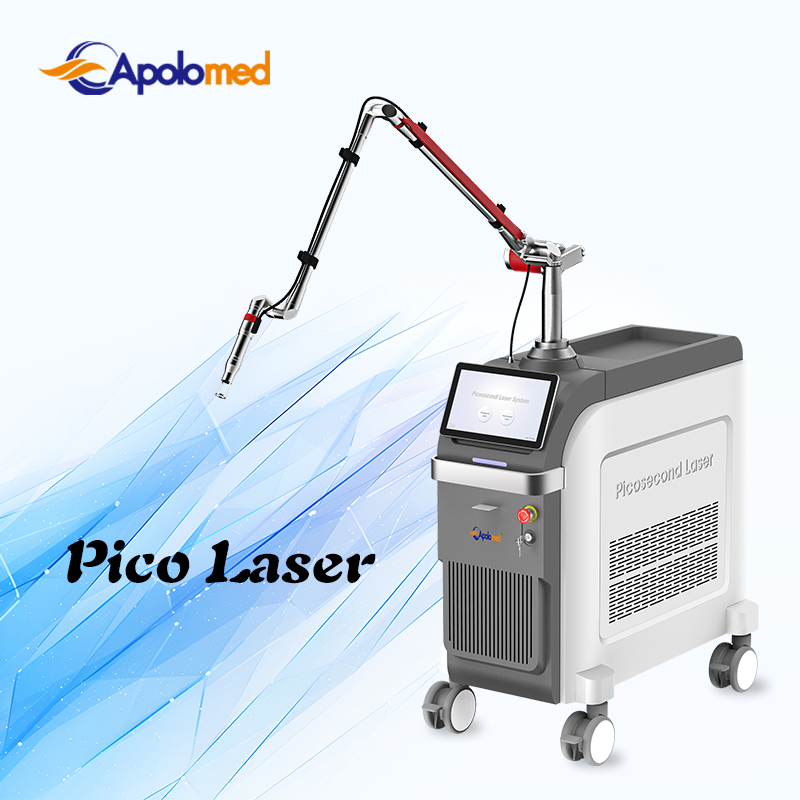

HS-298N_14

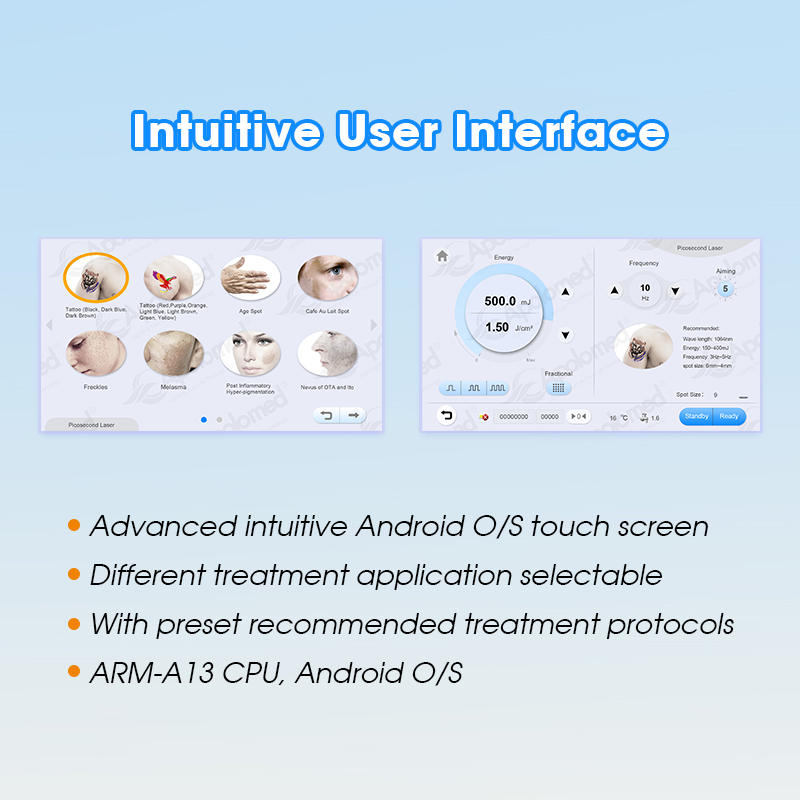

298N用户界面

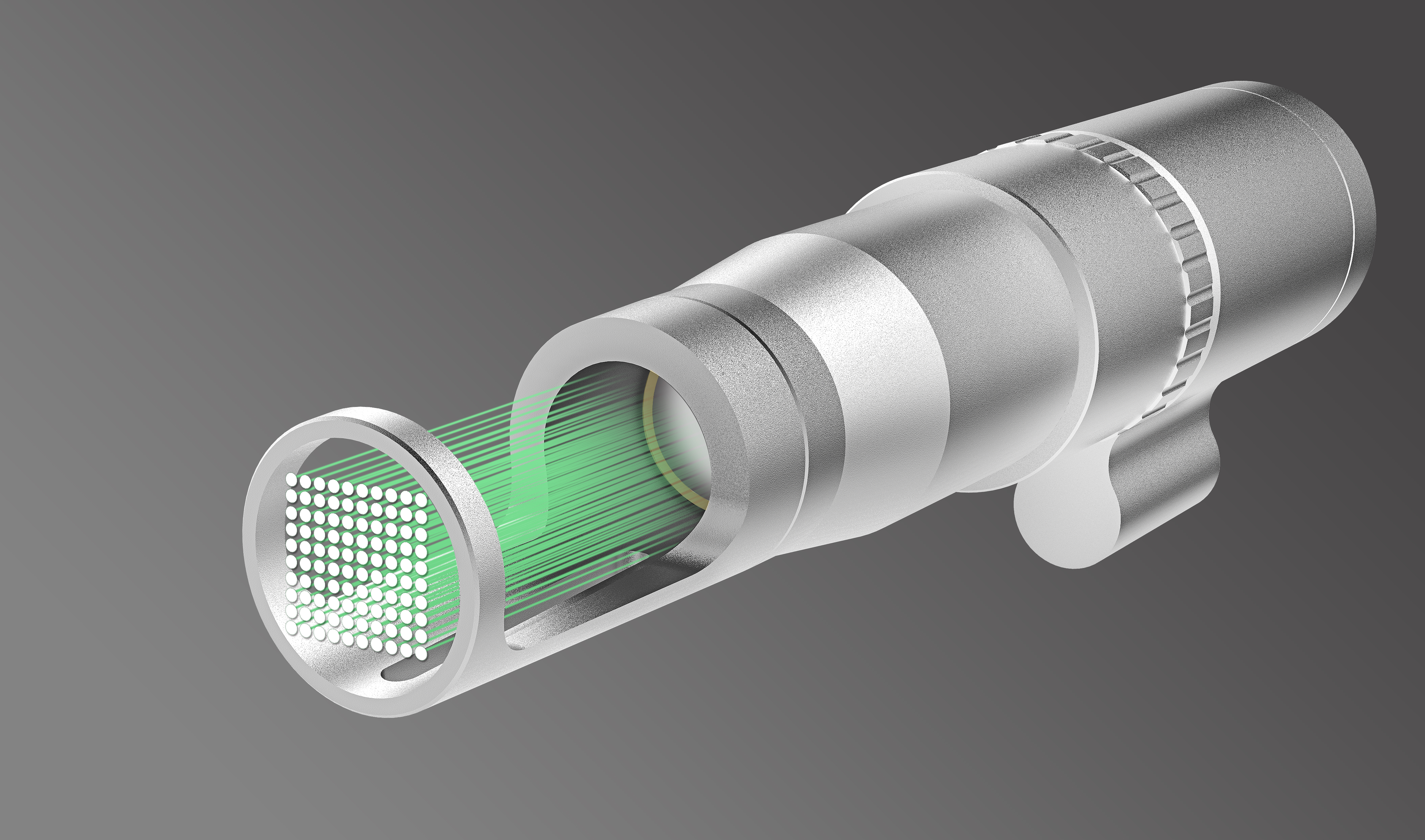

Fractional Lens Array which creates pixel-sized perforations in 7×7、10×10 non-ablative pattern,allowing physicians to deliver higher,evenly distributed energy across the fractional array.At the same time,it can implement non sequential scanning to complete the ilumination ofall light in a jumping manner.This increases the interval time between two adjacent light points,ensuring sufficientheat dissipation for the skin.These micro-injury sites trigger a wound healing process that strengthens collagen and stimulates neocollagenesis,completely rejuvenating the target tissue.

皮纳秒-微焦点阵示意图

Specifications

Model NameHS-298N
Laser TypePicosecond Nd:YAG laser
Wavelength1064/532nm
Beam profileFlat-top mode
Pulse width300ps or 450ps
Pulse energy500mJ:1064nm
250mJ:532nm
Spot size2~10mm
Repetition rate1~10HZ
Optical deliveryArticulated arm
Operate interface11.6" true color touch screen
Aiming beamDiode 650nm(red), brightness adjustable
Cooling systemAir & water Advanced cooling system
Power supplyAC 100~240V, 50/60HZ
Dimension96*48*95cm (L*W*H)
Weight109Kgs

*ARM-A13 CPU,Android O/S 11,HD screen(2k:1920×1080)

Application

Picosecond Nd:YAG laser applications

Tattoo removal(multi-coloured & black)

Vascular spillus

Age Spot

Skin refurfacing: Wrinkle reduction, acne scar reduction, skin toning

Cafe Au Lait Spot

Freckles

Melasma

Post Inflammatory

Hyper-pigmentation

Nevus of OTA and Ito

Skin Rejuvenation

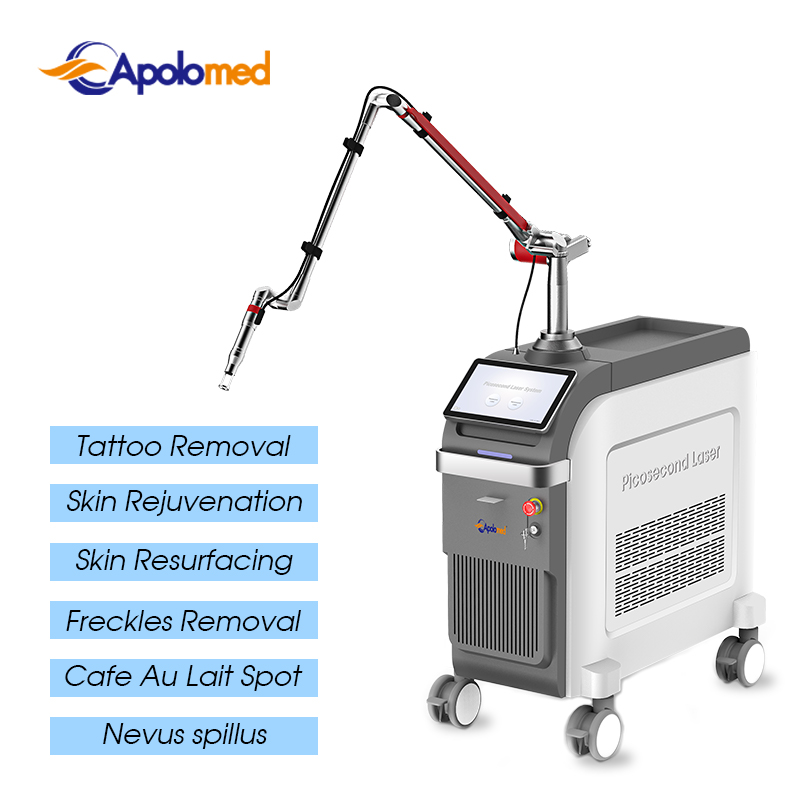

HS-298N_15

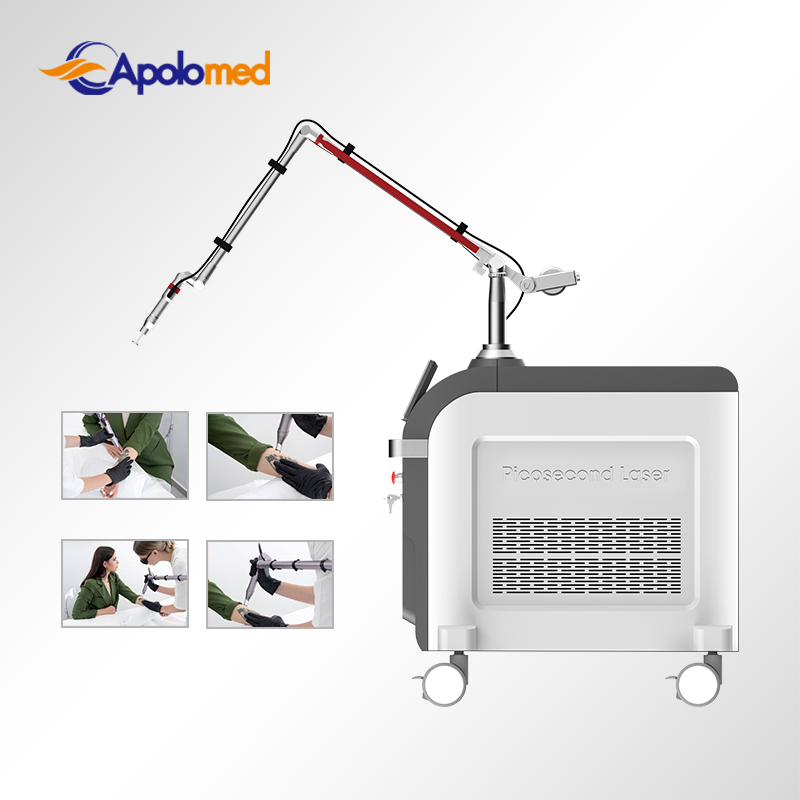

HS-298N_17
