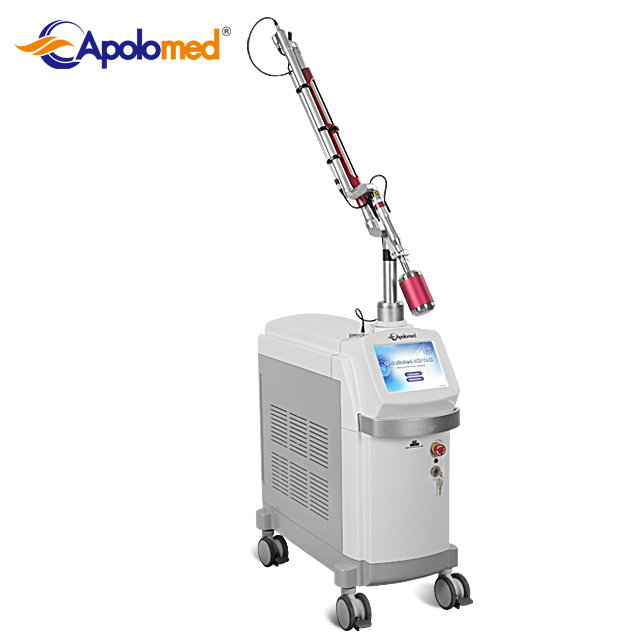

QS Soft Peel Laser Carbon Peel Laser ND YAG Laser

Pigment tattoo removal equipment nd yag laser
Availability:

Product Description

290-9


CE medical approved 1064nm and 532nm wavelengths can remove any colour tattoo

The high peak power and short pulse duration delivers efficient destruction od the target chromophore such as tattoo ink, pigment or collagen. The electro-optic(EO) Q-switch, acting as a high-speed shutter, stores energy between pulses enabling the laser to produce peak power output of 200 MW in 6ns pulse width. It forces energy at a high rate, the target chromophores vibrate and shatter, without harming the surrounding skin on all skin.


Advantage:

*Safe,excellent effective treatment regardless of skin type

*Friendly touchable operating interface

*Interlock design ensures the safety treatment environment

*Watre filter ensure the laser system longer life span

*Modularized and USB design for convenient maintenance

*IC card function for providing flexible other business model


Specification:

Laser Type

EO Q-switch Nd:YAG laser

Laser transfer method

Articulated arm

Wavelength

1064/32nm

Spot size

2-10mm

Pulse duration

Q-switch mode

<6ns(Q-switched mode)

Free Running mode

300us

Energy

Q-switch 1064nm

Max.200mJ

Q-switch 532nm

Max.800mJ

SPT mode(1064nm)

Max.2800mJ

Repetition rate

1-10HZ

Operate Interface

9.7" True color touch screen

Aiming beam

Diode laser 655nm (Red),brightness adjustable

Cooling system

Advanced air & water cooling system

Power supply

AC100V or 230V, 50/60HZ

Dimension

82*30*88cm (L*W*H)

Weight

80Kgs



290-13
