Product Description
Principle of EO Q Switch laser:
The high peak power and short pulse duration delivers efficient destruction of the target chromophore such as tattoo ink, pigment or collagen. The electro-optic (EO) Q-Switch, acting as a high-speed shutter, stores energy between pulses enabling the laser to produce peal power outpur of 200mW in 6ns pulse width. It forces energy at a high rate, the target chromophores vibrate and shatter, without harming the surrounding skin on all skin types.
| Laser Type | EO Q-Switch Nd:YAG laser |
| Wavelength | 1064/532nm |
| Operate mode | Q-Switched mode & SPT mode |
| Beam profile | Flat-top mode |
| Pulse width | ≤ 6ns (Q-Switched mode) |
| 300 us (SPT mode) | |
| Pulse energy | Q-Switched 1064 mode: Max.2000mJ |
| Q-Switched 532 mode: Max.800mJ | |
| SPT mode (1064nm): Max.2800mJ | |
| Energy calibration | External & self-restoration |
| Spot size | 2~10mm |
| Repetition rate | Max.10HZ |
| Optical delivery | Articulated arm |
| Operate interface | 9.7" true color touch screen |
| Aiming beam | Diode 655nm(red), brightness adjustable |
| Cooling system | Advanced air & water cooling system |
| Power supply | AC100V or 230V, 50/60HZ |
| Dimension | 82*30*88cm (L*W*H) |
| Wright | 80KGs |

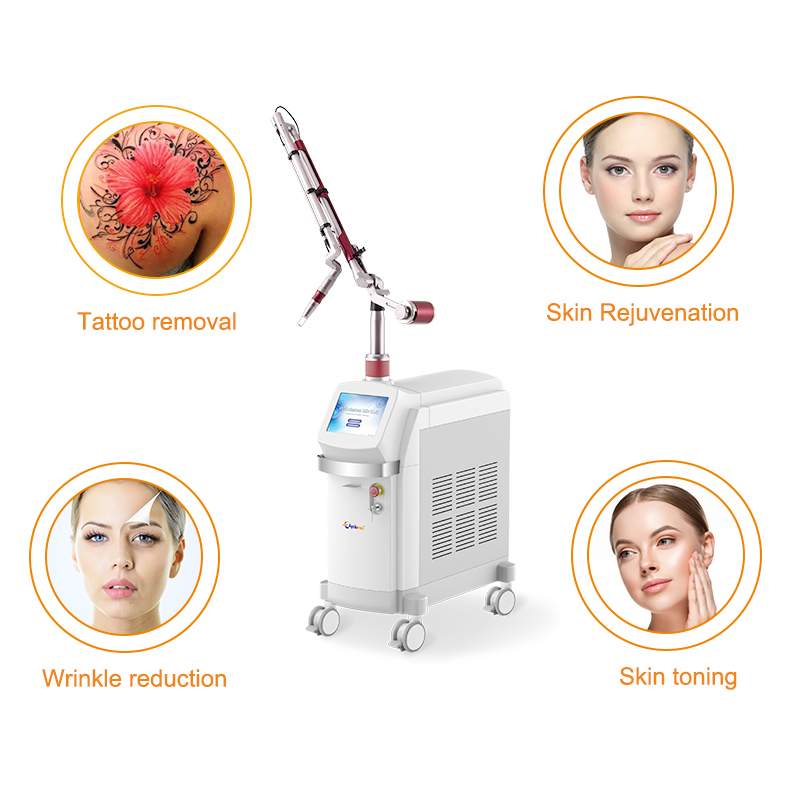

| Tattoo removal |
| Vascular lession removal |
| Skin rejuvenation |
| Skin refurfacing: Wrinkle reduction, acne scar reduction, skin toning |
| Epidermal and dermal pigmented lesions: Nevus of OTA, Sun damage, Melasma etc.. |
Advantages of EO Q-Switch Nd:YAG laser machine
1.Max.2000mJ EO Q-Switch mode for yag laser tattoo removal treatment
2.Max.2800mJ free running mode for yag laser skin rejuvenation
3.Pulse width < 7ns
4.Repetition rate max.10HZ
5.Luxry 9.7" true color touch screen with multi-languages available
6.IC card and USB function supported
7.Copper radiator cooling system and water filter to protect the system
8.Modulariged design with metal chassis. Easy for maintenance.
9.Operations Safety: water flow and water level control system keeps laser machine in safe condition.
