Vertical Fast Tatoo Removal Picosecond Nd Yag Laser
You are here: Home » Devices » Devices » Vertical Fast Tatoo Removal Picosecond Nd Yag Laser

Vertical Fast Tatoo Removal Picosecond Nd Yag Laser

532nm 1064nm picosecond q switched nd yag laser tattoo removal machine
Availability:
  • HS-298

  • Apolomed

Product Description

picosecond 298

Pricinpal of Good quality pico ultra short pulse laser tattoo removal manufacture equipment:


Picosecond laser is being introduced as the first safe and effective aesthetic laser specifically designed to treat tattoos and pigmented lesions. This innovative laser delivers ultra short pulse bursts of energy to the skin in trillionths of a second. These pulse create a photomechamical effect, that target ink while avoiding unmarked tissue. The pulse shatters the ink into tiny, dust-like perticales which are easily eliminated by the body.

HS-298-12

Applications of Good quality pico ultra short pulse laser tattoo removal manufacture equipment


Tattoo removal
Vascular lession removal
Skin rejuvenation
Skin refurfacing: Wrinkle reduction, acne scar reduction, skin toning
Epidermal and dermal pigmented lesions: Nevus of OTA, Sun damage, Melasma etc..


HS-298 before after photo

Specifications of Good quality pico ultra short pulse laser tattoo removal manufacture equipment
Model Name HS-298
Laser Type Picosecond Nd:YAG laser
Wavelength 1064nm/532nm
Beam profile Flat-top mode
Pulse width 300ps
Pulse energy 500mJ: 1064nm
250mJ: 532nm
Energy calibration External & self-restoration
Spot size 2~10mm
Repetition rate Max.10HZ

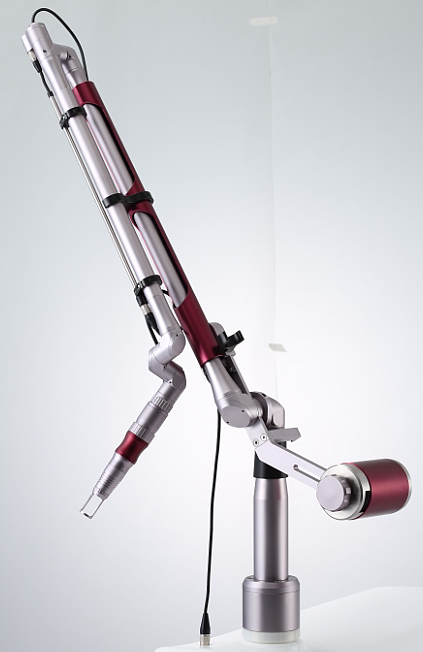

Optical delivery 7 jointed Articulated arm
Operate interface 9.7" true color touch screen
Aiming beam Diode 655nm(red), brightness adjustable
Cooling system Advanced air & water cooling system
Power supply AC100V or 230V, 50/60HZ
Dimension 97*48*97cm (L*W*H)
Wright 150kg
