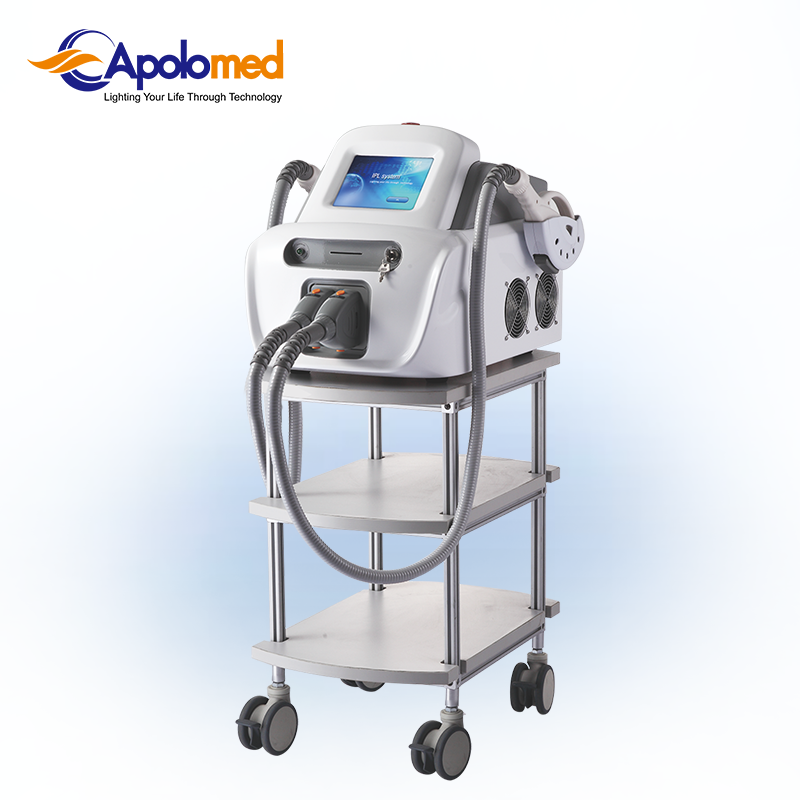

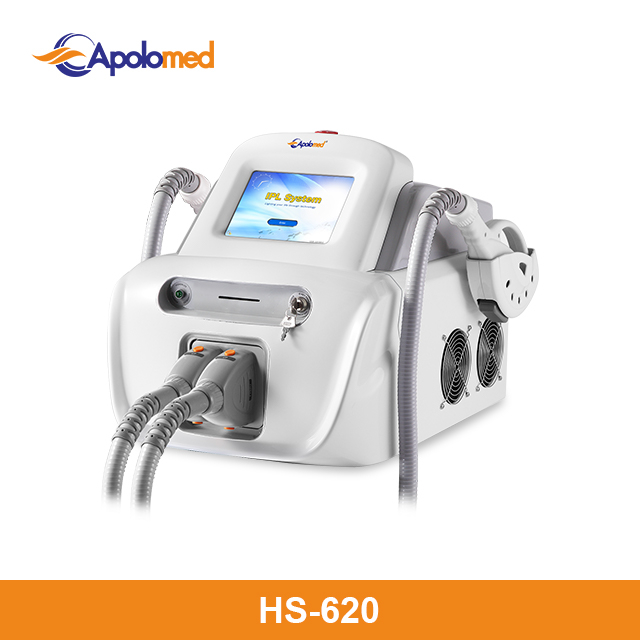

IPL SHR HS-620

  • ​​​​​​Model NO.:      HS-620
  • Brand Name:  Apolomed
  • Certificate: ISO 13485 / SGS ROHS / CE 0197 / US FDA
Availability:

Description

IPL Skin Rejuvenation Equipment Descriptions:

APPLICATION

  • Permanent Hair removal

  • Skin Rejuvenation

  • Acne removal

  • Skin Toning Application Principle

  •  Epidermal Pigment removal

  •  Vascular treatment

  • Spots and Freckles removal

  •  Skin firming and tightening


PRINCIPLE

Intense pulsed light (IPL) is a type of intensive, broadband, coherent light source which has a wavelength spectrum of 420 nm ~1200 nm. IPL has wide application in non-ablative therapies based on theory of human skin tissue's selective absorption and photothermolysis of light sources.   IPL treatment is more effective, with no downtime and can make the patients get recovered more quickly.




Specification

IPL Skin Rejuvenation Equipment Specifications:

Handpiece1*IPL SHR / EPL
Spot size12*35mm, 15*50mm
Wavelength420~1200nm
Filter

420/510/560/610/640~1200nm/690~950nm SHR

IPL energy1~30J/cm² (10~60 level)
SHR repetition rate1-5Hz
EPL RF output power200W (optional)
Operate interface8"True color touch screen
Cooling systemAdvanced air & water cooling system
Power supplyAC 110V or 230V, 50/60Hz
Dimension63*46*42cm (L*W*H)
Weight30Kgs


Advantage

IPL Skin Rejuvenation Equipment Advantages:

You main gain advantage and add on value from our pioneer  technology for multi-treatments, it contains :

  • IPL mode/ IPL SHR- in motion mode/ BBR anti-aging mode for face and body.

  • 8" True color touch screen with smart mode which contains pre-setting hundreds recommend treatment parameter for easy operation.

  •  Long life span of filter and Germany IPL flash lamp, made in UK for long lasting lifetime (300,000-500,000shots SHR in optimal status)

  • Low cost for after service



                                                              IPL SHR technology 620 3.9


MULTI-FUNCTION WITH FIVE OPERATE MODES:

IPL function: IPL Hair Removal / Skin juventation / Anti-aging / Pigment / Acne / Vascular / Wrinkles

IPL SHR hair removal

Stack mode for small area hair removal

BBR anti-aging mode for face and body

Professional mode for professional doctors

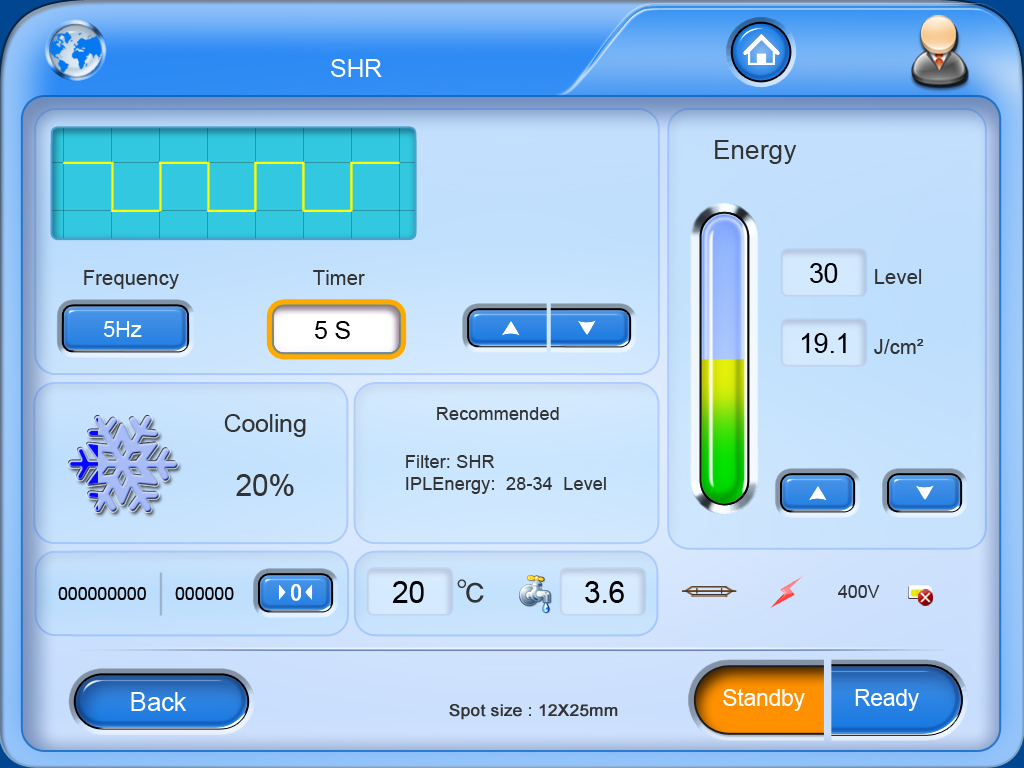

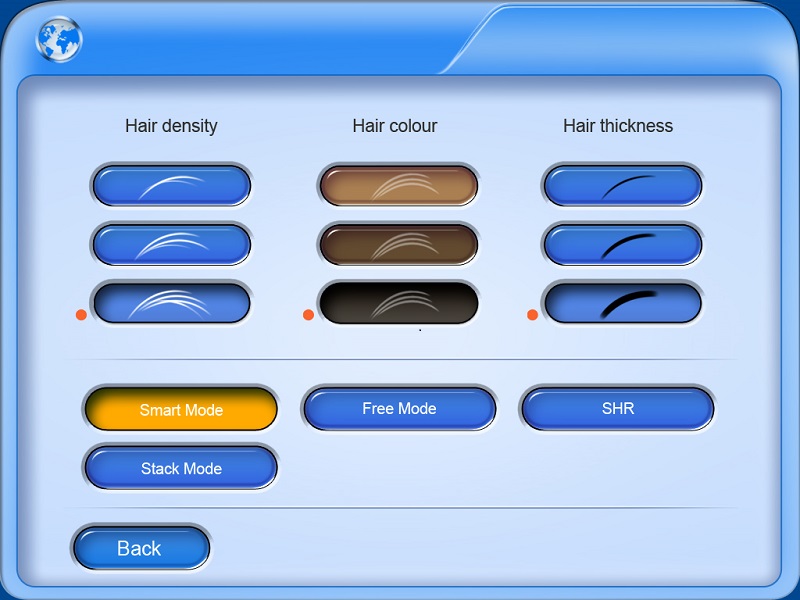

                       3A-毛发属性选择+STACK     6-SHR

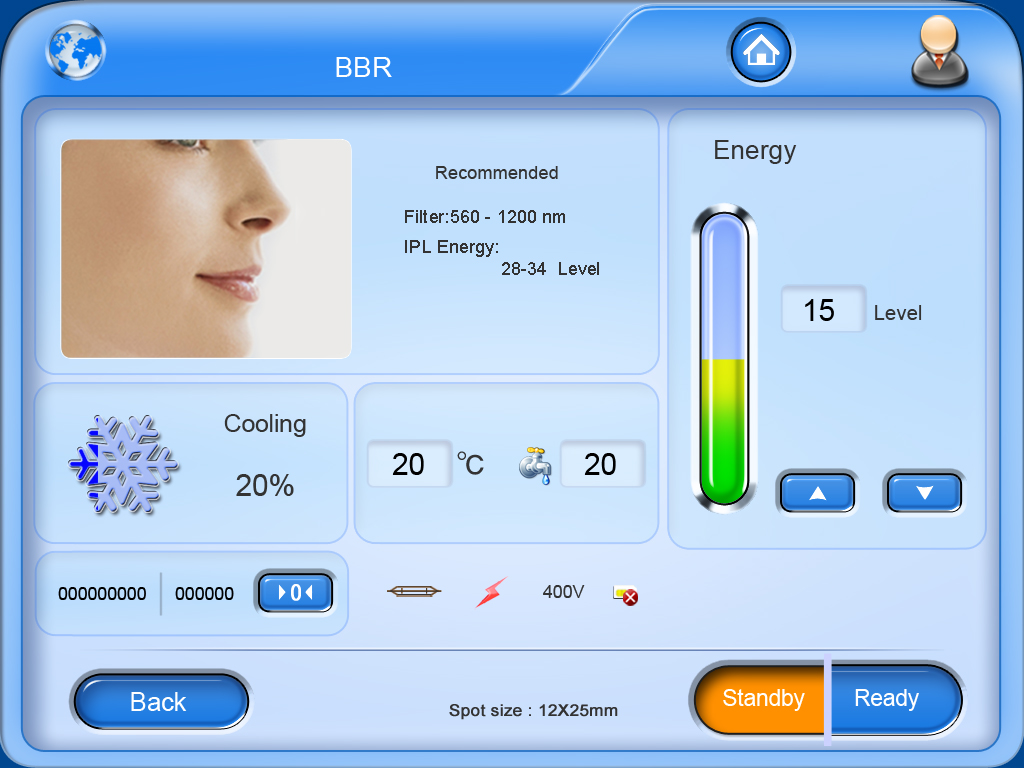

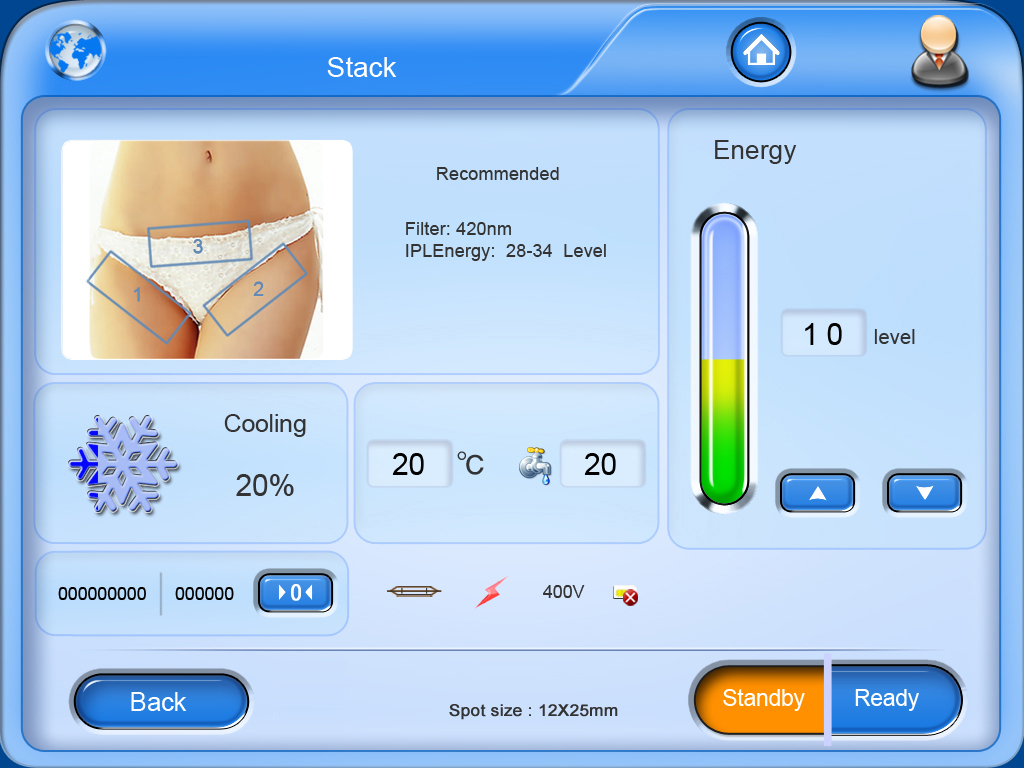

                        5-治疗界面BBR1   5-治疗界面Stack-女1


LARGE SPOT SIZE & HIGH REPETITION RATE

Our IPl handpiece tube with Germany original pins for safety protection. Large spot sizes 15x50mm / 12x35mm, which  patients can be treated in less time with IPL SHR and BBR function.


              3


INTERCHANGEABLE FILTERS

420-1200nm spectrum interchangeable filter

Different filters for wide range treatment programs


             IMG_1607

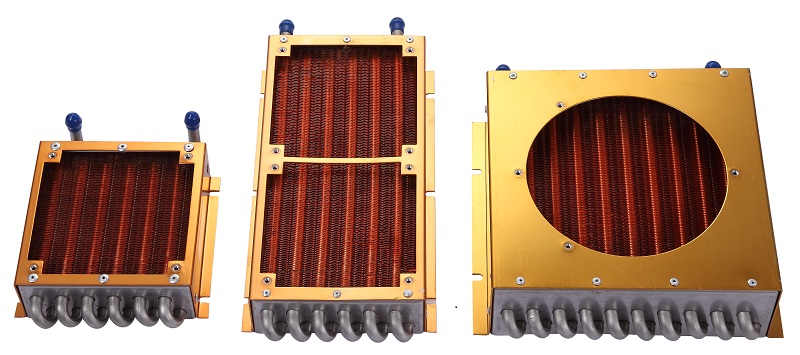

ADVANCED COOLING SYSTEM with advanced radiator 316L stainless tubea, adjustable contact cooling

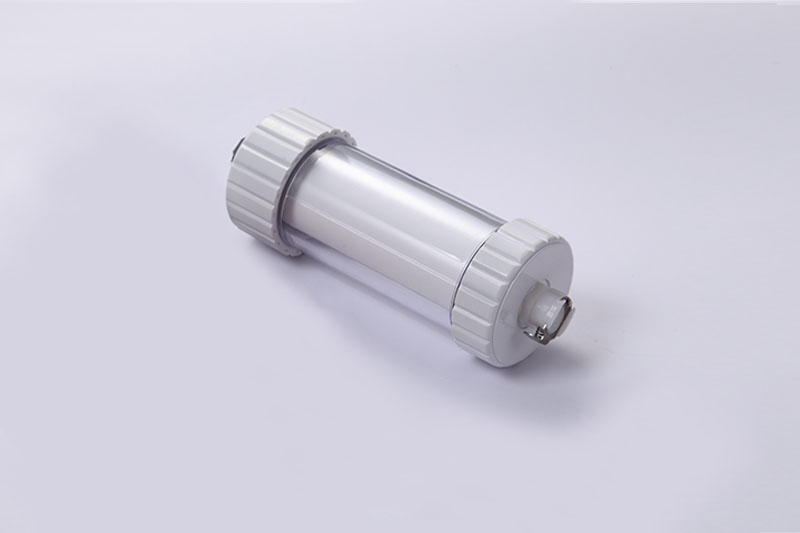

WATER FILTER ensure smooth & clean water circulation, which prolong handpiece lifetime and whole system


            ipl filter    ipl SHR
