IPL SHR Technology Overview & Working Principle

Intense Pulsed Light Mechanism

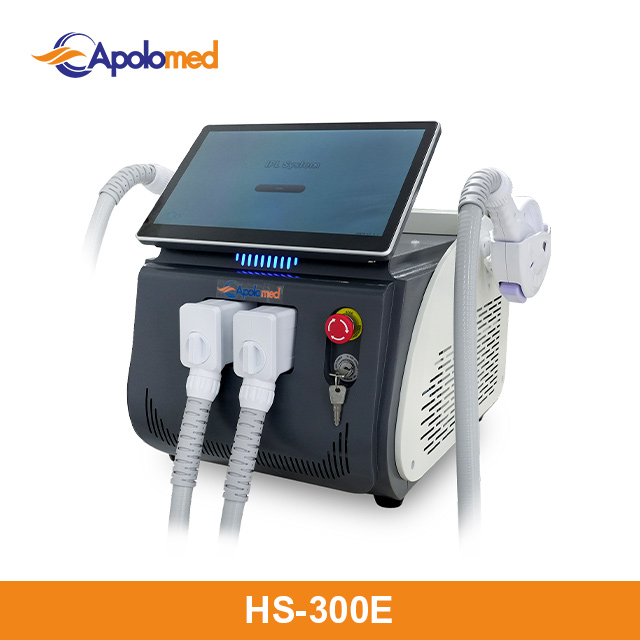

The HS-300E IPL SHR machine utilizes intense pulsed light technology, a broadband light source with a wavelength spectrum ranging from 420nm to 1200nm. The system operates on the principle of selective photothermolysis, where light energy is absorbed by specific chromophores in the skin—melanin in hair follicles, hemoglobin in vascular lesions, and pigment in epidermal spots. This targeted absorption generates heat that disrupts target structures while preserving surrounding tissue.

SHR (Super Hair Removal) Mode Explanation

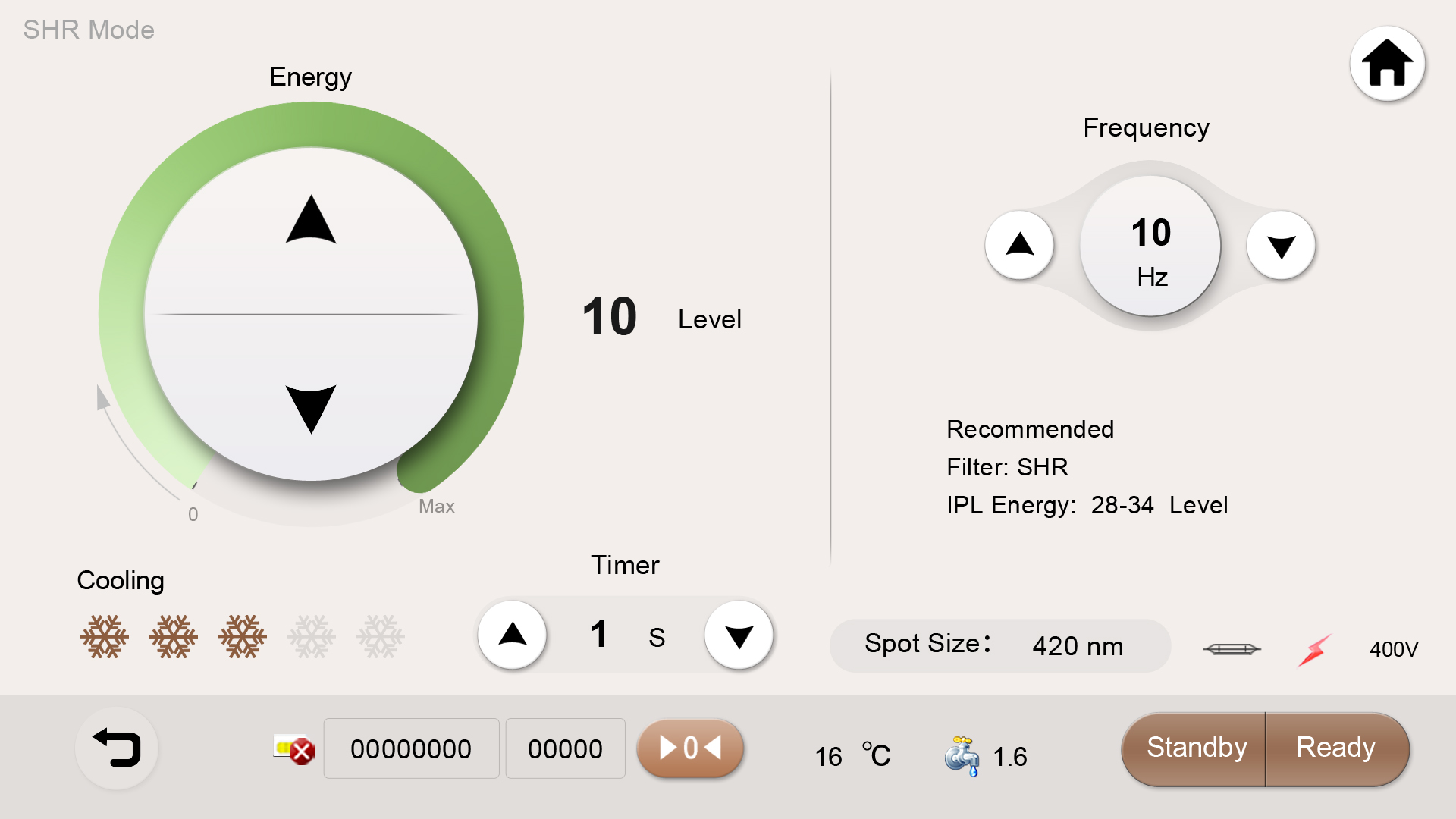

SHR mode delivers low energy density at high repetition rates, allowing the handpiece to glide across the skin surface in continuous motion. Unlike traditional IPL that uses single high-energy shots, SHR mode accumulates thermal energy in the hair follicle through multiple rapid pulses. This approach covers treatment areas efficiently and may reduce operator fatigue during extended sessions.

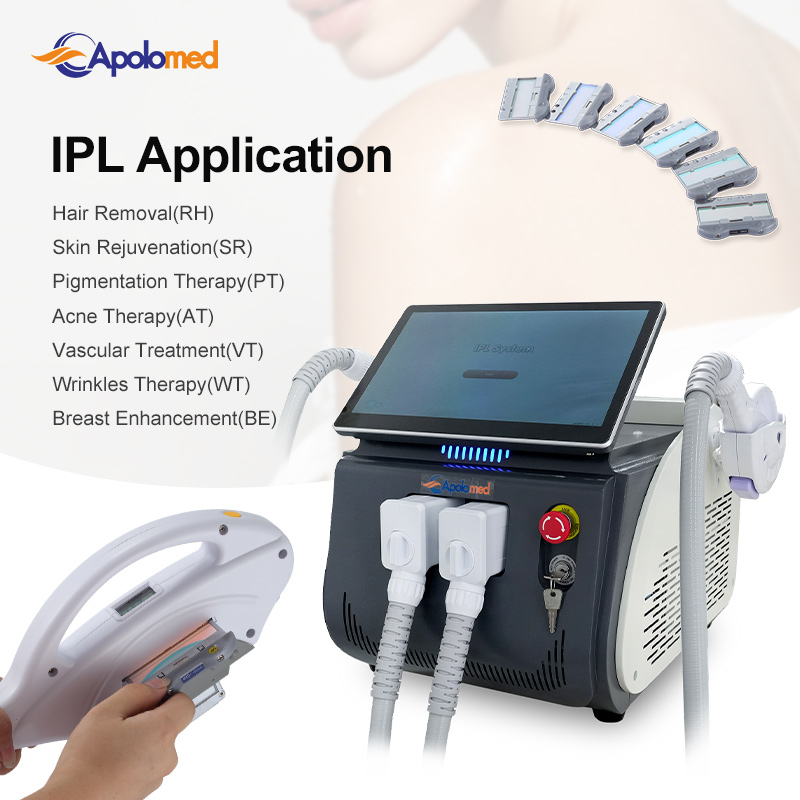

Treatment Applications for Commercial Aesthetic Practices

Permanent Hair Reduction

The IPL SHR system targets melanin in hair follicles to reduce hair growth across body areas including the face, underarms, arms, legs, back, and bikini line. Both IPL and SHR modes are available, allowing practitioners to select the appropriate method based on hair type, skin tone, and treatment area size.

Skin Rejuvenation & Pigmentation

Broad spectrum light addresses signs of photoaging, including fine lines, uneven texture, and enlarged pores. Interchangeable filters enable targeting of epidermal pigmentation such as freckles, sun spots, and age spots, making the device suitable for clients seeking multi-benefit facial treatments.

Acne Clearance & Vascular Lesions

Specific filter settings target porphyrins produced by acne-causing bacteria, supporting acne clearance protocols. The system also addresses vascular concerns including facial telangiectasia and rosacea-related redness, expanding the range of services commercial practices can offer.

Key System Features & Specifications

Five Operating Modes

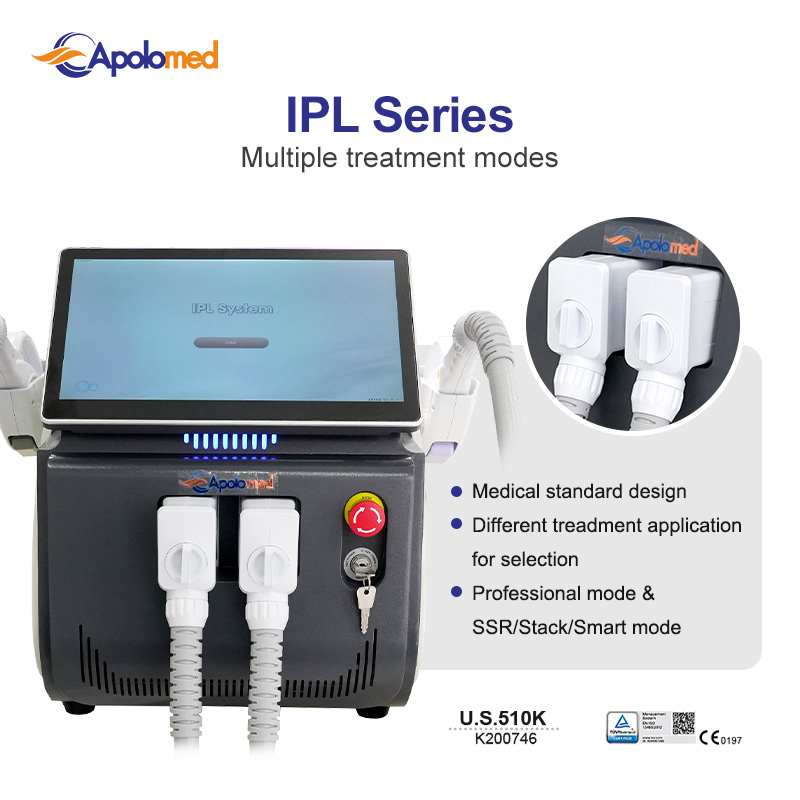

The HS-300E includes five operational modes: standard IPL for traditional pulsed treatments, SHR in-motion mode for hair removal, Stack mode for small-area precision work, BBR anti-aging mode for face and body rejuvenation, and Professional mode for advanced practitioners who require full parameter control.

Spot Size & Repetition Rate

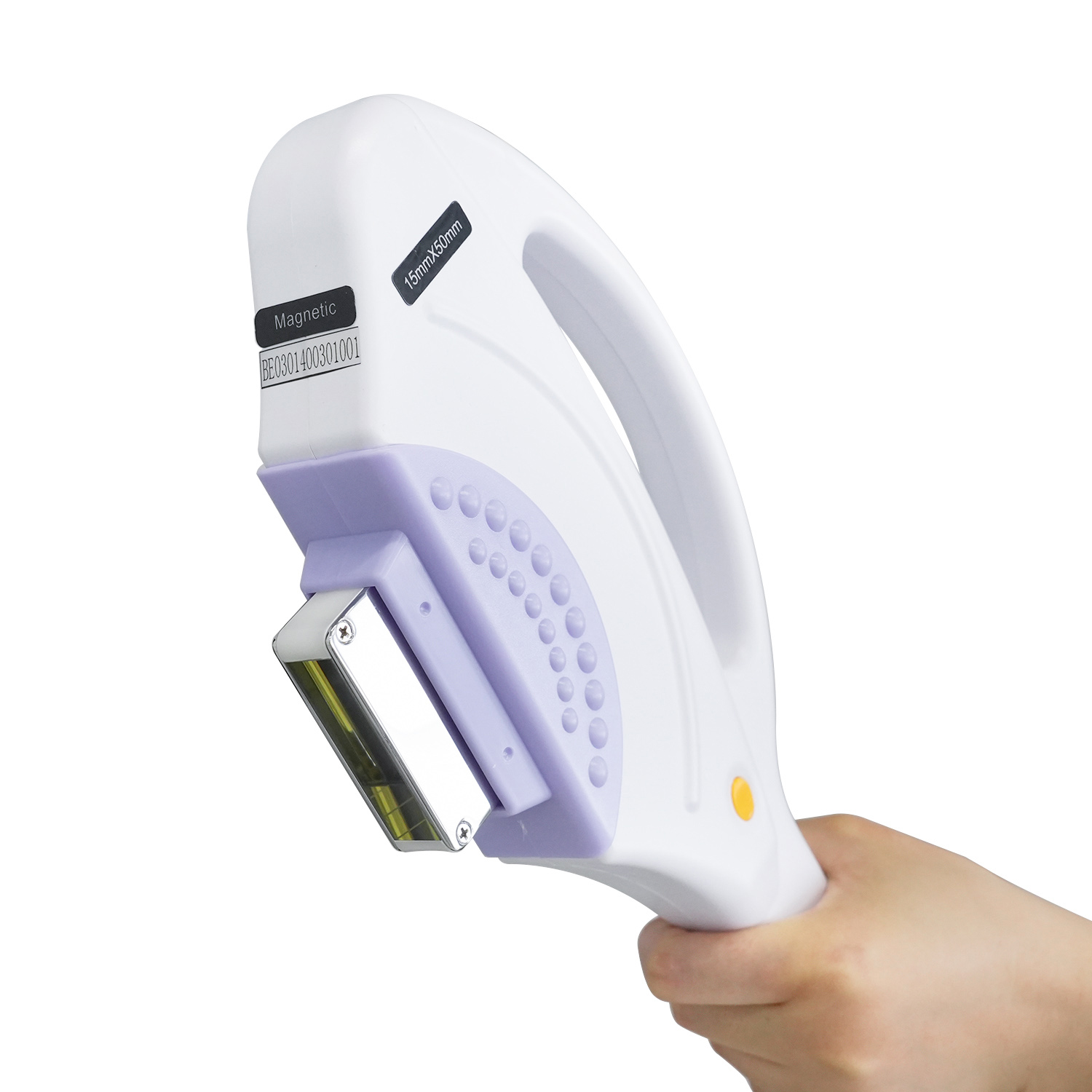

The system offers spot sizes of 12×35mm and 15×50mm, enabling coverage of larger body areas such as the back and legs in fewer passes. The SHR repetition rate ranges from 1Hz to 10Hz, supporting efficient in-motion treatment techniques for commercial operations with high client volume.

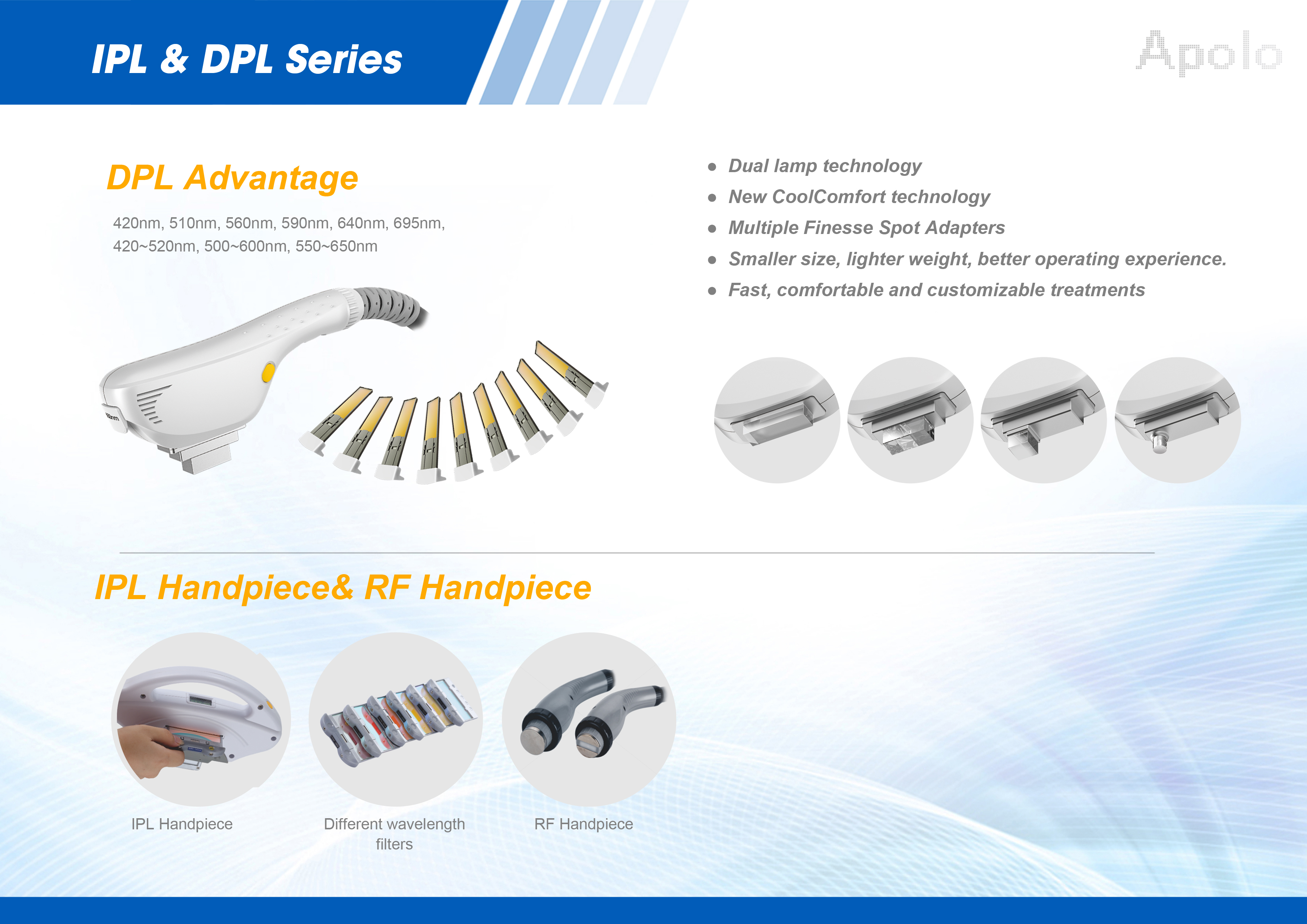

Interchangeable Filter System

Six interchangeable filters cover wavelengths from 420nm to 1200nm, including dedicated filters for hair removal, pigmentation, vascular treatment, and SHR protocols. Filters can be selected based on the specific treatment indication and client skin type, allowing one device to serve multiple service lines.

Cooling System Design

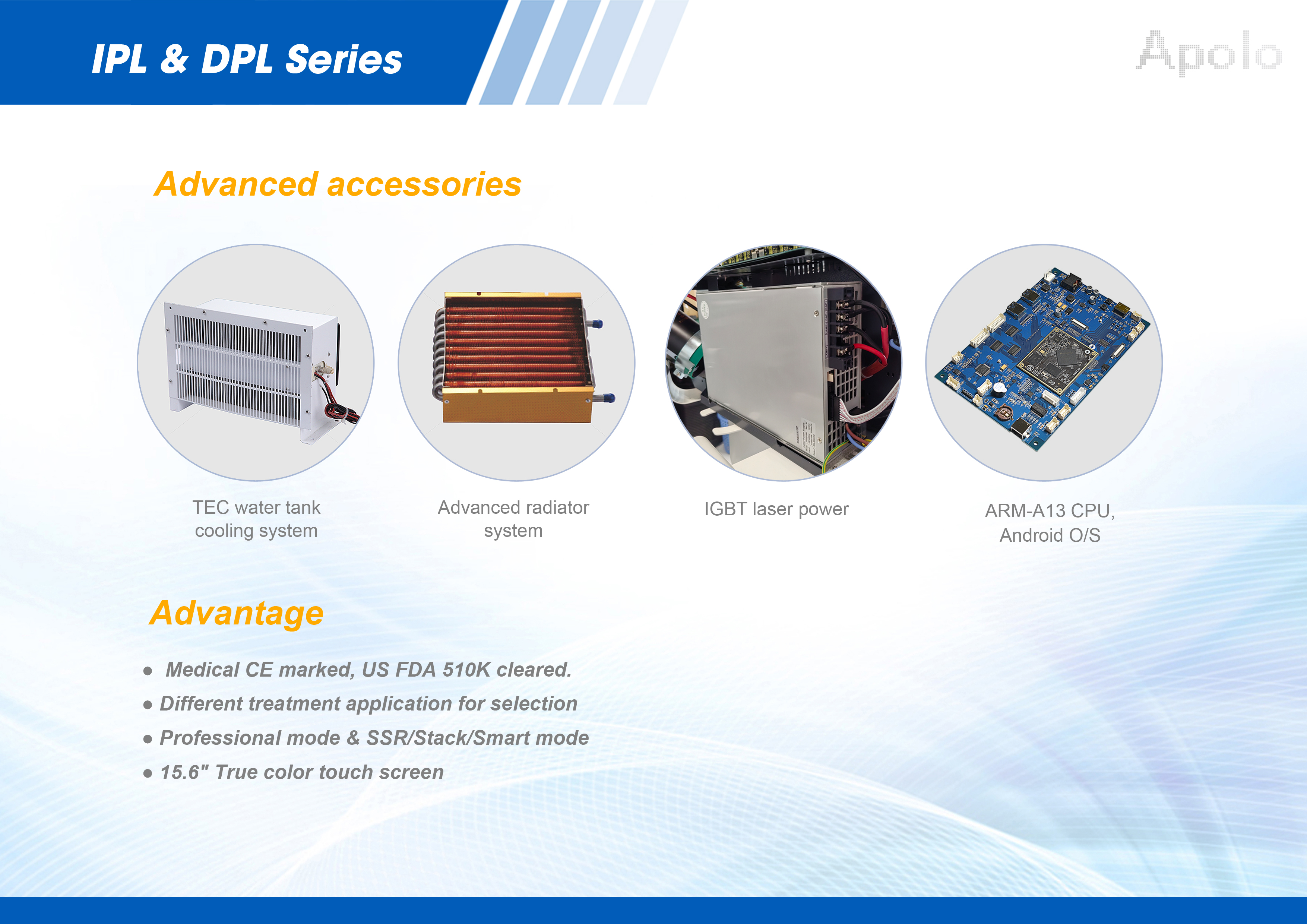

The device incorporates an advanced air and water cooling system with a 316L stainless steel radiator and adjustable contact cooling. A water filter maintains circulation cleanliness, which supports consistent handpiece performance and may extend system longevity under regular commercial use.

Certifications & Compliance Standards

ISO 13485 & Medical CE 0197

The HS-300E holds ISO 13485 certification, indicating compliance with quality management system standards for medical devices. It also carries Medical CE certification under Notified Body 0197, supporting market access within the European Economic Area for commercial procurement.

US FDA Clearance

The device has received US FDA clearance, demonstrating that it meets applicable safety and effectiveness standards recognized by the U.S. regulatory framework for aesthetic laser devices.

SGS RoHS Certification

SGS RoHS certification confirms compliance with restrictions on hazardous substances in electrical and electronic equipment, supporting environmental compliance requirements in commercial procurement specifications.

Technical Specifications

FAQ

What is the difference between IPL and SHR mode?

IPL mode delivers single, higher-energy pulses at lower repetition rates, suitable for targeted treatments on smaller areas. SHR mode uses lower energy density at higher repetition rates with a gliding technique, designed for faster coverage of larger body areas during hair removal procedures.

How many shots can the IPL handpiece deliver?

The IPL flash lamp is rated for approximately 300,000 to 500,000 shots in SHR mode under optimal operating conditions. Actual lifespan varies based on treatment parameters, maintenance frequency, and cooling system performance.

Is training required to operate the HS-300E?

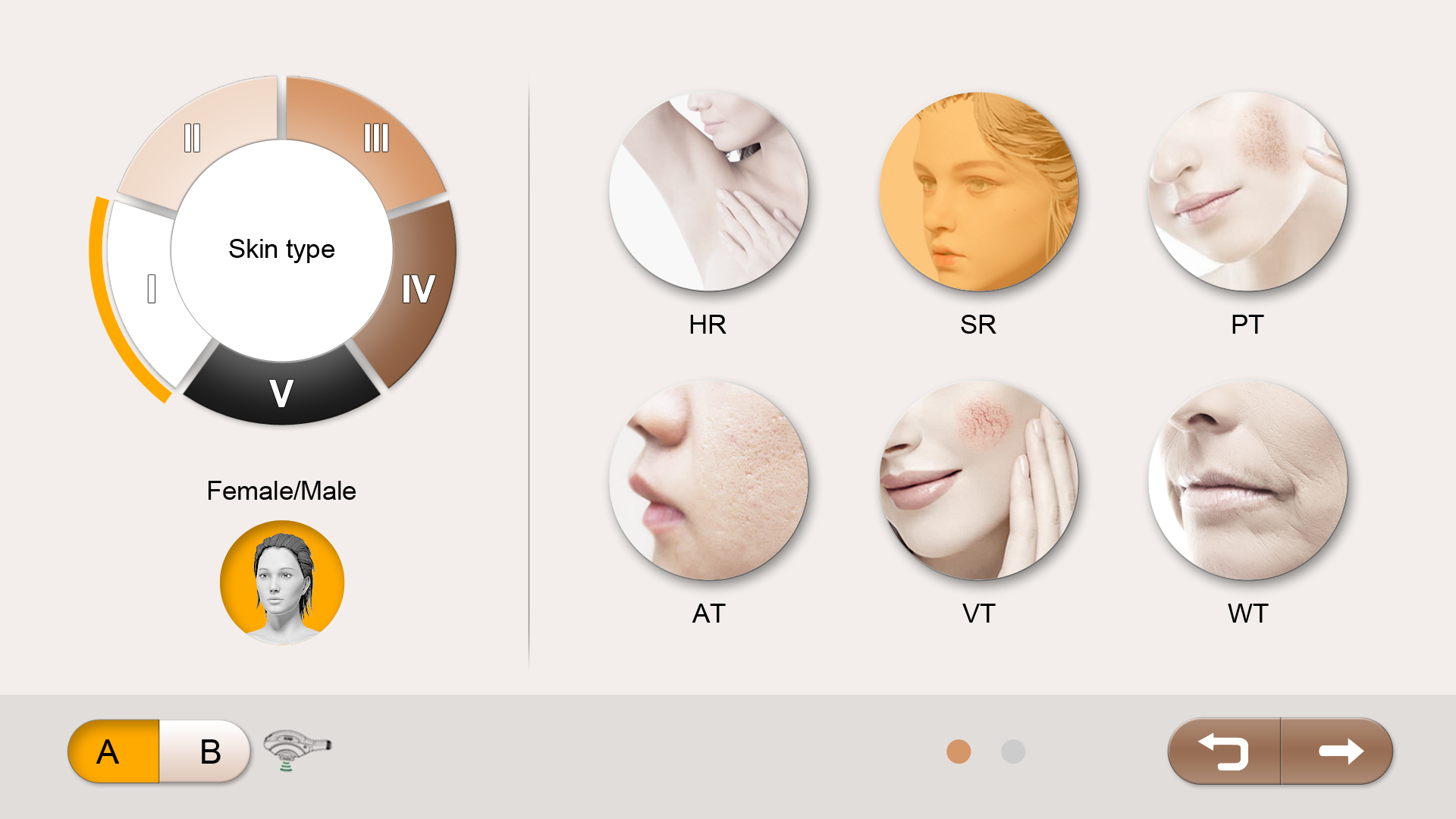

Yes, proper training is recommended before clinical use. The system includes preset treatment parameters in smart mode to assist less experienced operators, while professional mode allows advanced users full parameter adjustment. Manufacturer training covers device operation, safety protocols, and client selection criteria.

What is the warranty and after-sales support?

The HS-300E includes a standard manufacturer warranty covering parts and labor for defects in materials and workmanship. After-sales support includes technical assistance, replacement parts availability, and maintenance guidance. Specific warranty terms are confirmed at the time of commercial procurement.

Can the filters be replaced on-site?

Yes, the interchangeable filter system is designed for on-site 更换. Practitioners can switch between filters based on treatment indications, and replacement filters are available as spare parts. Filter changes do not require specialized tools or factory service.
