HS-300C IPL Intense Pulsed Light Machine
You are here: Home » Devices » IPL » HS-300C IPL Intense Pulsed Light Machine

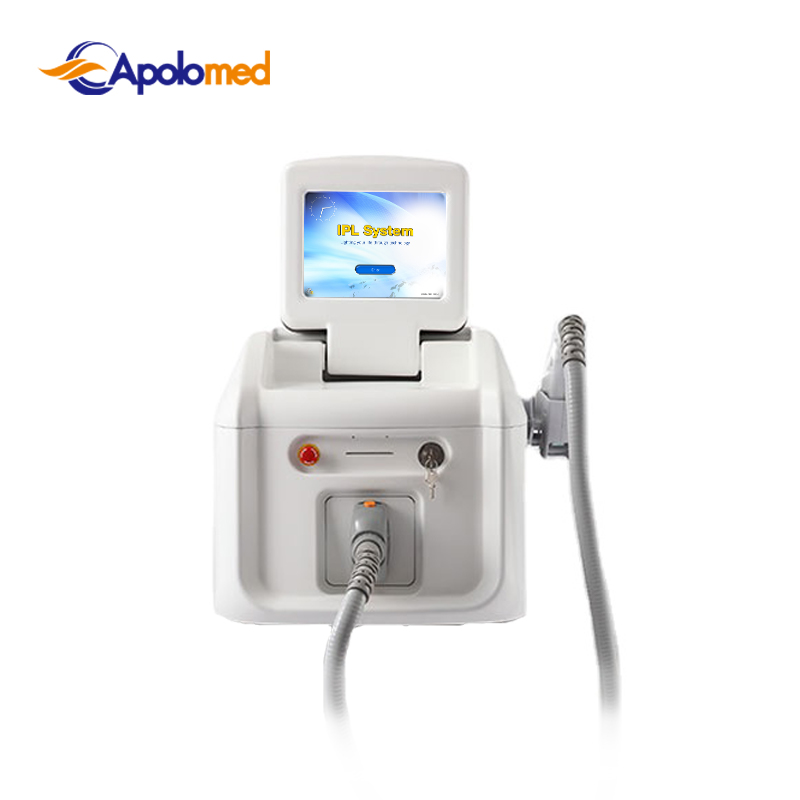

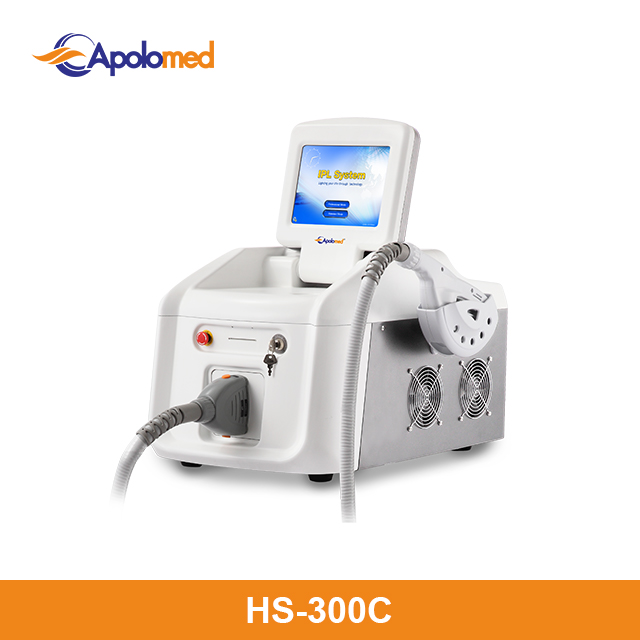

HS-300C IPL Intense Pulsed Light Machine

Model: HS-300C
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS,TUV CE 0197,USA FDA 510K
Widely use: Hospitals, medical centers, plastic surgery centers and beauty salons
Operator interface: Simple mode and professional mode
Operation system: ARM-A9 (Android/OS)
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:
  • HS-300C

  • Apolomed

INTRODUCTION

APPLICATION

  • Hair Removal

  • Vascular Lesions

  • Pigmented Lesions

  • Photorejuvenation

  • Acne Removal

  • Skin Toning

  • Skin Firming and Tightening


PRINCIPLE

IPL ( intense pulsed light )is a specific spectrum irradiated on the skin, and the target absorbs the light energy and is heated to produce a thermal effect, so as to achieve the purpose of treatment. And different bands, there are different bands of targets.


420 nm – 1200 nm (Acne Treatment)

510 nm - 1200 nm (Photorejuvenation; Wrinkles)

560 nm – 1200 nm (Vascular Lesions)

610 nm – 1200 nm (Hair Removal)

640 nm – 1200 nm (Hair Removal Skin Type IV - VI)

650 nm – 950 nm SHR (Hair Removal Skin Type V - VI) optional


                               IPL shr principle



ADVANTAGE

Unlike traditional hair reduction devices that apply energy one pulse at a time, Apolomed uses motion technology to deliver a low fluence in multiple pulses, protecting the skin while progressively raising the follicle temperature to the optimal level for hair removal.


• Safe and fast treatments thanks to large spot size and motion technology

• Easy, versatile treatments with intuitive user interface, quick change filters and spot adapters

• Advanced contact cooling technology for enhanced patient comfort

• Skin types I-V

Help patients reveal their soft, smooth skin without the hassle of shaving, tweezing or painful waxing



                                                       IPL SHR technology 660 3.9


IPL SHR HAIR REMOVAL

Our IPL equipment is user friendly operate interface with 4 treatment modes for different use: Smart mode / Free mode / SHR mode / Stack mode, you can slide the screen with one finger just like iphone.

  3A-毛发属性选择+STACK 6-SHR 5-治疗界面Stack-女1



IPL WITH BBR TREATMENT MODE

Now we have In-motion BBR function added in IPL SHR device, which can for fast whole body rejuvenation & skin toning up, like back, arm and legs.


                           bbr5     bbr1


INTERCHANGEABLE FILTER

A range of  the most in-demand treaments from one handpiece with 6pcs IPL filter

                         Ipl filter 2    ipl filter

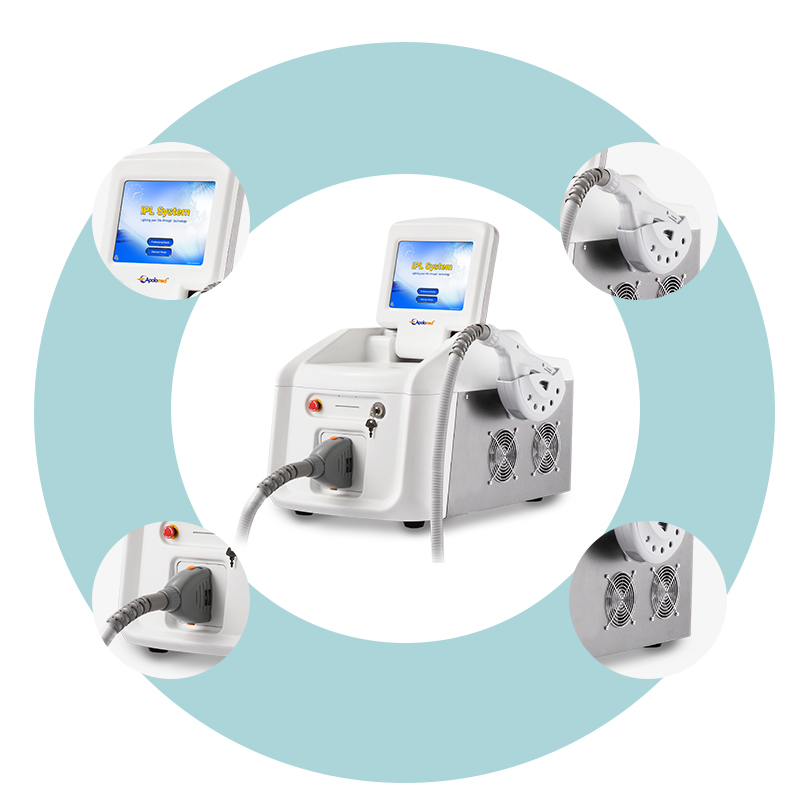

The key benifit of our IPL SHR eqiupment

Advanced cooling system adjustable contact cooling for comfortable treatment

Water filter ensure smooth & clean water circulation, which prolong handpiece lifetime and whole system

 USB for convenient maintenance

IC card management control design. Apply operation system ( Android, RTL)


                           IPL SHR


SPECIFICATION

IPL SHR HAIR REMOVAL EQUIPMENT SPECIFICATIONS

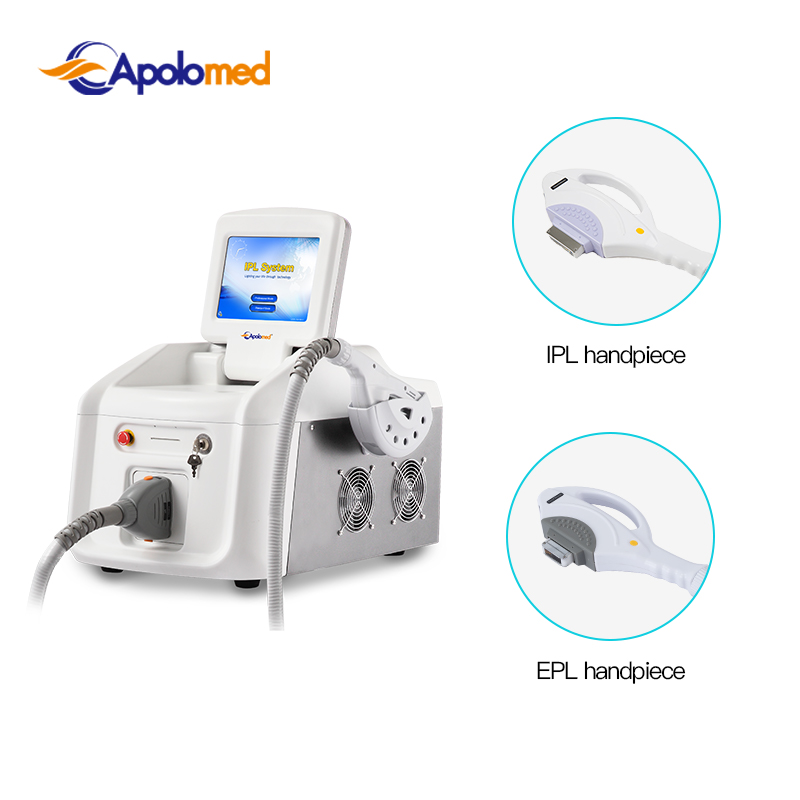

Handpiece1*IPL SHR/EPL
Spot size12*35mm,15*50mm
Wavelength420~1200nm
Filter420/510/560/610/640~1200nm,
690~950nm,SHR
IPL energy density1~30J/cm2 (10~60 level)
Repetition rate1~5Hz
RF output power200W(optional)
Operate Interface8" True color touch screen
Cooling systemAdvanced Air & Water cooling system
Power supplyAC 110V or 230V, 50/60Hz
Dimension66*42*41cm(L*W*H)
Weight33Kgs
