Portable IPL Intense Pulsed Light Machine
You are here: Home » Devices » IPL » Portable IPL Intense Pulsed Light Machine

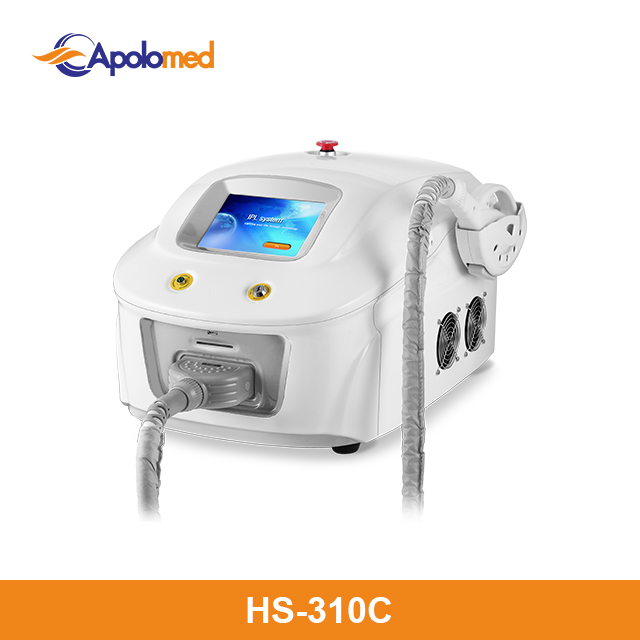

Portable IPL Intense Pulsed Light Machine

Model: HS-310C
Brand name: Apolomed
Certificate: ISO 13485, SGS ROHS,TUV CE 0197,USA FDA 510K
Widely use: Hospitals, medical centers, plastic surgery centers and beauty salons
Operator interface: Simple mode and professional mode
Operation system: ARM-A9 (Android/OS)
OEM/ ODM: Professional design team & rich manufaucture experience
Availability:
  • HS-310C

  • Apolomed

INTRODUCTION

Offering permanent hair reduction and a wide range of skin rejuvenation treatments, the Apolomed IPL is widely regarded as the most clinically effective IPL in the Europe,Asia,North and South America marketplace.

CLINICAL APPLICATION

  • Skin Rejuvenation

  • Benign Vascular Lesions

  • Benign Pigmented Lesions

  • Permanent Hair Reduction

  • Acne Treatment


PRINCIPLE

IPL, namely Intense Pulsed Light, is a continuous multi-wavelength incoherent light, the wavelength range is generally between 500-1200nm.Because it can emit multiple wavelengths at the same time. The light of various wavelengths covers the absorption peaks of various target chromophores such as melanin, oxyhemoglobin, and water, so it has the functions of whitening and blackening (decomposing pigment particles, treating pigment diseases), fading red (sealing blood vessels, treating vascular diseases), and rejuvenating skin. (Stimulate collagen and elastin regeneration and rearrangement, treat photoaging) Multiple effects.


                               IPL shr principle



ADVANTAGE

Benefits:

  • Cleared for marketing by the USA FDA for all skin types

  • TUV medical CE0197 approved,safe and effective

  • Multiple applications with one device, treating a wide range of conditions

  • Fewer handpieces means more storage space and greater ease of use

  • Upgradeable to additional applications

  • Effective treatments with minimal risk

  • Uses 110 or 220 V standard wall plugs

  • Application-specific calibration-card system guides users to appropriate settings

  • Fits in any treatment room




                                                       IPL SHR technology 660 3.9


IPL SHR HAIR REMOVAL

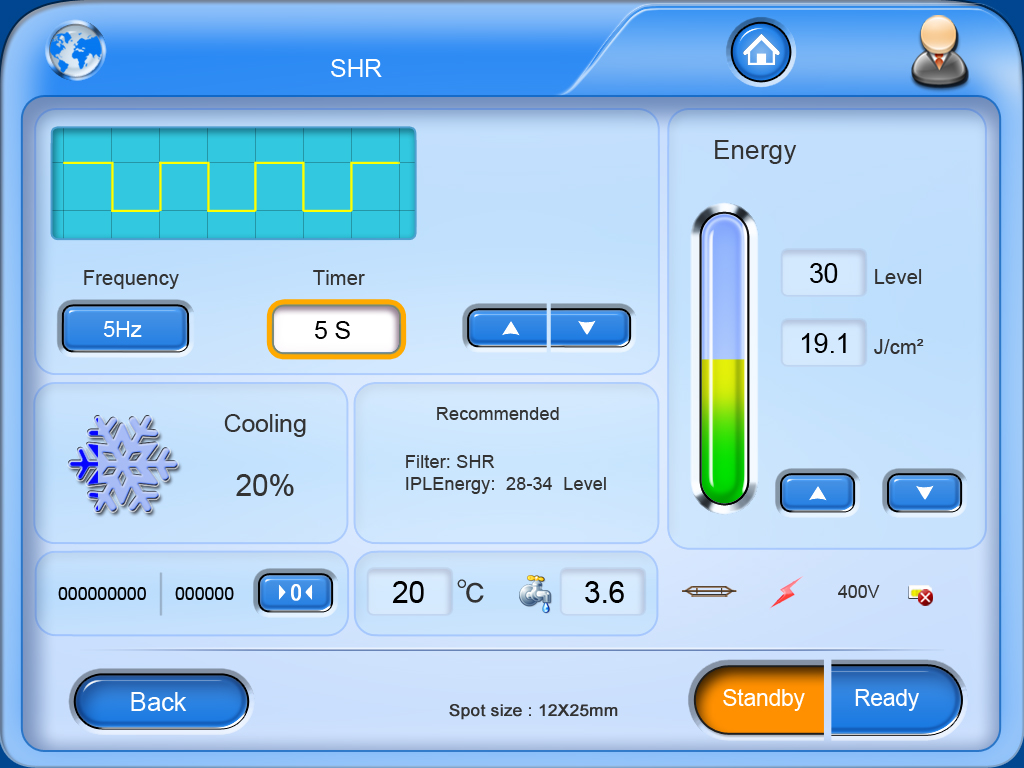

Our IPL equipment is user friendly operate interface with 4 treatment modes for different use: Smart mode / Free mode / SHR mode / Stack mode, you can slide the screen with one finger just like iphone.

  3A-毛发属性选择+STACK 6-SHR 5-治疗界面Stack-女1



IPL WITH BBR TREATMENT MODE

Now we have In-motion BBR function added in IPL SHR device, which can for fast whole body rejuvenation & skin toning up, like back, arm and legs.


                           bbr5     bbr1

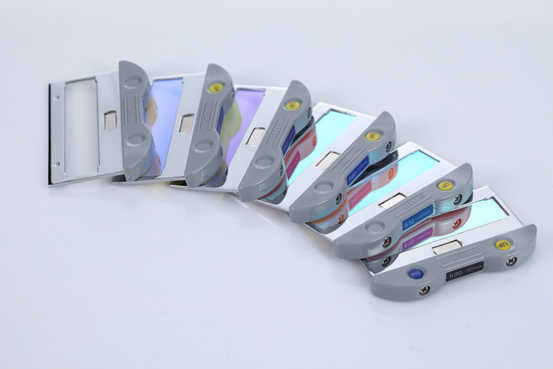

INTERCHANGEABLE FILTER

A range of  the most in-demand treaments from one handpiece with 6pcs IPL filter

                         Ipl filter 2    ipl filter


The key benifit of our IPL SHR eqiupment

Advanced cooling system adjustable contact cooling for comfortable treatment

Water filter ensure smooth & clean water circulation, which prolong handpiece lifetime and whole system

 USB for convenient maintenance

IC card management control design. Apply operation system ( Android, RTL)


                           IPL SHR


SPECIFICATION

IPL SHR HAIR REMOVAL EQUIPMENT SPECIFICATIONS

Handpiece

1*IPL SHR/EPL

Spot size

12*35mm, 15*50mm

Wavelength

420~1200nm

Filter

420/510/560/610/640~1200nm,
690~950nm, SHR

IPL energy density

1~30J/cm2 (10~60 level)

repetition rate

1~5Hz

EPL RF output power

200W(optional)

Operate Interface

8" True color touch screen

Cooling system

Advanced Air & Water cooling system

Power supply

AC 110V or 230V, 50/60Hz

Dimension

HS-310: 63*46*42cm(L*W*H)

Weight

37Kgs
